Coordinate systems and basic geometric entities

Scope

  • Slides: pp. 9-18
  • Major topic folder: geometric-objects-notation-and-asymptotic-preliminaries
  • Recording files touching this material: CS 564 - 01.23 1.1.txt, CS 564 - 01.28 2.1.txt
  • Goal of this file: You should be able to study this topic without reopening the slide deck.

Big picture

This file is the foundation layer. The slides fix the language used everywhere else: what a point is, what a segment is, how a line is represented, and how dimension is written. If this part is shaky, later algorithms look magical when they are really just repeated uses of clean representations.

What you must know cold

  • Cartesian coordinates in d dimensions, and why d is part of the object model, not decoration.
  • Difference between a line, a line segment, and a point as geometric objects.
  • Parametric line equation and the meaning of restricting the parameter to [0,1] for a segment.
  • Plane and axis-parallel / rectilinear rectangles as standard objects used in search problems.

Core ideas and reasoning

  • A point in d-space is an ordered d-tuple. This is the data representation that lets algorithms compare, sort, and test geometry.
  • A line through p0 and p1 is represented parametrically as \(p(\alpha)=p_0+\alpha(p_1-p_0)\). The segment is the same expression with 0 ≤ α ≤ 1.
  • The parametric view is more useful than slope-intercept form in geometry algorithms because vertical lines do not need a special case.
  • Later primitive tests such as point-line classification and segment intersection reduce to this representation.

Figures to actually look at

These are cropped from the main slide PDF. Do not skip them.

Figure from slide p. 17

Figure from slide p. 17

Figure from slide p. 18

Figure from slide p. 18

Slide-by-slide digestion

p. 9 - Definitions

  • Coordinate systems and dimensions
  • The objects considered in Computational Geometry are points,
  • lines, line segments, polygons, polyhedron, hyper-rectangles,
  • etc.
  • A coordinate system provides a means to specify positions
  • or points in space.
  • The Cartesian coordinate system labels a d-dimensional space
  • with d mutually perpendicular (orthogonal) coordinate axes,
  • one per dimension.
  • d-dimensional space (d-space)

p. 10 - Definitions

  • Point
  • Object with d dimensions and 0 extent.
  • Location in d-space.
  • Given as an ordered sequence of d coordinates.
  • d = 1
  • (x) or x
  • d = 2
  • d = 3
  • (x, y, z)
  • d ≥4

p. 11 - Definitions

  • Segment
  • Finite 1-dimensional subset of a line,
  • determined by two endpoints p0, p1.
  • Ray
  • Infinite 1-dimensional subset of a line
  • determined by two points p0, p1 ∋p0 ≠p1,
  • where one point is denoted as the endpoint.

p. 12 - Point-Line classification

  • We now consider the geometric primitive operation of
  • classifying a point w.r.t. a line (both in the plane).
  • A directed line segment partitions the plane into 7
  • non-overlapping regions. The possibilities are shown below.
  • The problem, given p0, p1, and p2, is to determine which
  • region p2 lies in.
  • beyond
  • left
  • terminus
  • origin

p. 13 - Parametric equation of a line

  • We use the following equation of a line:
  • line = {α(p0) + (1 - α)(p1) }, where α ∈ ℜ(real numbers)
  • where p0 and p1 as usual are the points determining the line.
  • p0 = (x0, y0)
  • p1 = (x1, y1)
  • Substituting gives
  • {α(x0, y0) + (1 - α)(x1, y1) }
  • Multiplying through gives the coordinates
  • {αx0 + (1 - α)x1, αy0 + (1 - α)y1 }
  • W k

p. 14 - Line Segment

  • A line segment is a closed subset of a line
  • contained between two points which are
  • called the end points. The subset is closed in
  • the sense that it includes the end points.
  • The equation of the line segment is the same
  • as the parametric equation of a line with the
  • restriction that α has the value \(0 \le \alpha \le 1\).
  • This is also called the convex combination
  • of the two end points.

p. 15 - Explicit Form of Line Equation

  • y= mx +c
  • m=slope=tanθ, where θ is the angle
  • made by the line with positive x-axis
  • c=intercept of the line with the y-axis.
  • Vertical line with x=k cannot be represented
  • since these lines have infinite slopes.
  • Expressed in terms of the coordinates of two
  • points on the line (x1,y1) and (x2,y2), we can
  • write
  • y=[(y2-y1)/(x2-x1)] x + (y1x2 -y2x1)/(x2-x1)

p. 16 - can be specified as

  • Ax + By + C = 0
  • where A, B and C are constants. A
  • vertical line is simply a line with B=0.
  • Note the coefficients are not unique; for
  • a given constant k, kA, kB and kC will
  • give the same line.
  • In general, in a d-dimension, given a set
  • of k points p1, p2, .., pk, the set of points
  • p= α1 p1+ α2 p2+….+ ακ pk
  • such that the α−coefficients are real and

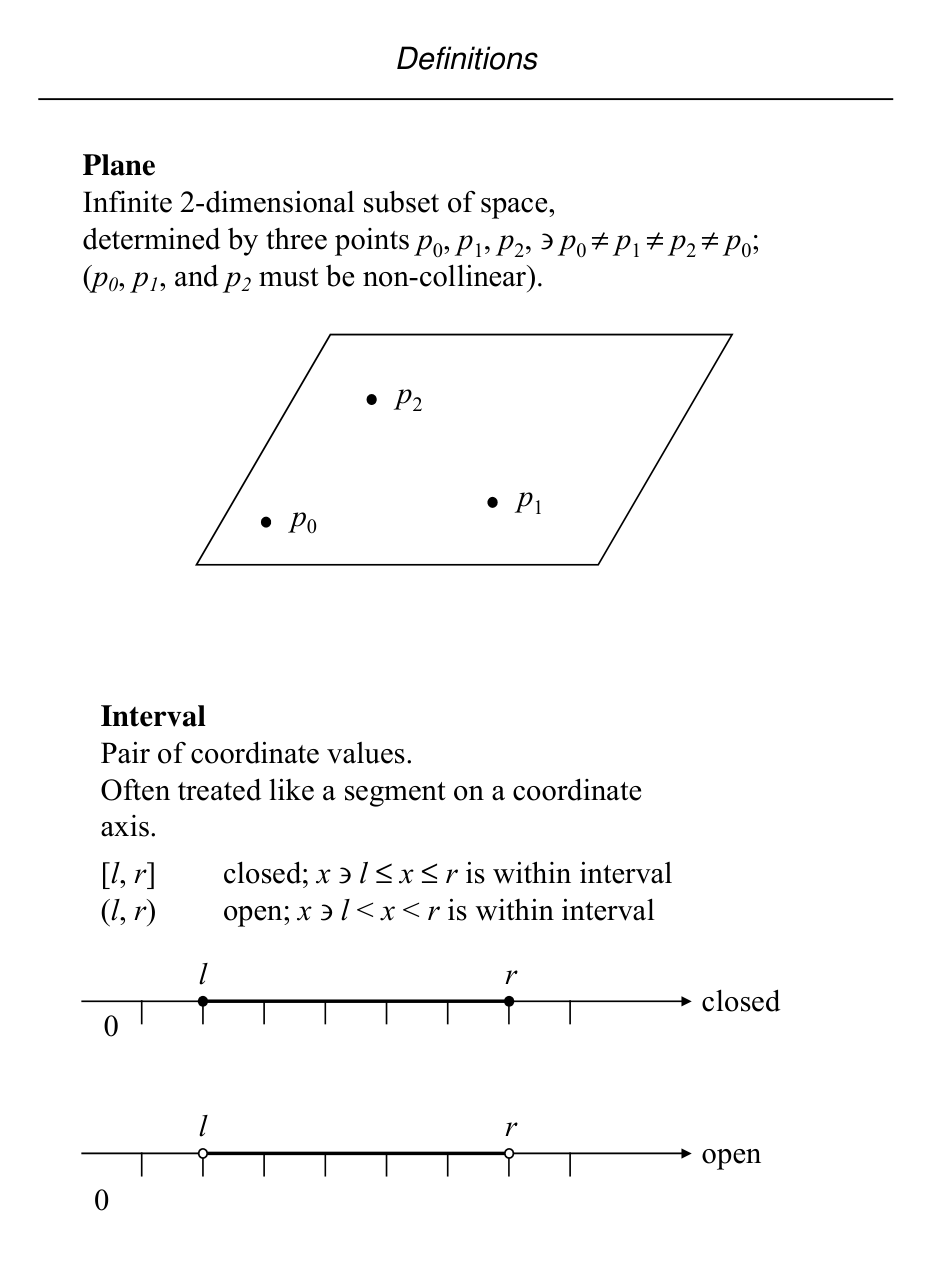

p. 17 - Definitions

  • Plane
  • Infinite 2-dimensional subset of space,
  • determined by three points p0, p1, p2, ∋ p0 ≠ p1 ≠ p2 ≠ p0;
  • (p0, p1, and p2 must be non-collinear).
  • Interval
  • Pair of coordinate values.
  • Often treated like a segment on a coordinate
  • axis.
  • [l, r]
  • closed; x ∋l ≤x ≤r is within interval

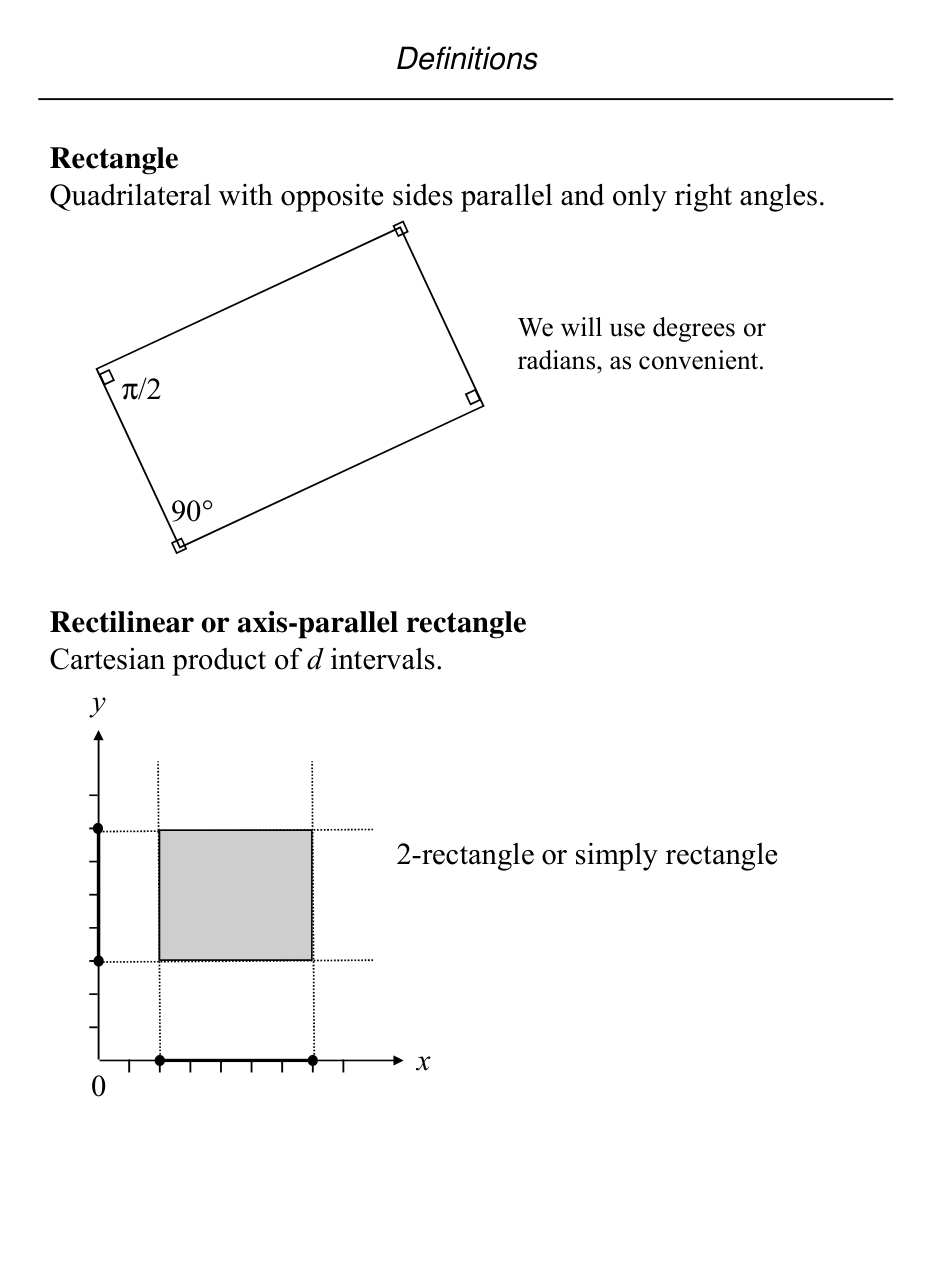

p. 18 - Definitions

  • Rectilinear or axis-parallel rectangle
  • Rectangle
  • Quadrilateral with opposite sides parallel and only right angles.
  • π/2
  • We will use degrees or
  • radians, as convenient.
  • Rectilinear or axis parallel rectangle
  • Cartesian product of d intervals.
  • 2-rectangle or simply rectangle

What you must be able to say or do in an exam

  • Give the precise definitions.
  • Distinguish similar notions cleanly.
  • Use the right primitive test or formula on a concrete example.

Complexity and performance facts

No main algorithm here. What matters is having constant-time primitive operations and a representation that avoids unnecessary case splits.

Common mistakes and danger points

  • Do not mix up affine combination (any real α) with convex combination (restricted coefficients).
  • Do not assume every line has a slope; vertical-line special cases are exactly why parametric form is preferred.

Exam-style drills and answer skeletons

Definition drill

Question. Give the precise definitions and the most important consequences from coordinate systems and basic geometric entities.

How to answer. A strong answer distinguishes similar objects and uses the course terminology exactly.

Recap

What you must know cold

  • Cartesian coordinates in d dimensions, and why d is part of the object model, not decoration.
  • Difference between a line, a line segment, and a point as geometric objects.
  • Parametric line equation and the meaning of restricting the parameter to [0,1] for a segment.
  • Plane and axis-parallel / rectilinear rectangles as standard objects used in search problems.

Core test / key idea

  • A point in d-space is an ordered d-tuple. This is the data representation that lets algorithms compare, sort, and test geometry.
  • A line through p0 and p1 is represented parametrically as \(p(\alpha)=p_0+\alpha(p_1-p_0)\). The segment is the same expression with 0 ≤ α ≤ 1.
  • The parametric view is more useful than slope-intercept form in geometry algorithms because vertical lines do not need a special case.
  • Later primitive tests such as point-line classification and segment intersection reduce to this representation.

Complexity

  • No main algorithm here. What matters is having constant-time primitive operations and a representation that avoids unnecessary case splits.

Common mistakes / danger points

  • Do not mix up affine combination (any real α) with convex combination (restricted coefficients).
  • Do not assume every line has a slope; vertical-line special cases are exactly why parametric form is preferred.

End-of-file summary

  • Cartesian coordinates in d dimensions, and why d is part of the object model, not decoration.
  • Difference between a line, a line segment, and a point as geometric objects.
  • Parametric line equation and the meaning of restricting the parameter to [0,1] for a segment.
  • No main algorithm here. What matters is having constant-time primitive operations and a representation that avoids unnecessary case splits.
  • Do not mix up affine combination (any real α) with convex combination (restricted coefficients).
  • Do not assume every line has a slope; vertical-line special cases are exactly why parametric form is preferred.
  • Next file in reading order: Polygonal geometry, convexity, planarity, and polyhedra
  • Source slide range: pp. 9-18 of comp_geometry_slides_new.pdf
  • Related recordings: CS 564 - 01.23 1.1.txt, CS 564 - 01.28 2.1.txt
  • Related homework-derived exam prompts included here: none directly mapped; generic exam drills added instead
