Polygonal geometry, convexity, planarity, and polyhedra

Scope

  • Slides: pp. 19-28
  • Major topic folder: geometric-objects-notation-and-asymptotic-preliminaries
  • Recording files touching this material: CS 564 - 01.23 1.1.txt, CS 564 - 01.28 2.1.txt
  • Goal of this file: You should be able to study this topic without reopening the slide deck.

Big picture

This section tells you what kinds of geometric structures the course is willing to call legal. A surprising amount of later correctness depends on these definitions being exact.

What you must know cold

  • Simple polygon vs non-simple polygon, and why only a simple closed curve gives a clean inside/outside notion.
  • Convex polygon definition in two equivalent forms: every internal segment stays inside, or every interior angle is less than π.
  • Planar graph, planar embedding, faces, and the intuition behind Euler-style counting.
  • Polyhedron and the analogue of simplicity / convexity in 3D.

Core ideas and reasoning

  • A polygon is not just the ordered list of vertices; it is the region bounded by the edges when the edges form a simple closed curve.
  • Convexity is a structural property, not a visual vibe. The segment test and the interior-angle test are the important equivalent formulations.
  • A planar embedding subdivides the plane into faces. This is what later point-location and DCEL algorithms are built on.
  • In 3D, the analogous objects are polyhedra and their faces, edges, and vertices.

Figures to actually look at

These are cropped from the main slide PDF. Do not skip them.

Figure from slide p. 22

Figure from slide p. 22

Figure from slide p. 28

Figure from slide p. 28

Slide-by-slide digestion

p. 19 - Definitions

  • Dimensional prefixes on geometric object names
  • No prefix “d-” means usual or expected number of dimensions
  • for the object.
  • rectangle = 2-rectangle
  • cube = 3-cube
  • Prefix “hyper-” means d is unspecified and it may be more than
  • the usual number of dimensions for that object.
  • hyper-rectangle = d-rectangle, d unspecified
  • “d-dimensional rectilinear hyper-rectangle”

p. 20 - Definitions

  • Polygons
  • O’Rourke, pp. 1-2
  • A polygon is the region of a plane bounded by a finite set of
  • segments forming a simple closed curve.
  • (Note that we are working in d = 2 by definition.)
  • Let v0, v1, ..., vN-1 be N points in the plane; the points are
  • called vertices.
  • Let e0 = v0v1, e1 = v1v2, ..., eN-1 = vN-1v0 be N segments
  • connecting the points; the segments are called edges.
  • The edges bound a polygon iff the intersection of each pair

p. 21 - Definitions

  • Interior and exterior
  • Jordan curve theorem. Every simple closed plane curve
  • divides the plane into two parts.
  • Exterior
  • Interior
  • Boundary
  • Polygon = interior ∪boundary
  • If we are interested in just the interior or just the boundary,
  • they will be referred to as such.
  • (Same as true for other similar objects, e.g., rectangle.)

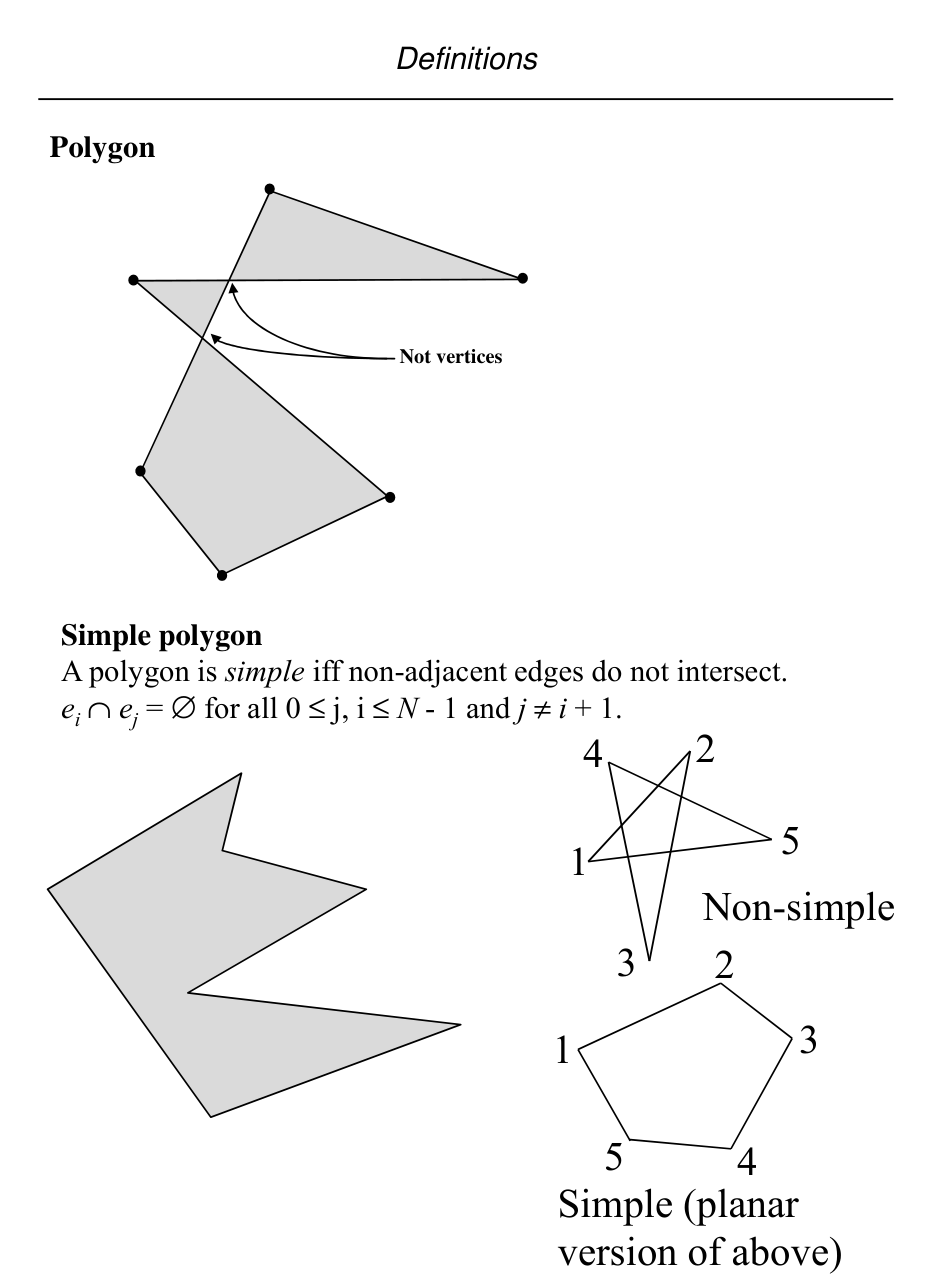

p. 22 - Definitions

  • Polygon
  • Not vertices
  • Simple polygon
  • A polygon is simple iff non-adjacent edges do not intersect.
  • ei ∩ej = ∅for all 0 ≤j, i ≤N - 1 and j ≠i + 1.
  • Non-simple
  • Simple (planar
  • version of above)

p. 23 - Definitions

  • In computational geometry, the relative geometric positions
  • matter, the edges do not correspond to abstract relations, as
  • in Graph Theory.
  • Convex polygon
  • A polygon is convex if and only if for any two points in the
  • polygon (interior ∪ boundary), the segment connecting the points
  • is entirely within the polygon.
  • convex
  • not convex

p. 24 - Convex Set

  • Let p and q be two arbitrary points in a
  • d-dimensional Euclidean space belonging
  • to a set of points C. Then C is said to be
  • convex if for all pairs (p, q) in C, the set
  • of points
  • [p + (1- α)q] ε C for \(0 \le \alpha \le 1\)
  • That is, if two points p and q belong to C,
  • then the set of points on the line segments
  • connecting p and q also belong to C.
  • When d=2, the points belong to a convex

p. 25 - Planar Graph

  • A graph G(V,E) is planar if it can be embedded
  • in a plane without crossings.
  • A straight line planar embedding of a planar
  • graph determines a partition of the plane called
  • planar subdivisions or a map.
  • Let v= number of vertices, e= number of
  • edges and f=number of faces.
  • Theorem (Euler) : v - e + f = 2
  • Proof: A simple polygon has always v=e and
  • f=2 (interior and exterior).

p. 26 - creates one extra face. v remains same, e becomes

  • e+1 and f becomes f+1. So the equation remains
  • valid. If a chain is used with t new vertices and
  • necessarily with t+1 edges, we have v becomes
  • v+t, e becomes e+t+1 and f becomes f+1. So, the
  • Euler’s formula still remains valid.
  • chord
  • chain
  • It can also be shown that for any planar graph,
  • e <= 3v -6. Using Euler’s formula, we then
  • have f <= 2/3 e and f <= 2v-4, giving the upper

p. 27 - Polyhedron

  • In 3-d Euclidean space, a polyhedron is defined
  • to be a finite set of planar polygons such that every
  • edge of the polygon is shared by exactly one other
  • neighboring polygon and no subset of polygons
  • has the same property (to avoid union of polygons).
  • Edges and vertices have usual meaning. The
  • polygons are called the facets of the polyhedron.
  • A polyhedron is simple if there is no pair of
  • non-adjacent facets sharing a point. A simple
  • polyhedron partitions the 3-d space into two

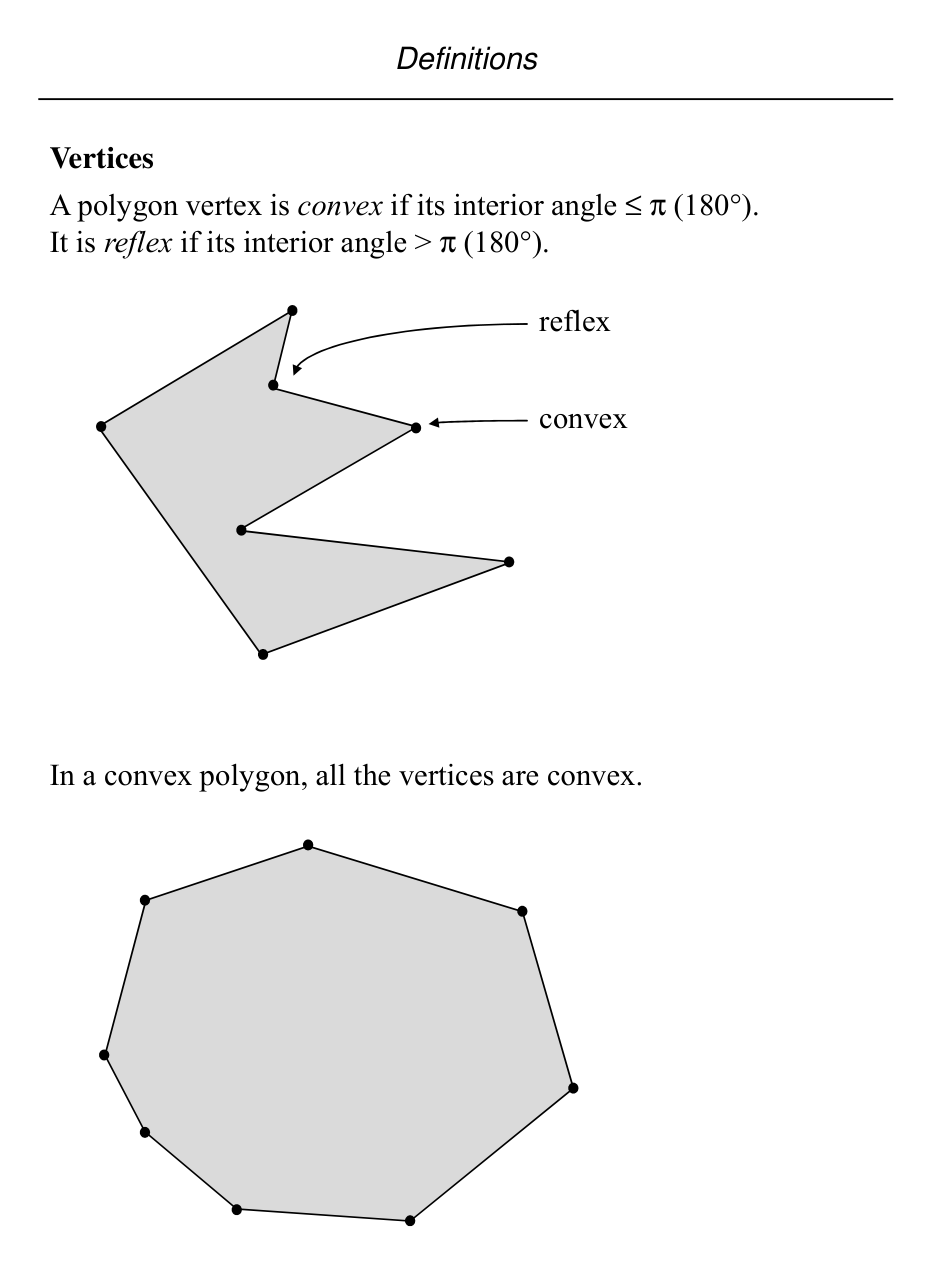

p. 28 - Definitions

  • Vertices
  • A polygon vertex is convex if its interior angle ≤ π (180°).
  • It is reflex if its interior angle > π (180°).
  • convex
  • In a convex polygon, all the vertices are convex.

What you must be able to say or do in an exam

  • Give the precise definitions.
  • Distinguish similar notions cleanly.
  • Use the right primitive test or formula on a concrete example.

Complexity and performance facts

No main complexity result, but this section sets up the combinatorial objects that later algorithms store and search.

Common mistakes and danger points

  • A self-intersecting polygon does not have a clean single interior in the sense used by these algorithms.
  • Do not use “planar graph” and “specific straight-line embedding” as synonyms. The embedding matters.

Exam-style drills and answer skeletons

Definition drill

Question. Give the precise definitions and the most important consequences from polygonal geometry, convexity, planarity, and polyhedra.

How to answer. A strong answer distinguishes similar objects and uses the course terminology exactly.

Recap

What you must know cold

  • Simple polygon vs non-simple polygon, and why only a simple closed curve gives a clean inside/outside notion.
  • Convex polygon definition in two equivalent forms: every internal segment stays inside, or every interior angle is less than π.
  • Planar graph, planar embedding, faces, and the intuition behind Euler-style counting.
  • Polyhedron and the analogue of simplicity / convexity in 3D.

Core test / key idea

  • A polygon is not just the ordered list of vertices; it is the region bounded by the edges when the edges form a simple closed curve.
  • Convexity is a structural property, not a visual vibe. The segment test and the interior-angle test are the important equivalent formulations.
  • A planar embedding subdivides the plane into faces. This is what later point-location and DCEL algorithms are built on.
  • In 3D, the analogous objects are polyhedra and their faces, edges, and vertices.

Complexity

  • No main complexity result, but this section sets up the combinatorial objects that later algorithms store and search.

Common mistakes / danger points

  • A self-intersecting polygon does not have a clean single interior in the sense used by these algorithms.
  • Do not use “planar graph” and “specific straight-line embedding” as synonyms. The embedding matters.

End-of-file summary

  • Simple polygon vs non-simple polygon, and why only a simple closed curve gives a clean inside/outside notion.
  • Convex polygon definition in two equivalent forms: every internal segment stays inside, or every interior angle is less than π.
  • Planar graph, planar embedding, faces, and the intuition behind Euler-style counting.
  • No main complexity result, but this section sets up the combinatorial objects that later algorithms store and search.
  • A self-intersecting polygon does not have a clean single interior in the sense used by these algorithms.
  • Do not use “planar graph” and “specific straight-line embedding” as synonyms. The embedding matters.
