Computational models and complexity language

Scope

  • Slides: pp. 29-37
  • Major topic folder: geometric-objects-notation-and-asymptotic-preliminaries
  • Recording files touching this material: CS 564 - 01.23 1.1.txt, CS 564 - 01.28 2.1.txt
  • Goal of this file: You should be able to study this topic without reopening the slide deck.

Big picture

This is the meta-language for the entire midterm. Nearly every proof or comparison later says preprocessing, query time, output size, or worst case. This file is where those words are defined precisely.

What you must know cold

  • Problem vs algorithm. Lower bounds belong to problems, not to your current favorite algorithm.
  • Asymptotic notation as set-based growth classes, used to compare algorithms.
  • Different cost components: preprocessing, storage, single query time, total reporting time.
  • Difference between counting problems and reporting problems, and why output size matters.

Core ideas and reasoning

  • Geometric data structures often spend time up front to organize a static set, then answer many queries fast.
  • For reporting problems the true running time is often something like O(f(n) + k), where k is the number of reported answers.
  • Worst-case analysis is the default unless the slides or theorem explicitly say average / expected.

Figures to actually look at

These are cropped from the main slide PDF. Do not skip them.

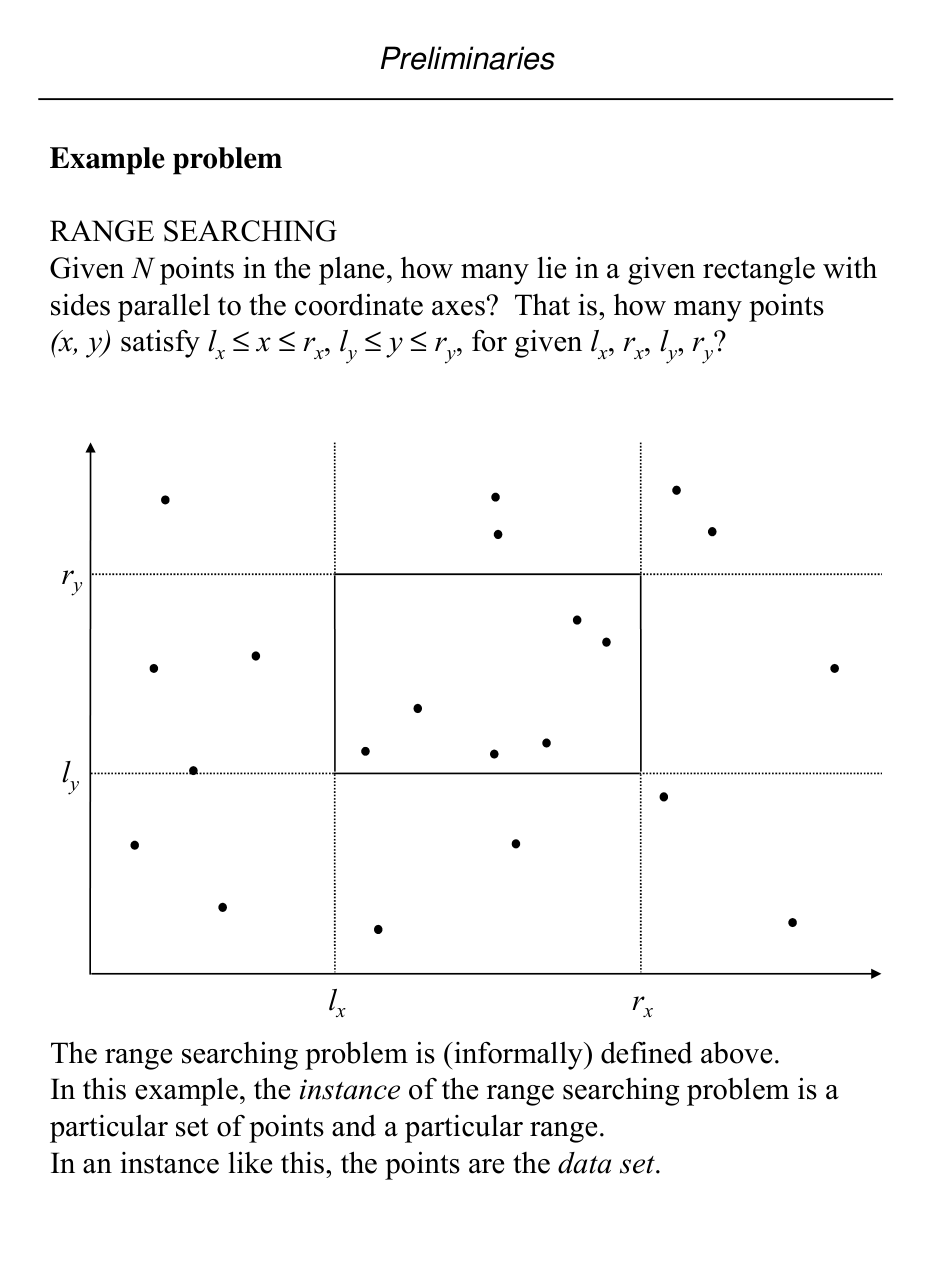

Figure from slide p. 29

Figure from slide p. 29

Figure from slide p. 32

Figure from slide p. 32

Slide-by-slide digestion

p. 29 - Example problem

  • RANGE SEARCHING
  • Given N points in the plane, how many lie in a given rectangle with
  • sides parallel to the coordinate axes? That is, how many points
  • (x, y) satisfy lx ≤x ≤rx, ly ≤y ≤ry, for given lx, rx, ly, ry?
  • The range searching problem is (informally) defined above.
  • In this example, the instance of the range searching problem is a
  • particular set of points and a particular range.
  • In an instance like this, the points are the data set.

p. 30 - Algorithms and models of computation

  • We are interested in efficient algorithms for geometric problems.
  • Efficiency is evaluated in terms of computational cost,
  • given as a function of the size of the instance of the problem.
  • By convention, notation N denotes input instance size.
  • To determine the computational cost of an algorithm,
  • we must know what primitive operations are available and
  • what they cost. This is a model of computation.
  • Turing machine: too primitive
  • C language on Unix workstation: too specific
  • We will use a highly abstract model, the familiar random-access

p. 31 - Order notation

  • We are interested in the amount of time and memory used by
  • algorithms, as a function of the input instance size N.
  • “Worst case” or Upper bound
  • O(f(N)) denotes the set of all functions g(N) such that there exist
  • positive constants C and N0 with g(N) ≤Cf(N) for all N ≥ N0.
  • “Best case” or Lower Bound
  • Ω(f(N)) denotes the set of all functions g(N) such that there exist
  • positive constants C and N0 with g(N) ≥Cf(N) for all N ≥ N0.
  • “Optimal case” Or Optimal Bound
  • θ(f(N)) denotes the set of all functions g(N) such that there exist

p. 32 - Example analysis

  • SEGMENT INTERSECTION COUNTING
  • INSTANCE: Set S = {s1, s2, ..., sN} of line segments in the plane.
  • QUESTION: Count the number of intersections of segments in S.

p. 33 - Example analysis

  • SEGMENT INTERSECTION COUNTING
  • INSTANCE: Set S = {s1, s2, ..., sN} of line segments in the plane.
  • QUESTION: Count the number of intersections of segments in S.
procedure SegmentIntersectionCounting(S)
begin
  count ← 0
  for i ← 1 to N do
    for j ← 1 to N do
      if i ≠ j and segment s_i intersects s_j then
        count ← count + 1
  return count / 2   { unordered segment pairs; adjust if slides count ordered pairs }
end

p. 34 - Algorithmic complexity measures

  • Preprocessing. Time spent organizing the data set, usually into
  • some data structure. Less important than query and storage.
  • Query. Time spent producing the answer for a query relative to
  • the data set.
  • Storage. Memory required for static and dynamic data structures
  • used by the query algorithm.
  • Single shot vs. repetitive-mode
  • Single shot. Given a single data set and a single query, produce an
  • answer one time. Almost always best handled by scan of data
  • set; no preprocessing, query O(N), storage O(N).

p. 35 - Counting vs. reporting

  • Counting. Determine the number of objects in the data set that
  • satisfy the query.
  • Reporting. Report (list, identify) the objects that satisfy the
  • query.
  • For example, consider the standard range search problem:
  • RANGE SEARCHING.
  • INSTANCE: Set S = {p1, p2, ..., pN}, pi = (xi, yi) of points in the
  • plane, and rectangle R = [lx, rx] × [ly, ry] in the plane.
  • Preliminaries
  • [ x,

p. 36 - Output sensitive or report-mode algorithms

  • The time complexity of algorithms is often expressed as a
  • function of input data set size, e.g. O(N log N). Reporting
  • problems can have query time complexity that is output sensitive.
  • Output-sensitive example
  • INTERVAL ENCLOSURE
  • INSTANCE: Set S = {x1, x2, ..., xN} of points on the
  • number line (x-axis), and an interval Q = [l, r].
  • QUESTION: Which points of S are within Q, i.e. l ≤xi ≤ r?
  • Naive repetitive mode algorithm and analysis.
  • Preliminaries

p. 37 - Average Complexity: observed complexity in

  • practice.
  • Space or Storage Complexity.
  • Pre-processing Cost: trade-off between space
  • and time complexity with or without
  • pre-processing.
  • Amortized Cost: average over expensive and
  • inexpensive operations.
  • Normalization
  • It will sometimes be useful to have available normalized
  • values for coordinates. For a coordinate value x, its

What you must be able to say or do in an exam

  • Give the precise definitions.
  • Distinguish similar notions cleanly.
  • Use the right primitive test or formula on a concrete example.

Complexity and performance facts

This section is itself complexity language: separate preprocessing, storage, and query complexity whenever you describe a data structure.

Common mistakes and danger points

  • Do not write “the lower bound of Graham scan is …”. Lower bounds are for convex hull as a problem.
  • Do not forget output size when a query reports many objects.

Exam-style drills and answer skeletons

Definition drill

Question. Give the precise definitions and the most important consequences from computational models and complexity language.

How to answer. A strong answer distinguishes similar objects and uses the course terminology exactly.

Recap

What you must know cold

  • Problem vs algorithm. Lower bounds belong to problems, not to your current favorite algorithm.
  • Asymptotic notation as set-based growth classes, used to compare algorithms.
  • Different cost components: preprocessing, storage, single query time, total reporting time.
  • Difference between counting problems and reporting problems, and why output size matters.

Core test / key idea

  • Geometric data structures often spend time up front to organize a static set, then answer many queries fast.
  • For reporting problems the true running time is often something like O(f(n) + k), where k is the number of reported answers.
  • Worst-case analysis is the default unless the slides or theorem explicitly say average / expected.

Complexity

  • This section is itself complexity language: separate preprocessing, storage, and query complexity whenever you describe a data structure.

Common mistakes / danger points

  • Do not write “the lower bound of Graham scan is …”. Lower bounds are for convex hull as a problem.
  • Do not forget output size when a query reports many objects.

End-of-file summary

  • Problem vs algorithm. Lower bounds belong to problems, not to your current favorite algorithm.
  • Asymptotic notation as set-based growth classes, used to compare algorithms.
  • Different cost components: preprocessing, storage, single query time, total reporting time.
  • This section is itself complexity language: separate preprocessing, storage, and query complexity whenever you describe a data structure.
  • Do not write “the lower bound of Graham scan is …”. Lower bounds are for convex hull as a problem.
  • Do not forget output size when a query reports many objects.
