Segment trees as a warm-up search structure

Scope

  • Slides: pp. 38-44
  • Major topic folder: geometric-objects-notation-and-asymptotic-preliminaries
  • Recording files touching this material: CS 564 - 01.23 1.1.txt, CS 564 - 01.28 2.1.txt
  • Goal of this file: You should be able to study this topic without reopening the slide deck.

Big picture

Segment trees appear early as a warm-up, but they quietly become a template for later structures like range trees. You need both the representation and the standard-interval decomposition idea.

What you must know cold

  • Rooted binary tree over an interval domain, with each node storing a standard interval.
  • Insertion of an interval by decomposing it into O(log n) standard intervals.
  • Deletion as the reverse maintenance operation.
  • How this becomes a search structure rather than just a tree drawing.

Core ideas and reasoning

  • The key abstraction is that an arbitrary interval is represented by a small set of canonical node intervals.
  • Insertion walks the tree and allocates the query interval to nodes whose scopes are fully covered and as large as possible.
  • This decomposition is what later lets other structures answer queries by visiting only logarithmically many regions.

Figures to actually look at

These are cropped from the main slide PDF. Do not skip them.

Figure from slide p. 39

Figure from slide p. 39

Figure from slide p. 41

Figure from slide p. 41

Slide-by-slide digestion

p. 38 - Segment Tree

  • A segment tree is a rooted binary tree that stores data intervals on
  • the real line whose extremes (endpoints) belong to a fixed set of
  • N abscissae (x-values). It is the set of x-values from which the
  • endpoints are chosen that is fixed, not the intervals themselves.
  • The tree structure in which the intervals are stored is defined for
  • a scope interval [l, r]. For a given [l, r] there is exactly one
  • segment tree structure. The data intervals are stored within the
  • fixed tree. We will assume WLOG that the data interval endpoints
  • have been normalized to [1, N] and the tree has been built for
  • scope interval [1, N].

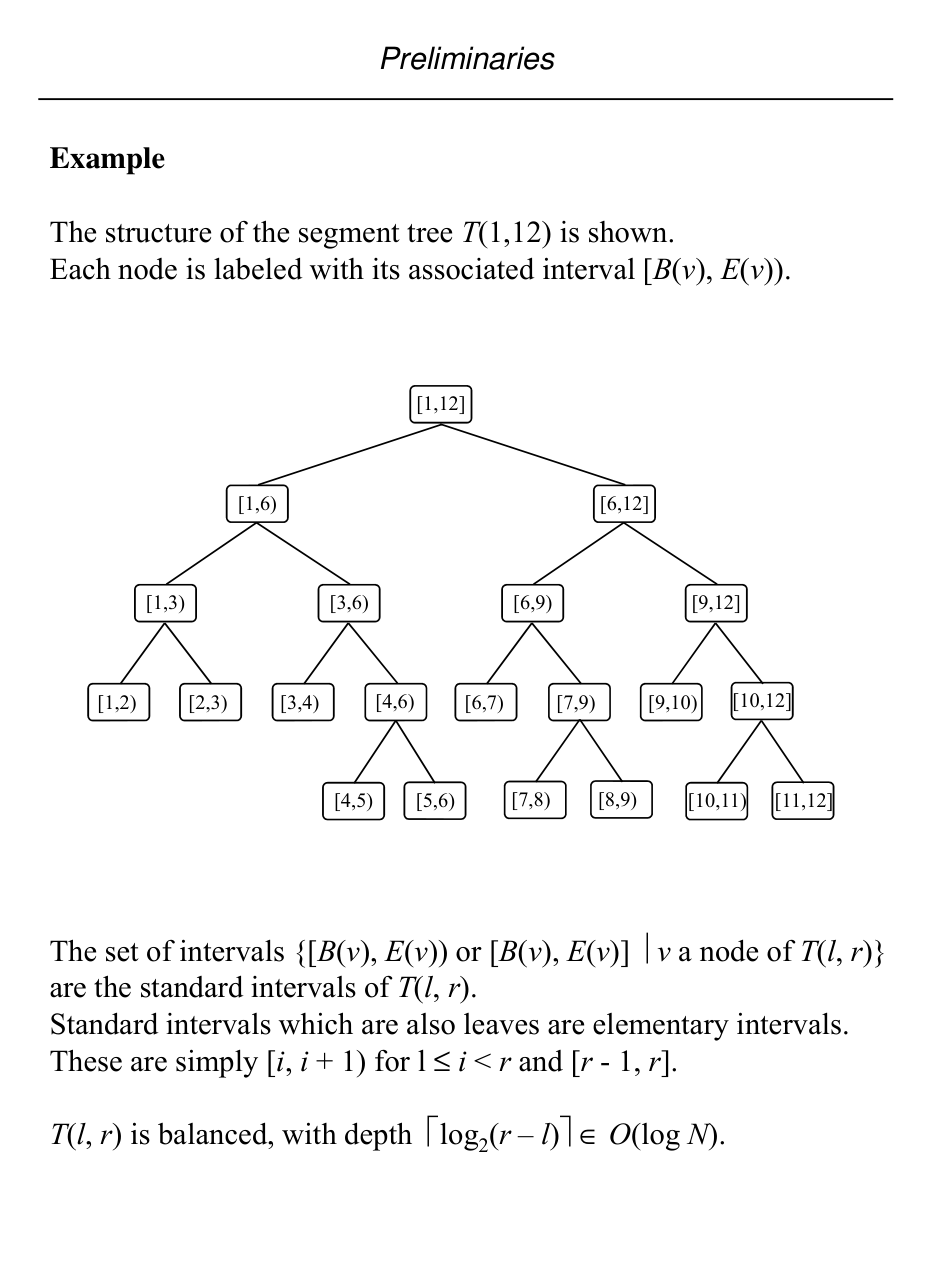

p. 39 - Example

  • The structure of the segment tree T(1,12) is shown.
  • Each node is labeled with its associated interval [B(v), E(v)).
  • Preliminaries
  • The set of intervals {[B(v), E(v)) or [B(v), E(v)] v a node of T(l, r)}
  • are the standard intervals of T(l, r).
  • Standard intervals which are also leaves are elementary intervals.
  • These are simply [i, i + 1) for l ≤i < r and [r - 1, r].
  • T(l, r) is balanced, with depth log2(r – l)∈O(log N).

p. 40 - Insertion

  • The segment tree structure supports insertions and deletions of
  • intervals with endpoints ∈{l, l + 1, l + 2, ..., r}, in
  • O(log N) time per operation.
  • For r - l > 3, an arbitrary interval [b, e] inserted into T(l, r) will
  • be partitioned into and “allocated” as a collection of standard
  • intervals of T(l, r).
  • There will be at most ( log2(r – 1)+ log2(r – 1)- 2) ∈ O(log N)
  • standard intervals in the partition.
  • Preliminaries
  • To insert interval [b, e] into segment tree T:

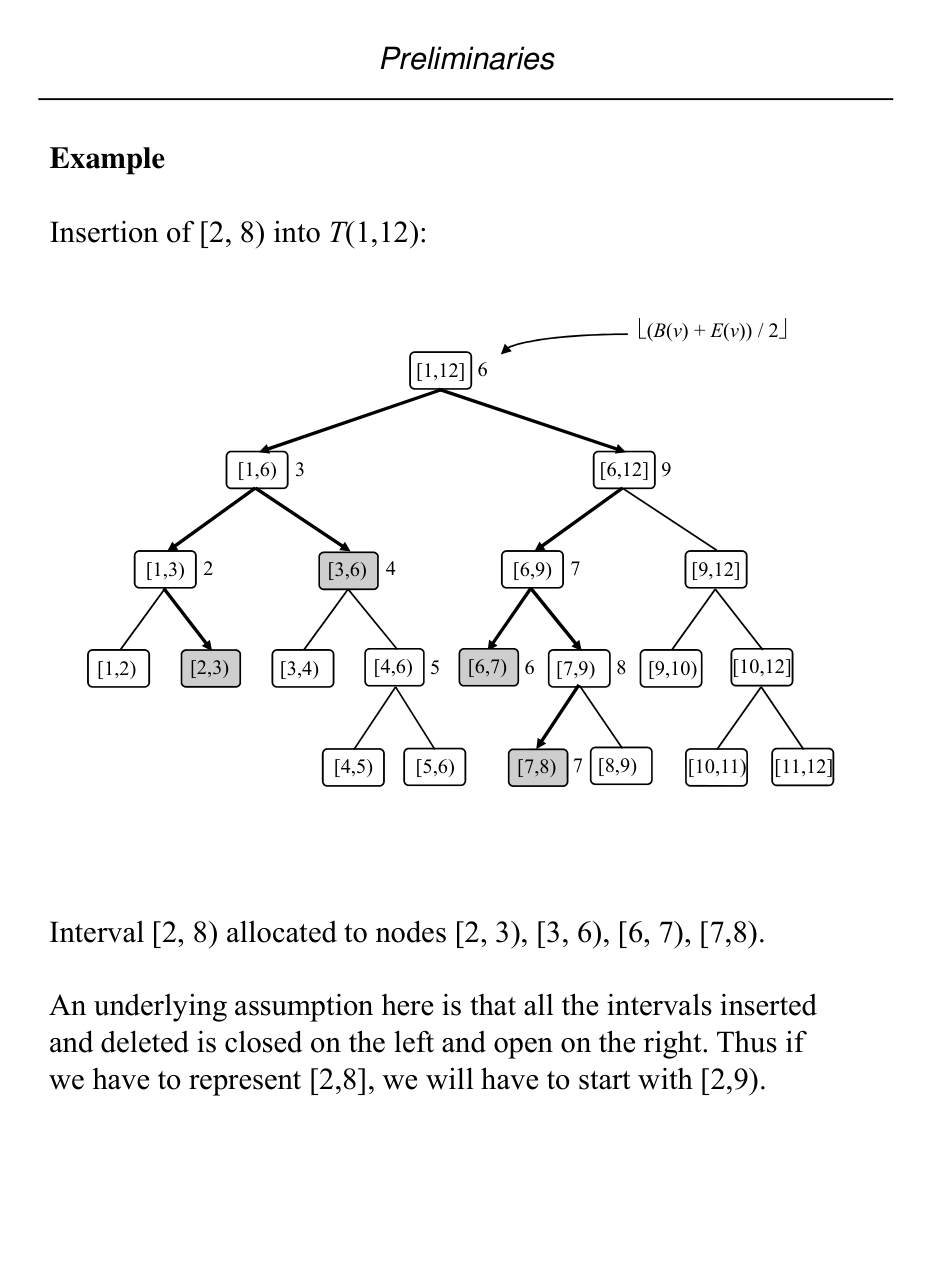

p. 41 - Example

  • Insertion of [2, 8) into T(1,12):
  • (B(v) + E(v)) / 2
  • Preliminaries
  • Interval [2, 8) allocated to nodes [2, 3), [3, 6), [6, 7), [7,8).
  • An underlying assumption here is that all the intervals inserted
  • and deleted is closed on the left and open on the right. Thus if
  • we have to represent [2,8], we will have to start with [2,9).

p. 42 - Insertion

  • This slide is mainly visual. Use the figure crop in this file and make sure you can explain what the diagram is showing.

p. 43 - Insertion

  • This slide is mainly visual. Use the figure crop in this file and make sure you can explain what the diagram is showing.

p. 44 - Deletion

  • Deletion is symmetric with insertion.
  • To delete interval [b, e] from segment tree T:
  • DeleteSegmentTree(b, e, root(T))
procedure DeleteSegmentTree(b, e, v)
begin
  if [b, e) fully covers standard interval [B(v), E(v)) then
    remove [b, e] from auxiliary set A(v)
  if v is a leaf then
    return
  mid ← ⌊(B(v) + E(v)) / 2⌋
  if b < mid then
    DeleteSegmentTree(b, e, left_child(v))
  if e > mid then
    DeleteSegmentTree(b, e, right_child(v))
end

What you must be able to say or do in an exam

  • State the input, output, preprocessing, and query/update model precisely.
  • Explain the invariant or ordering that makes the method work.
  • Trace the method by hand on a small example.
  • Give the exact time and space bounds.
  • Mention one edge case, degeneracy, or limitation.

Complexity and performance facts

Typical allocation/search cost is O(log n) nodes per interval decomposition, with linear or near-linear space depending on what is stored per node.

Common mistakes and danger points

  • Students often confuse the query interval with a node interval. The tree stores standard intervals; your input interval is decomposed into them.
  • Use the course convention for closed/half-open intervals consistently. Sloppy endpoints break proofs.

Exam-style drills and answer skeletons

Existing drill reminders from the earlier pack: - Prove the maximum number of standard intervals allocated to an interval in a segment tree, then give a worst-case example. - Trace the allocation of a specific interval into a perfect segment tree and justify each visited node. - Adapted from HW1-Q5: Show the maximum number of standard intervals allocated to a query interval in a segment tree and give a worst-case example for T(1,16).

HW1-Q5 adapted

Question. Given a segment tree T(l,r), state the maximum number of standard intervals allocated to one interval [b,e], justify the formula, and give an example for T(1,16).

How to answer. Answer by tracing canonical decomposition from the two search paths to b and e. The bound comes from the number of complete sibling subtrees collected on the left and right search paths.

Core exam drill

Question. State the problem solved by segment trees as a warm-up search structure, describe preprocessing/query/update steps if any, and give the time and space bounds.

How to answer. An excellent answer names the input, the output, the invariant or ordering exploited by the method, and the exact asymptotic costs.

Hand-trace drill

Question. Trace segment trees as a warm-up search structure on a small example by hand and explain each comparison or structural change.

How to answer. On this course, being able to run the method on a picture matters more than writing vague slogans.

Recap

What you must know cold

  • Rooted binary tree over an interval domain, with each node storing a standard interval.
  • Insertion of an interval by decomposing it into O(log n) standard intervals.
  • Deletion as the reverse maintenance operation.
  • How this becomes a search structure rather than just a tree drawing.

Core test / key idea

  • The key abstraction is that an arbitrary interval is represented by a small set of canonical node intervals.
  • Insertion walks the tree and allocates the query interval to nodes whose scopes are fully covered and as large as possible.
  • This decomposition is what later lets other structures answer queries by visiting only logarithmically many regions.

Complexity

  • Typical allocation/search cost is O(log n) nodes per interval decomposition, with linear or near-linear space depending on what is stored per node.

Common mistakes / danger points

  • Students often confuse the query interval with a node interval. The tree stores standard intervals; your input interval is decomposed into them.
  • Use the course convention for closed/half-open intervals consistently. Sloppy endpoints break proofs.

End-of-file summary

  • Rooted binary tree over an interval domain, with each node storing a standard interval.
  • Insertion of an interval by decomposing it into O(log n) standard intervals.
  • Deletion as the reverse maintenance operation.
  • Typical allocation/search cost is O(log n) nodes per interval decomposition, with linear or near-linear space depending on what is stored per node.
  • Students often confuse the query interval with a node interval. The tree stores standard intervals; your input interval is decomposed into them.
  • Use the course convention for closed/half-open intervals consistently. Sloppy endpoints break proofs.
