Planar straight-line graphs and face-edge structure

Scope

  • Slides: pp. 45-46
  • Major topic folder: pslgs-dcels-vectors-and-geometric-primitives
  • Recording files touching this material: CS 564 - 01.23 1.2.txt, CS 564 - 01.30 3.1.txt
  • Goal of this file: You should be able to study this topic without reopening the slide deck.

Big picture

A PSLG is the bridge between graph theory and geometry. It is not enough to know the adjacency graph; the embedding in the plane matters because faces, incidence, and point location all depend on it.

What you must know cold

  • Formal definition of a planar straight-line graph: vertices as points, edges as straight segments, no crossings except shared endpoints.
  • Vertices, edges, faces, and the idea that coordinates are part of the representation.
  • Why PSLGs are the natural input model for planar search and subdivision problems.

Core ideas and reasoning

  • The same abstract planar graph can have different embeddings, but a PSLG fixes one geometric embedding.
  • Faces are induced by the embedding. That is why later algorithms can ask “which face contains q?”.

Figures to actually look at

These are cropped from the main slide PDF. Do not skip them.

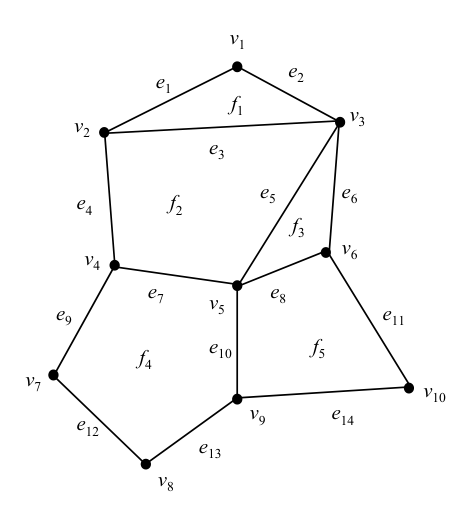

Figure from slide p. 45

Figure from slide p. 45

Figure from slide p. 46

Figure from slide p. 46

Slide-by-slide digestion

p. 45 - Slide p. 45

  • This slide is mainly visual. Use the figure crop in this file and make sure you can explain what the diagram is showing.

p. 46 - Planar straight line graph

  • A planar straight line graph (PSLG) is a planar embedding
  • of a planar graph G = (V, E) with:
    1. each vertex v ∈V mapped to a distinct point in the plane,
    1. and each edge e ∈E mapped to a segment between the
  • between the points for the endpoint vertices of the edge
  • such that no two segments intersect, except at their endpoints.

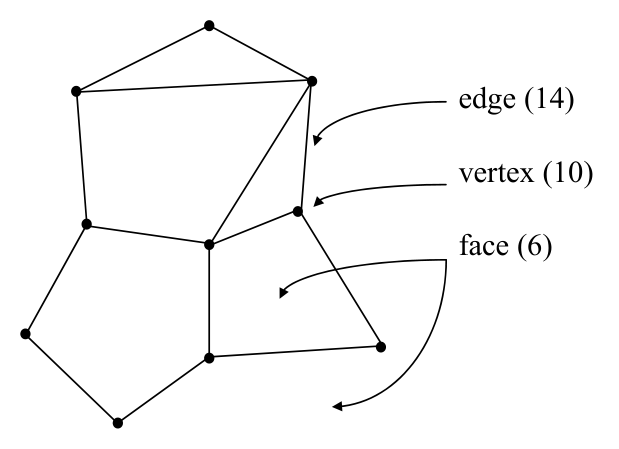

  • edge (14)
  • vertex (10)
  • face (6)
  • Observe that PSLG is defined by mapping a mathematical object

What you must be able to say or do in an exam

  • Give the precise definitions.
  • Distinguish similar notions cleanly.
  • Use the right primitive test or formula on a concrete example.

Complexity and performance facts

Representation issue more than algorithmic issue.

Common mistakes and danger points

  • Do not forget the no-crossing condition except at common endpoints.
  • Do not treat a PSLG as just an undirected graph; geometric incidence is part of the object.

Exam-style drills and answer skeletons

Existing drill reminders from the earlier pack: - Use Euler’s formula and degree/face counting to derive inequalities for a PSLG. - Explain why a triangulated PSLG satisfies e = 3v - 6 under the standard assumptions. - Adapted from HW1-Q4: Using Euler’s formula, prove standard inequalities for a PSLG with minimum degree at least 3; also prove e = 3v - 6 for triangulated PSLGs.

HW1-Q4 adapted

Question. Starting from Euler's formula, derive the standard inequalities for a PSLG with minimum degree at least 3, and explain why triangulated PSLGs satisfy e = 3v - 6.

How to answer. Use degree counting, face-edge counting, and Euler's formula together. Keep the assumptions straight: the minimum-degree assumption is used for some inequalities, but triangulated graphs can contain degree-2 vertices.

Definition drill

Question. Give the precise definitions and the most important consequences from planar straight-line graphs and face-edge structure.

How to answer. A strong answer distinguishes similar objects and uses the course terminology exactly.

Recap

What you must know cold

  • Formal definition of a planar straight-line graph: vertices as points, edges as straight segments, no crossings except shared endpoints.
  • Vertices, edges, faces, and the idea that coordinates are part of the representation.
  • Why PSLGs are the natural input model for planar search and subdivision problems.

Core test / key idea

  • The same abstract planar graph can have different embeddings, but a PSLG fixes one geometric embedding.
  • Faces are induced by the embedding. That is why later algorithms can ask “which face contains q?”.

Complexity

  • Representation issue more than algorithmic issue.

Common mistakes / danger points

  • Do not forget the no-crossing condition except at common endpoints.
  • Do not treat a PSLG as just an undirected graph; geometric incidence is part of the object.

End-of-file summary

  • Formal definition of a planar straight-line graph: vertices as points, edges as straight segments, no crossings except shared endpoints.
  • Vertices, edges, faces, and the idea that coordinates are part of the representation.
  • Why PSLGs are the natural input model for planar search and subdivision problems.
  • Representation issue more than algorithmic issue.
  • Do not forget the no-crossing condition except at common endpoints.
  • Do not treat a PSLG as just an undirected graph; geometric incidence is part of the object.
