DCEL representation and auxiliary structures

Scope

  • Slides: pp. 47-51
  • Major topic folder: pslgs-dcels-vectors-and-geometric-primitives
  • Recording files touching this material: CS 564 - 01.23 1.2.txt, CS 564 - 01.30 3.1.txt
  • Goal of this file: You should be able to study this topic without reopening the slide deck.

Big picture

The DCEL is the workhorse representation for planar subdivisions. If the professor asks you to actually manipulate a subdivision, this is the structure you are expected to think in.

What you must know cold

  • Each edge record stores origin, destination, left face, right face, and predecessor/successor-style incidence links.
  • How to recover vertex-incidence and face-boundary information from the records.
  • How auxiliary arrays for vertices/faces support traversal.
  • Why DCEL is a representation for embeddings, not just connectivity.

Core ideas and reasoning

  • The orientation of an edge record matters because left-face and right-face fields depend on it.
  • Traversing around a face or around a vertex is done by following linked incidence pointers, not by rescanning all edges.
  • Many exam/homework questions on DCEL reduce to building the correct dual or incidence traversal.

Figures to actually look at

These are cropped from the main slide PDF. Do not skip them.

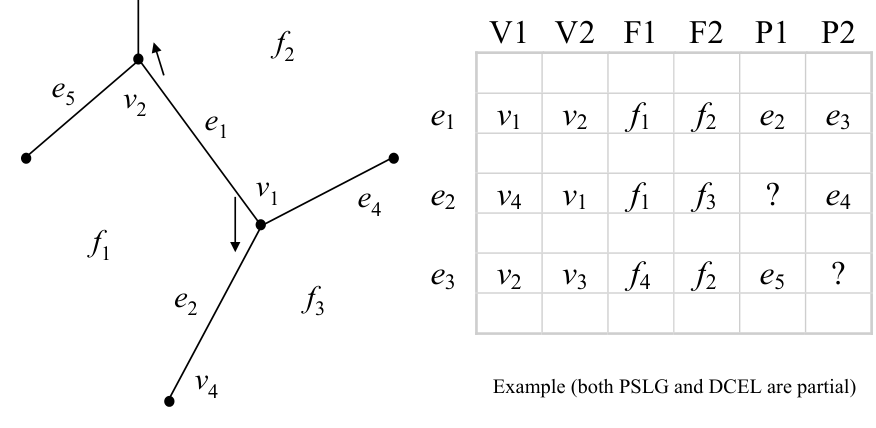

Figure from slide p. 47

Figure from slide p. 47

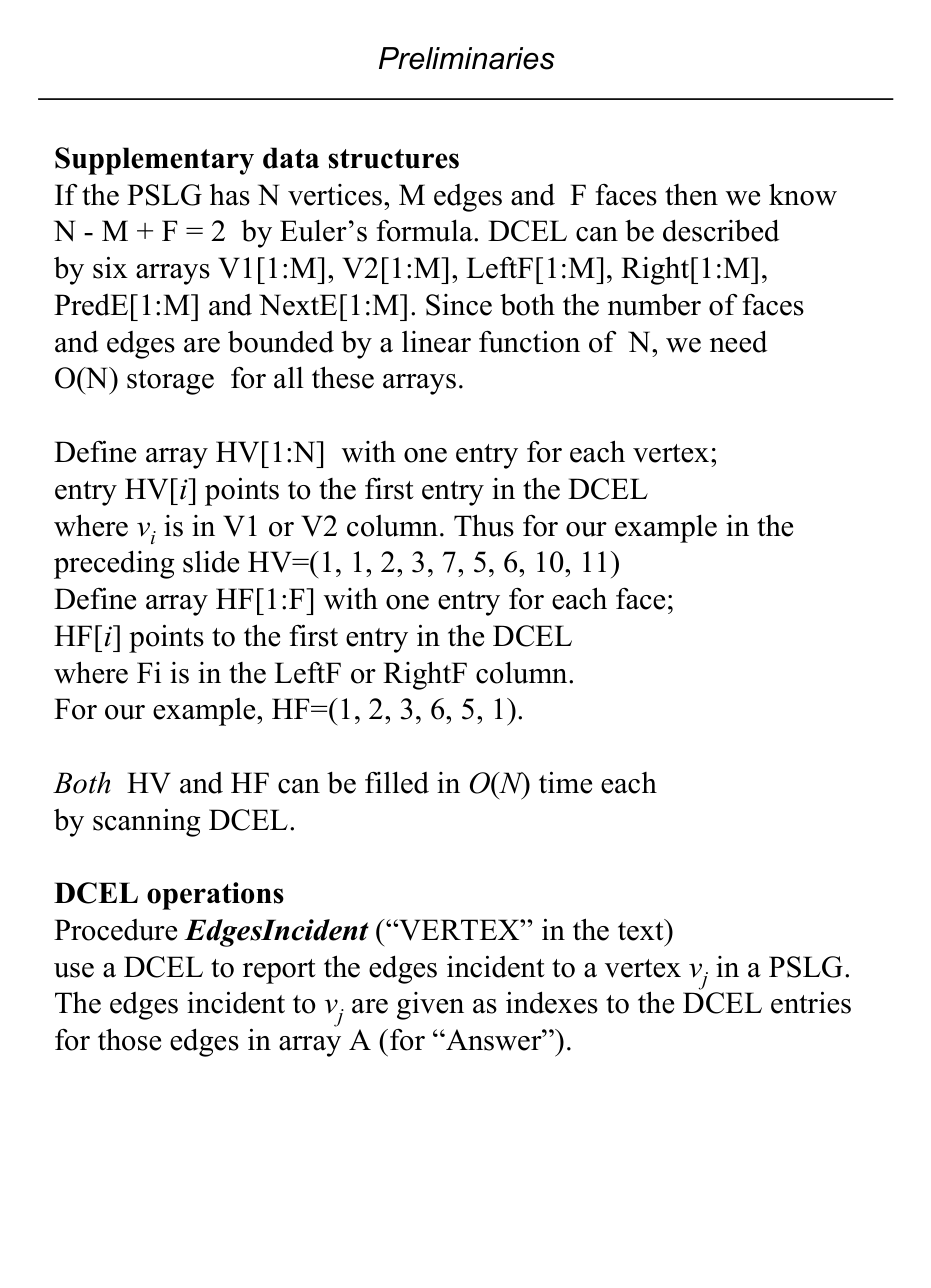

Figure from slide p. 49

Figure from slide p. 49

Slide-by-slide digestion

p. 47 - Doubly connected edge list (DCEL)

  • The DCEL data structure represents a PSLG.
  • It has one entry (“edge node” in text) for each edge in the PSLG.
  • Each entry has 6 fields:
  • V1 Origin of the edge
  • V2 Terminus (destination) of the edge; implies an orientation
  • Face to the left of edge, relative to V1V2 orientation
  • Face to the right of edge, relative to V1V2 orientation
  • Index of entry for first edge encountered after edge V1V2,
  • when proceeding counterclockwise around V1
  • Index of entry for first edge after edge V1V2,

p. 48 - Concrete DCEL table example

  • This slide is the worked table for one planar subdivision encoded as a DCEL.
  • Read each row as one directed edge together with its origin, destination, left face, right face, predecessor edge, and successor edge.
  • The point of the page is not memorizing the numbers. The point is being able to decode one row correctly.

p. 49 - Supplementary data structures

  • If the PSLG has N vertices, M edges and F faces then we know
  • N - M + F = 2 by Euler’s formula. DCEL can be described
  • by six arrays V1[1:M], V2[1:M], LeftF[1:M], Right[1:M],
  • PredE[1:M] and NextE[1:M]. Since both the number of faces
  • and edges are bounded by a linear function of N, we need
  • O(N) storage for all these arrays.
  • Define array HV[1:N] with one entry for each vertex;
  • entry HV[i] points to the first entry in the DCEL
  • where vi is in V1 or V2 column. Thus for our example in the
  • preceding slide HV=(1, 1, 2, 3, 7, 5, 6, 10, 11)

p. 50 - procedure EdgesIncident(j) / VERTEX in text /

procedure EdgesIncident(j)
begin
  a ← HV[j]              /* first DCEL record where v_j is V1 or V2 */
  a0 ← a
  i ← 1
  repeat
    A[i] ← a; i ← i + 1
    if V1[a] = j then a ← PredE[a]
    else a ← NextE[a]    /* v_j is V2[a]; step to next incident record */
  until a = a0
  return A[1 .. i - 1]   /* all edge records incident to v_j */
end

p. 51 - DCEL notes

  • Error in text, p. 16: “... scan of arrays V1 and F1 ...”
  • to produce HV and HF.
  • Actually V1 and V2 (and F1 and F2) must be scanned.
  • What if a vertex was V2 only?
  • The algorithm would fail if only V1 was scanned.
  • EdgesIncident requires time proportional to the number of
  • incident edges reported.
  • How does that relate to N, the number of vertices in the PSLG?
  • We have these facts about planar graphs (and thus PSLGs):
  • (1) v - e + f = 2

What you must be able to say or do in an exam

  • State the input, output, preprocessing, and query/update model precisely.
  • Explain the invariant or ordering that makes the method work.
  • Trace the method by hand on a small example.
  • Give the exact time and space bounds.
  • Mention one edge case, degeneracy, or limitation.

Complexity and performance facts

Local incidence operations are constant time once the structure is built; naive global tasks may still be O(E) or O(N).

Common mistakes and danger points

  • Left/right face is relative to the edge orientation. Get the orientation wrong and every face answer flips.
  • Do not forget the outer face. Homework questions often include it.

Professor emphasis from recordings

These points are distilled from the related recordings and focus on what the professor slowed down for, warned about, or connected to homework/exam reasoning.

  • The lecture treats DCEL as the representation you are supposed to think in for planar subdivisions: many later questions reduce to walking the correct pointer cycle instead of rescanning the whole graph.
  • A practical warning tied to this material is that orientation matters. Left face and right face are relative to the directed edge, so reversing the edge flips the interpretation.
  • He also links the representation to homework-style graph facts: once the subdivision is represented correctly, Euler-based bounds and face-adjacency questions become manageable.
  • When constructing DCEL helper information (e.g., first incident edge for a vertex/face), check both endpoint/face columns; do not look only at one side.

Exam-style drills and answer skeletons

Existing drill reminders from the earlier pack: - Build the dual graph of faces from a DCEL and test whether it is bipartite to decide 2-colorability of faces. - Given a face F, delete exactly the edges whose two incident faces lie in {F} union Neighbors(F) to expand F by union with adjacent faces. - Given a query point P, scan edges with a horizontal ray and return the first crossed edge to identify the containing face. - Adapted from HW1-Q2: Given a DCEL of a PSLG, decide whether all faces can be colored with two colors so adjacent faces have different colors. - Adapted from HW1-Q3: Given a DCEL of a PSLG and a face F, expand F to absorb all neighbor faces by deleting the right edges. - Adapted from HW2-Q1: Given a DCEL of a PSLG and a query point P, find the face containing P in O(N) using a naive method.

HW1-Q2 adapted

Question. Given a DCEL of a PSLG, decide whether all faces can be colored with two colors so that adjacent faces get different colors.

How to answer. Build the dual graph of faces by traversing twin half-edges, then run BFS/DFS two-coloring. A conflict means the face-adjacency graph is not bipartite.

HW1-Q3 adapted

Question. Given a DCEL and a face F, modify the graph so that F is expanded to cover all neighboring faces.

How to answer. Traverse all half-edges on the boundary of F, find incident neighboring faces across twin edges, and delete shared boundary edges between F and those neighbors.

HW2-Q1 adapted

Question. Given a DCEL and a query point P not on any edge or vertex, describe an O(N) algorithm to return the containing face.

How to answer. Shoot a ray from P, test all edges, keep the first crossing, and return the face on the appropriate side of that half-edge. Be explicit about degeneracy handling at vertices.

Core exam drill

Question. State the problem solved by dcel representation and auxiliary structures, describe preprocessing/query/update steps if any, and give the time and space bounds.

How to answer. An excellent answer names the input, the output, the invariant or ordering exploited by the method, and the exact asymptotic costs.

Hand-trace drill

Question. Trace dcel representation and auxiliary structures on a small example by hand and explain each comparison or structural change.

How to answer. On this course, being able to run the method on a picture matters more than writing vague slogans.

Recap

What you must know cold

  • Each edge record stores origin, destination, left face, right face, and predecessor/successor-style incidence links.
  • How to recover vertex-incidence and face-boundary information from the records.
  • How auxiliary arrays for vertices/faces support traversal.
  • Why DCEL is a representation for embeddings, not just connectivity.

Core test / key idea

  • The orientation of an edge record matters because left-face and right-face fields depend on it.
  • Traversing around a face or around a vertex is done by following linked incidence pointers, not by rescanning all edges.
  • Many exam/homework questions on DCEL reduce to building the correct dual or incidence traversal.

Complexity

  • Local incidence operations are constant time once the structure is built; naive global tasks may still be O(E) or O(N).

Common mistakes / danger points

  • Left/right face is relative to the edge orientation. Get the orientation wrong and every face answer flips.
  • Do not forget the outer face. Homework questions often include it.

Professor emphasis (from recordings)

  • The lecture treats DCEL as the representation you are supposed to think in for planar subdivisions: many later questions reduce to walking the correct pointer cycle instead of rescanning the whole graph.
  • A practical warning tied to this material is that orientation matters. Left face and right face are relative to the directed edge, so reversing the edge flips the interpretation.
  • He also links the representation to homework-style graph facts: once the subdivision is represented correctly, Euler-based bounds and face-adjacency questions become manageable.
  • When constructing DCEL helper information (e.g., first incident edge for a vertex/face), check both endpoint/face columns; do not look only at one side.

End-of-file summary

  • Each edge record stores origin, destination, left face, right face, and predecessor/successor-style incidence links.
  • How to recover vertex-incidence and face-boundary information from the records.
  • How auxiliary arrays for vertices/faces support traversal.
  • Local incidence operations are constant time once the structure is built; naive global tasks may still be O(E) or O(N).
  • Left/right face is relative to the edge orientation. Get the orientation wrong and every face answer flips.
  • Do not forget the outer face. Homework questions often include it.
