Orientation tests and signed-area interpretation

Scope

  • Slides: pp. 58-62
  • Major topic folder: pslgs-dcels-vectors-and-geometric-primitives
  • Recording files touching this material: CS 564 - 01.23 1.2.txt, CS 564 - 01.30 3.1.txt
  • Goal of this file: You should be able to study this topic without reopening the slide deck.

Big picture

This is one of the most important files in the whole pack. Orientation is the primitive behind convex hulls, polygon inclusion, sweep-line ordering, and half-plane tests. Break this and the course collapses in an impressively efficient way.

What you must know cold

  • Orientation determinant for three points a, b, c.
  • Positive sign means c is to the left of directed edge ab; negative means right; zero means collinear.
  • Determinant equals twice the signed area of triangle abc.
  • Cycle interpretation: counterclockwise vs clockwise.

Core ideas and reasoning

  • Translate so a is at the origin. Then orient(a,b,c) = (b_x-a_x)(c_y-a_y) - (b_y-a_y)(c_x-a_x).
  • The sign tells relative turning direction without computing any angle.
  • Signed area explains why the same formula appears in both combinatorial and geometric arguments.

Figures to actually look at

These are cropped from the main slide PDF. Do not skip them.

Figure from slide p. 58

Figure from slide p. 58

Figure from slide p. 59

Figure from slide p. 59

Slide-by-slide digestion

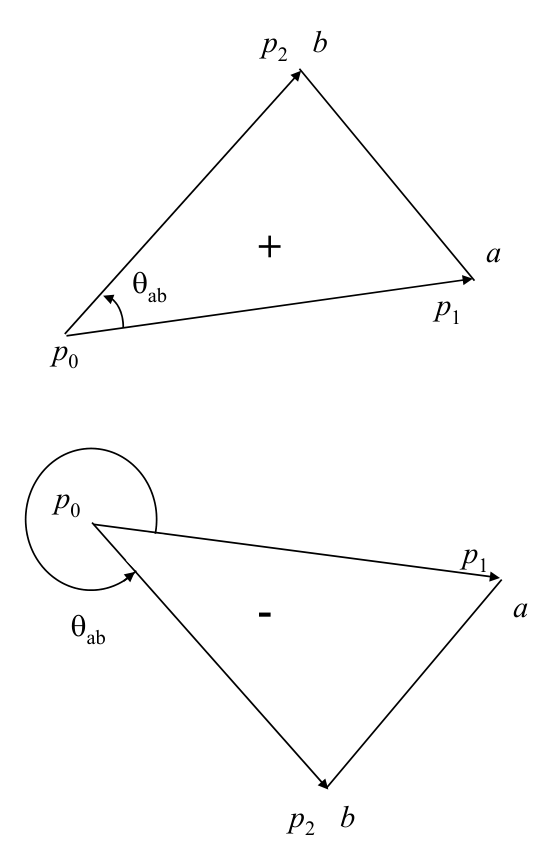

p. 58 - LEFT-RIGHT-ABOVE-BELOW

  • A geometric primitive operation: triangle orientation
  • Given three non-collinear points p0, p1, p2, the triangle Δ p0p1p2
  • is positively oriented if p2 lies to the left of p0p1,
  • and negatively oriented if p2 lies to the right of p0p1.
  • Let vector a = p1 - p0 and vector b = p2 - p0 .
  • θab
  • 0 < θab < 180
  • positive orientation
  • 180 < θab < 360
  • negative orientation

p. 59 - translations of the line segments at the origin.

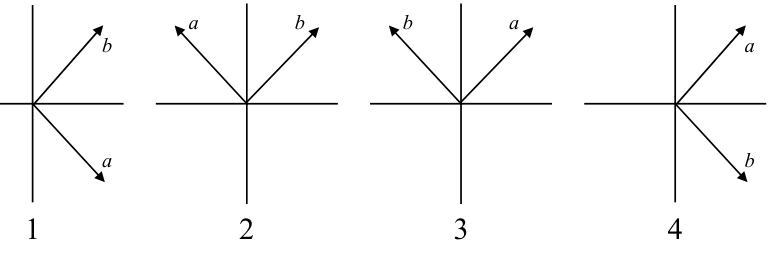

  • Vectors a and b can be in one of four possible configurations:
  • In cases 1 and 3, 0 < θab < 180.
  • In cases 2 and 4, 180 < θab < 360.
  • In cases 1 and 2, the positive x axis pierces θab.
  • In cases 3 and 4, it does not.
  • We introduce the value Q = θb - θa (note that Q ≠θab).
  • Case
  • Range of Q = θb - θa
  • Orientation of Δ p0p1p2
  • -360 < Q < -180

p. 60 - Observe from the table that sin(Q) has the same sign as the

  • orientation of Δ p0p1p2.
  • sin(Q) = sin(θb - θa)
  • by definition of Q
  • = sin θb cos θa - cos θb sin θa
  • by trig. identity
  • We know that
  • cos θa = xa / |a| sin θa = ya / |a|
  • cos θb = xb / |b| sin θb = yb / |b|
  • by definition of sine and cosine. Then, by substitution
  • sin(θb - θa) = (yb / |b|)(xa / |a|) - (xb / |b|)(ya / |a|)

p. 61 - Another way of reaching the same expression is with the

  • determinant of the coordinates of the points:
  • | x0 y0 1 |
  • D =
  • | x1 y1 1 |
  • | x2 y2 1 |
  • Evaluating this determinant gives the expression
  • x0 y1 + x2 y0 + x1 y2 - x2 y1 - x0 y2 - x1 y0
  • which is the expansion of the final expression previously derived.
  • Observe that the determinant is equivalent to the cross product
  • (in 2 dimensions).

p. 62 - Area Interpretation

  • The value of the determinant D is twice
  • the signed area of the triangle Δ p0p1p2 . The
  • signed area is positive if p0p1p2 form a counter clockwise
  • sequence, it is negative if this sequence is clockwise. If the
  • area is zero, then D is 0.
  • Generalization
  • The three points p0 p1 and p2 form a plane in
  • 3-d with a positive normal. A fourth point p3 is on the
  • upside if p3 falls on the positive side of the plane and
  • on the downside if p3 falls on the negative side of the plane.

What you must be able to say or do in an exam

  • Give the precise definitions.
  • Distinguish similar notions cleanly.
  • Use the right primitive test or formula on a concrete example.

Complexity and performance facts

Constant-time primitive. Entire algorithms are built by repeating this test.

Common mistakes and danger points

  • Direction matters. orient(a,b,c) = -orient(b,a,c).
  • Zero means collinear; if an algorithm assumes general position, say so explicitly.
  • Boundary handling is where many exam solutions die.

Exam-style drills and answer skeletons

Existing drill reminders from the earlier pack: - Use the orientation test to compare angular order of points around a query point without trigonometric functions. - Explain how left/right tests implement half-plane membership in convex-polygon inclusion. - Adapted from HW1-Q1: Given a circular linked list of points and a point P outside the list, decide whether the points are in counterclockwise order around P.

HW1-Q1 adapted

Question. Given a circular linked list of points around P, test whether the list is in counterclockwise order around P without using trigonometric angles.

How to answer. Use a half-plane test plus the orientation determinant as an angle comparator. Pure determinant sign on consecutive pairs is not enough because the cyclic order can wrap past π.

Definition drill

Question. Give the precise definitions and the most important consequences from orientation tests and signed-area interpretation.

How to answer. A strong answer distinguishes similar objects and uses the course terminology exactly.

Recap

What you must know cold

  • Orientation determinant for three points a, b, c.
  • Positive sign means c is to the left of directed edge ab; negative means right; zero means collinear.
  • Determinant equals twice the signed area of triangle abc.
  • Cycle interpretation: counterclockwise vs clockwise.

Core test / key idea

  • Translate so a is at the origin. Then orient(a,b,c) = (b_x-a_x)(c_y-a_y) - (b_y-a_y)(c_x-a_x).
  • The sign tells relative turning direction without computing any angle.
  • Signed area explains why the same formula appears in both combinatorial and geometric arguments.

Complexity

  • Constant-time primitive. Entire algorithms are built by repeating this test.

Common mistakes / danger points

  • Direction matters. orient(a,b,c) = -orient(b,a,c).
  • Zero means collinear; if an algorithm assumes general position, say so explicitly.
  • Boundary handling is where many exam solutions die.

End-of-file summary

  • Orientation determinant for three points a, b, c.
  • Positive sign means c is to the left of directed edge ab; negative means right; zero means collinear.
  • Determinant equals twice the signed area of triangle abc.
  • Constant-time primitive. Entire algorithms are built by repeating this test.
  • Direction matters. orient(a,b,c) = -orient(b,a,c).
  • Zero means collinear; if an algorithm assumes general position, say so explicitly.
