Primitive formulas and summary

Scope

  • Slides: pp. 63-65
  • Major topic folder: pslgs-dcels-vectors-and-geometric-primitives
  • Recording files touching this material: CS 564 - 01.23 1.2.txt, CS 564 - 01.30 3.2.txt
  • Goal of this file: You should be able to study this topic without reopening the slide deck.

Big picture

This range compresses the earlier primitives into a small toolkit. Treat it as your local formula sheet for the rest of the midterm.

What you must know cold

  • Parametric line equation and segment restriction.
  • Point-line classification in terms of left, right, behind, beyond, between, origin, destination if your notes use that extended vocabulary.
  • How these formulas combine in intersection and inclusion tests.

Core ideas and reasoning

  • Given a directed segment ab and point q, first use orientation to classify left/right/collinear.
  • If collinear, parameter values or dot-product style comparisons decide whether q is behind a, beyond b, or on the segment.
  • Most later algorithms are just structured uses of these formulas.

Figures to actually look at

These are cropped from the main slide PDF. Do not skip them.

Figure from slide p. 63

Figure from slide p. 63

Figure from slide p. 64

Figure from slide p. 64

Slide-by-slide digestion

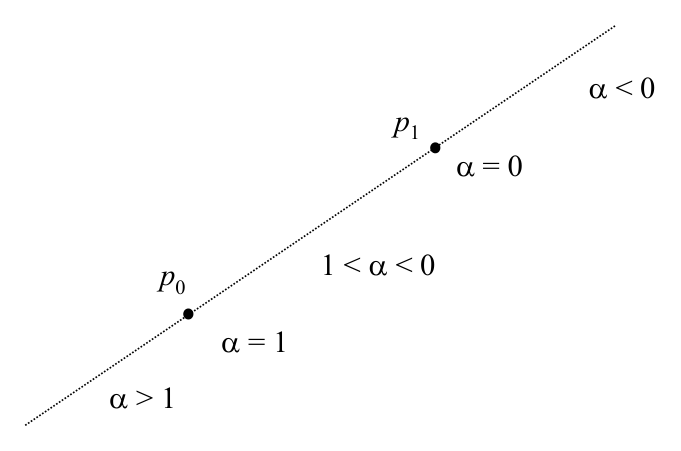

p. 63 - Parametric equation of a line

  • We use the following equation of a line:
  • line = {α(p0) + (1 - α)(p1) }, where α ∈ ℜ(real numbers)
  • where p0 and p1 as usual are the points determining the line.
  • p0 = (x0, y0)
  • p1 = (x1, y1)
  • Substituting gives
  • {α(x0, y0) + (1 - α)(x1, y1) }
  • Multiplying through gives the coordinates
  • {αx0 + (1 - α)x1, αy0 + (1 - α)y1 }
  • α > 1

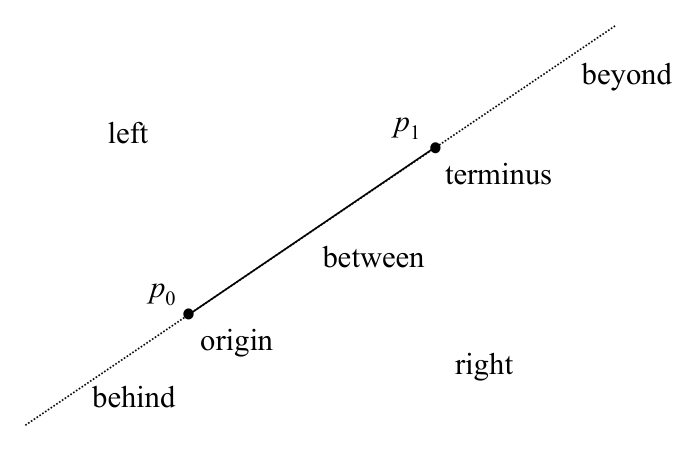

p. 64 - Point-Line classification

  • We now consider the geometric primitive operation of
  • classifying a point w.r.t. a line (both in the plane).
  • A directed line segment partitions the plane into 7
  • non-overlapping regions. The possibilities are shown below.
  • The problem, given p0, p1, and p2, is to determine which
  • region p2 lies in.
  • terminus
  • origin
  • beyond
  • right

p. 65 - Summary of geometric primitives

  • We have seen the following primitives:
    1. Triangle orientation
    1. Left test
    1. Point-line classification
  • Others I have implemented:
    1. Point-on-plane test
    1. Segment-segment intersection
    1. Segment-triangle intersection
  • All require constant time (if d is fixed).
  • There are many others. If in doubt, ask.

What you must be able to say or do in an exam

  • Give the precise definitions.
  • Distinguish similar notions cleanly.
  • Use the right primitive test or formula on a concrete example.

Complexity and performance facts

Constant-time primitives.

Common mistakes and danger points

  • Do not stop at collinear. Many algorithms need the follow-up between/behind/beyond logic.
  • Maintain a consistent directed-edge convention.

Exam-style drills and answer skeletons

Existing drill reminders from the earlier pack: - Adapted from HW1-Q1: Given a circular linked list of points and a point P outside the list, decide whether the points are in counterclockwise order around P.

Definition drill

Question. Give the precise definitions and the most important consequences from primitive formulas and summary.

How to answer. A strong answer distinguishes similar objects and uses the course terminology exactly.

Recap

What you must know cold

  • Parametric line equation and segment restriction.
  • Point-line classification in terms of left, right, behind, beyond, between, origin, destination if your notes use that extended vocabulary.
  • How these formulas combine in intersection and inclusion tests.

Core test / key idea

  • Given a directed segment ab and point q, first use orientation to classify left/right/collinear.
  • If collinear, parameter values or dot-product style comparisons decide whether q is behind a, beyond b, or on the segment.
  • Most later algorithms are just structured uses of these formulas.

Complexity

  • Constant-time primitives.

Common mistakes / danger points

  • Do not stop at collinear. Many algorithms need the follow-up between/behind/beyond logic.
  • Maintain a consistent directed-edge convention.

End-of-file summary

  • Parametric line equation and segment restriction.
  • Point-line classification in terms of left, right, behind, beyond, between, origin, destination if your notes use that extended vocabulary.
  • How these formulas combine in intersection and inclusion tests.
  • Constant-time primitives.
  • Do not stop at collinear. Many algorithms need the follow-up between/behind/beyond logic.
  • Maintain a consistent directed-edge convention.
