Search problem taxonomy and inclusion basics

Scope

  • Slides: pp. 66-69
  • Major topic folder: geometric-search
  • Recording files touching this material: CS 564 - 01.30 3.2.txt
  • Goal of this file: You should be able to study this topic without reopening the slide deck.

Big picture

This is the map of geometric search. The midterm then spends many pages filling in specific algorithmic answers to these generic search questions.

What you must know cold

  • Difference between inclusion, point location, and range searching.
  • Static data set plus many queries viewpoint.
  • Why preprocessing is worth paying for in search problems.

Core ideas and reasoning

  • Polygon inclusion asks whether one query point lies inside a given polygon.
  • Point location asks which face of a planar subdivision contains the query point.
  • Range searching asks which points of a set lie inside a query range, often an axis-parallel rectangle.

Figures to actually look at

These are cropped from the main slide PDF. Do not skip them.

Figure from slide p. 67

Figure from slide p. 67

Figure from slide p. 69

Figure from slide p. 69

Slide-by-slide digestion

  • In general terms a geometric query or search problem has
  • this form:
  • Given a set S of geometric objects and a distinct geometric object q
  • which is the query object, the objective is to determine the subset
  • of the objects in set S that are in some specified geometric
  • relationship with the query object.
  • Many variations are possible, depending on the specific problem.
    1. S may have 1 or more elements.
    1. The elements of S may be of the same type as q, or not.
    1. The answer set may be constrained to have exactly one element,

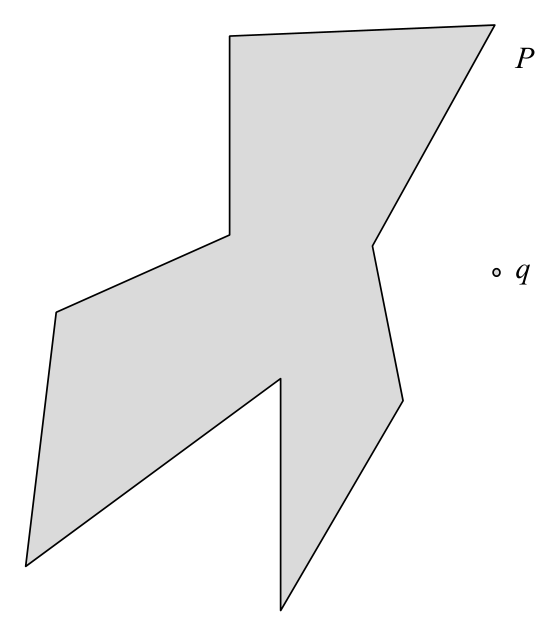

p. 67 - Polygon inclusion

  • Given polygon P and query point q, both in the plane, is q within P?
  • P may be of different types (simple, convex, or star-shaped),
  • which will affect the method.
  • Methods
  • Left test (convex)
  • Intersection counting (Simple)
  • Wedges (Convex and star-shaped)

p. 68 - Point location

  • Given a partition of the geometric space into regions and a query
  • point q, determine which region contains q.
  • We will consider only d = 2, i.e., the plane.
  • Methods
  • Brute force
  • Slab method
  • Chain method
  • Triangle refinement

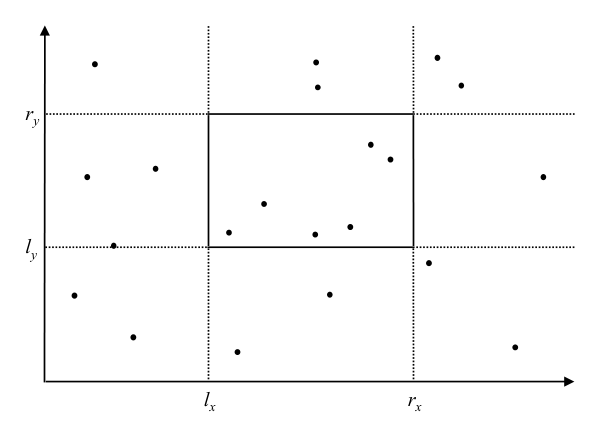

p. 69 - Range searching

  • RANGE SEARCHING
  • INSTANCE: Set S = {p1, p2, ..., pN}, pi = (xi, yi) of points in the
  • plane, and rectangle R = [lx, rx] × [ly, ry] in the plane.
  • QUESTION: Which points of S are within R?
  • Methods
  • Brute force
  • Dominance
  • Grid
  • Quadtree
  • k-D tree

What you must be able to say or do in an exam

  • Give the precise definitions.
  • Distinguish similar notions cleanly.
  • Use the right primitive test or formula on a concrete example.

Complexity and performance facts

Always report preprocessing, storage, and query time separately.

Common mistakes and danger points

  • Do not mix a single-shot problem with a repeated-query data-structure problem.
  • For range searching, remember the query region is x-range cross y-range.

Exam-style drills and answer skeletons

Definition drill

Question. Give the precise definitions and the most important consequences from search problem taxonomy and inclusion basics.

How to answer. A strong answer distinguishes similar objects and uses the course terminology exactly.

Recap

What you must know cold

  • Difference between inclusion, point location, and range searching.
  • Static data set plus many queries viewpoint.
  • Why preprocessing is worth paying for in search problems.

Core test / key idea

  • Polygon inclusion asks whether one query point lies inside a given polygon.
  • Point location asks which face of a planar subdivision contains the query point.
  • Range searching asks which points of a set lie inside a query range, often an axis-parallel rectangle.

Complexity

  • Always report preprocessing, storage, and query time separately.

Common mistakes / danger points

  • Do not mix a single-shot problem with a repeated-query data-structure problem.
  • For range searching, remember the query region is x-range cross y-range.

End-of-file summary

  • Difference between inclusion, point location, and range searching.
  • Static data set plus many queries viewpoint.
  • Why preprocessing is worth paying for in search problems.
  • Always report preprocessing, storage, and query time separately.
  • Do not mix a single-shot problem with a repeated-query data-structure problem.
  • For range searching, remember the query region is x-range cross y-range.
  • Previous file in reading order: Primitive formulas and summary
  • Next file in reading order: Convex polygon inclusion by left test
  • Source slide range: pp. 66-69 of comp_geometry_slides_new.pdf
  • Related recordings: CS 564 - 01.30 3.2.txt
  • Related homework-derived exam prompts included here: none directly mapped; generic exam drills added instead
