Convex polygon inclusion by left test

Scope

  • Slides: pp. 70-71
  • Major topic folder: geometric-search
  • Recording files touching this material: CS 564 - 01.30 3.2.txt
  • Goal of this file: You should be able to study this topic without reopening the slide deck.

Big picture

This is the cleanest inside test in the course: a convex polygon is just an intersection of half-planes. One primitive repeated N times and you are done.

What you must know cold

  • Inside iff the query point is on the left side of every directed edge of a consistently oriented convex polygon.
  • Why convexity is essential for this characterization.
  • Boundary policy: on an edge usually counts as inside unless the question says strict interior.

Core ideas and reasoning

  • Assume the polygon boundary is ordered counterclockwise. For each edge v_i v_{i+1}, compute orient(v_i, v_{i+1}, q).
  • If any value is negative, q is outside. If all are nonnegative, q is inside or on the boundary.
  • This works because a convex polygon is exactly the intersection of the interior half-planes of its edges.

Figures to actually look at

These are cropped from the main slide PDF. Do not skip them.

Figure from slide p. 70

Figure from slide p. 70

Slide-by-slide digestion

p. 70 - Convex polygon inclusion

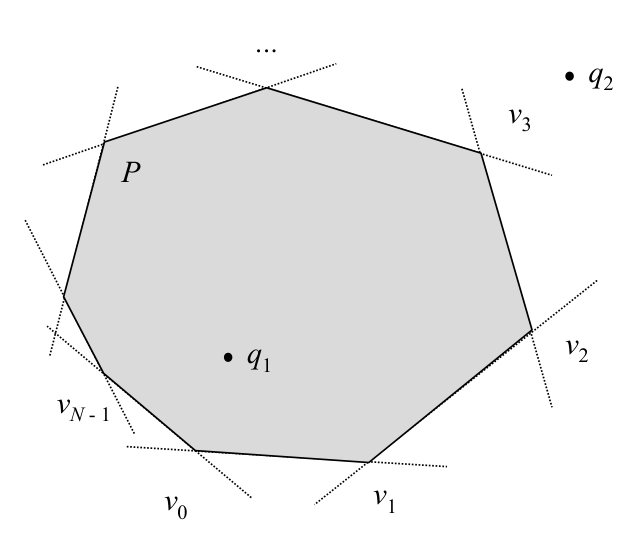

  • CONVEX POLYGON INCLUSION
  • INSTANCE: Convex polygon P = (e0 = v0v1, e1 = v1v2, ...,
  • eN-1 = vN-1v0) with N edges and query point q, both in the plane.
  • QUESTION: Is q within P?
  • Convex polygon inclusion by Left test
  • P is the intersection of the half-planes defined by its edges.
  • Query point q is within P iff q is to the left of or on all N edges of P.
  • (This is true iff P is convex.)

p. 71 - Convex polygon inclusion by Left test

procedure ConvexInclusion(P, q)
  { P: convex polygon v_0,…,v_{N-1} in CCW order }
begin
  for i ← 0 to N - 1 do
    c ← PointLineClassify(v_i, v_{(i+1) mod N}, q)
    if c = RIGHT then return FALSE
    { backward-oriented edge: use Left(v_{(i+1) mod N}, v_i, q) per slide convention }
  return TRUE
end

What you must be able to say or do in an exam

  • State the input, output, preprocessing, and query/update model precisely.
  • Explain the invariant or ordering that makes the method work.
  • Trace the method by hand on a small example.
  • Give the exact time and space bounds.
  • Mention one edge case, degeneracy, or limitation.

Complexity and performance facts

O(N) query time, O(1) extra space, no preprocessing beyond having the vertex order.

Common mistakes and danger points

  • This fails for general non-convex polygons.
  • If the polygon is clockwise, the sign convention reverses.

Exam-style drills and answer skeletons

Core exam drill

Question. State the problem solved by convex polygon inclusion by left test, describe preprocessing/query/update steps if any, and give the time and space bounds.

How to answer. An excellent answer names the input, the output, the invariant or ordering exploited by the method, and the exact asymptotic costs.

Hand-trace drill

Question. Trace convex polygon inclusion by left test on a small example by hand and explain each comparison or structural change.

How to answer. On this course, being able to run the method on a picture matters more than writing vague slogans.

Recap

What you must know cold

  • Inside iff the query point is on the left side of every directed edge of a consistently oriented convex polygon.
  • Why convexity is essential for this characterization.
  • Boundary policy: on an edge usually counts as inside unless the question says strict interior.

Core test / key idea

  • Assume the polygon boundary is ordered counterclockwise. For each edge v_i v_{i+1}, compute orient(v_i, v_{i+1}, q).
  • If any value is negative, q is outside. If all are nonnegative, q is inside or on the boundary.
  • This works because a convex polygon is exactly the intersection of the interior half-planes of its edges.

Complexity

  • O(N) query time, O(1) extra space, no preprocessing beyond having the vertex order.

Common mistakes / danger points

  • This fails for general non-convex polygons.
  • If the polygon is clockwise, the sign convention reverses.

End-of-file summary

  • Inside iff the query point is on the left side of every directed edge of a consistently oriented convex polygon.
  • Why convexity is essential for this characterization.
  • Boundary policy: on an edge usually counts as inside unless the question says strict interior.
  • O(N) query time, O(1) extra space, no preprocessing beyond having the vertex order.
  • This fails for general non-convex polygons.
  • If the polygon is clockwise, the sign convention reverses.
