Simple polygon inclusion by intersection counting

Scope

  • Slides: pp. 72-74
  • Major topic folder: geometric-search
  • Recording files touching this material: CS 564 - 01.30 3.2.txt
  • Goal of this file: You should be able to study this topic without reopening the slide deck.

Big picture

For non-convex simple polygons, the half-plane shortcut is gone, so the course uses parity via a ray. This is the version where endpoint degeneracies become the whole game.

What you must know cold

  • Shoot a ray from the query point and count intersections with the boundary.
  • Odd count means inside, even count means outside for a simple polygon.
  • Need a consistent endpoint rule to avoid double counting.

Core ideas and reasoning

  • A common implementation uses a horizontal ray to the right.
  • Count an edge only if the ray crosses it according to a half-open endpoint convention, for example one endpoint strictly below and the other at or above the ray.
  • If the query lies on the boundary, handle that first with a segment-membership check.

Figures to actually look at

These are cropped from the main slide PDF. Do not skip them.

Figure from slide p. 72

Figure from slide p. 72

Figure from slide p. 74

Figure from slide p. 74

Slide-by-slide digestion

p. 72 - Simple polygon inclusion

  • SIMPLE POLYGON INCLUSION
  • INSTANCE: Simple polygon P = (e0 = v0v1, e1 = v1v2, ...,
  • eN -1 = vN -1v0) with N edges and query point q, both in the plane.
  • QUESTION: Is q within P?

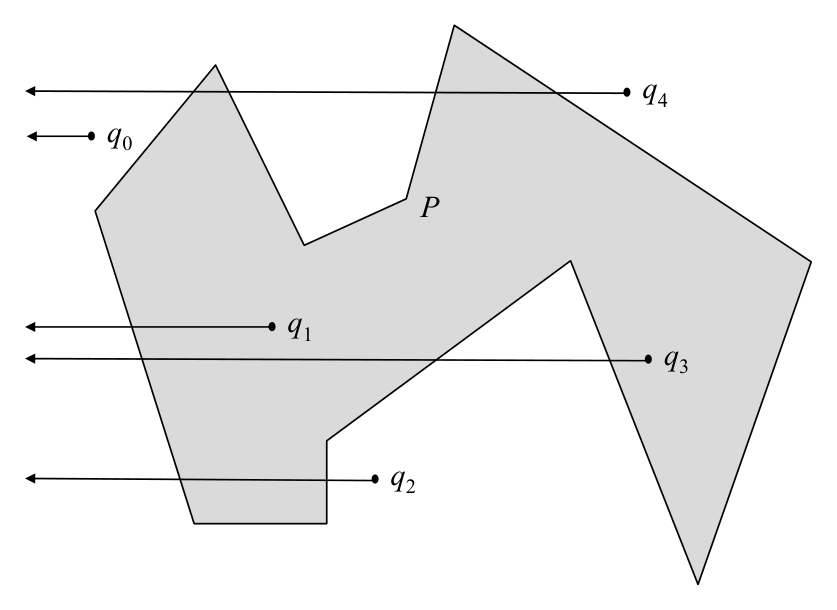

  • Simple polygon inclusion by Intersection counting
  • Query point q is within P iff a ray originating at q intersects
  • the boundary of P an odd number of times.

p. 73 - Simple polygon inclusion by Intersection counting

procedure SimpleInclusion(P, q)
  { parity / ray-shooting test; handle degeneracies separately (slide p.74) }
begin
  c ← 0
  for i ← 0 to N - 1 do
    if horizontal ray from q to +∞ crosses edge (v_i, v_{(i+1) mod N}) transversally then
      c ← (c + 1) mod 2
  if c = 1 then return TRUE else return FALSE
end

p. 74 - Simple polygon inclusion by Intersection counting

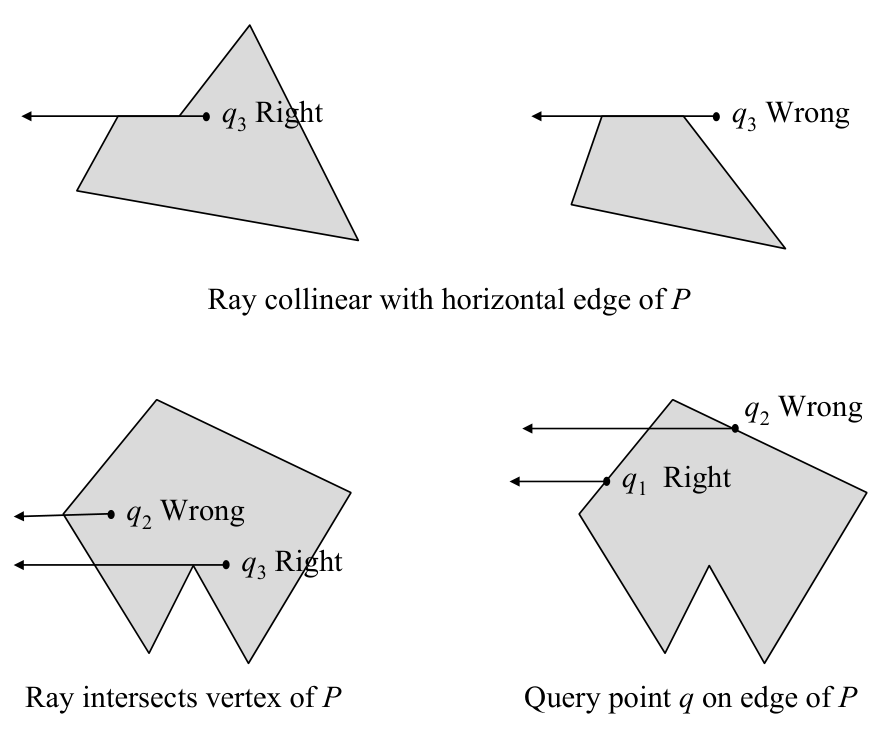

  • Special cases, not explicitly handled by given procedure:
    1. Ray collinear with horizontal edge of P
    1. Ray intersects vertex of P
    1. Query point q on edge of P
  • Resolving these special cases does not change complexity.
  • See Preparata, p. 42 or O’Rourke, p. 233-236 for details.
  • q2 Wrong
  • q3 Right
  • Ray intersects vertex of P
  • q1 Right

What you must be able to say or do in an exam

  • State the input, output, preprocessing, and query/update model precisely.
  • Explain the invariant or ordering that makes the method work.
  • Trace the method by hand on a small example.
  • Give the exact time and space bounds.
  • Mention one edge case, degeneracy, or limitation.

Complexity and performance facts

O(N) time, O(1) extra space.

Common mistakes and danger points

  • Vertex hits can double count if you use a sloppy rule.
  • You must decide boundary behavior separately from odd-even logic.
  • Ray-degeneracy checklist: be consistent about (1) a ray passing through a polygon vertex, (2) a ray collinear with an edge, and (3) the query point lying on the boundary; otherwise parity can be wrong.

Professor emphasis from recordings

These points are distilled from the related recordings and focus on what the professor slowed down for, warned about, or connected to homework/exam reasoning.

  • The lecture spends time on degeneracies for ray shooting: rays can hit a vertex or line up with an edge, so you need a consistent counting convention instead of hand-waving.
  • The real idea is parity, not the particular ray direction. Count crossings consistently, then odd means inside and even means outside.

Exam-style drills and answer skeletons

Existing drill reminders from the earlier pack: - Design a robust ray-shooting test that correctly handles rays passing through polygon vertices. - Explain why parity works only for simple polygons.

Core exam drill

Question. State the problem solved by simple polygon inclusion by intersection counting, describe preprocessing/query/update steps if any, and give the time and space bounds.

How to answer. An excellent answer names the input, the output, the invariant or ordering exploited by the method, and the exact asymptotic costs.

Hand-trace drill

Question. Trace simple polygon inclusion by intersection counting on a small example by hand and explain each comparison or structural change.

How to answer. On this course, being able to run the method on a picture matters more than writing vague slogans.

Recap

What you must know cold

  • Shoot a ray from the query point and count intersections with the boundary.
  • Odd count means inside, even count means outside for a simple polygon.
  • Need a consistent endpoint rule to avoid double counting.

Core test / key idea

  • A common implementation uses a horizontal ray to the right.
  • Count an edge only if the ray crosses it according to a half-open endpoint convention, for example one endpoint strictly below and the other at or above the ray.
  • If the query lies on the boundary, handle that first with a segment-membership check.

Complexity

  • O(N) time, O(1) extra space.

Common mistakes / danger points

  • Vertex hits can double count if you use a sloppy rule.
  • You must decide boundary behavior separately from odd-even logic.
  • Ray-degeneracy checklist: be consistent about (1) a ray passing through a polygon vertex, (2) a ray collinear with an edge, and (3) the query point lying on the boundary; otherwise parity can be wrong.

Professor emphasis (from recordings)

  • The lecture spends time on degeneracies for ray shooting: rays can hit a vertex or line up with an edge, so you need a consistent counting convention instead of hand-waving.
  • The real idea is parity, not the particular ray direction. Count crossings consistently, then odd means inside and even means outside.
