Convex polygon inclusion by wedges

Scope

  • Slides: pp. 75-77
  • Major topic folder: geometric-search
  • Recording files touching this material: CS 564 - 01.30 3.2.txt
  • Goal of this file: You should be able to study this topic without reopening the slide deck.

Big picture

This is the accelerated convex-polygon inclusion method. The idea is to preprocess angular order around an interior point and reduce the query to a wedge search plus one local test.

What you must know cold

  • Choose an interior reference point and partition the polygon into wedges/triangles.
  • Use binary search in angular order to find the wedge containing the query direction.
  • Finish with a local orientation test in the found wedge.

Core ideas and reasoning

  • The polygon is decomposed into fan triangles relative to an interior point or anchor.
  • The query point determines a direction from the anchor; binary search locates the wedge in O(log N).
  • Then test whether q lies inside the corresponding triangle/wedge.

Figures to actually look at

These are cropped from the main slide PDF. Do not skip them.

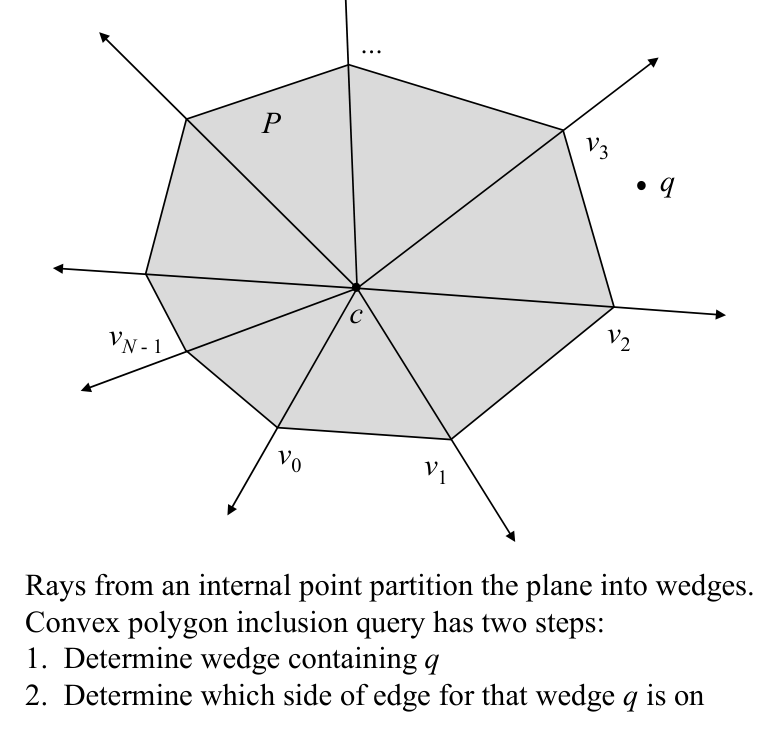

Figure from slide p. 75

Figure from slide p. 75

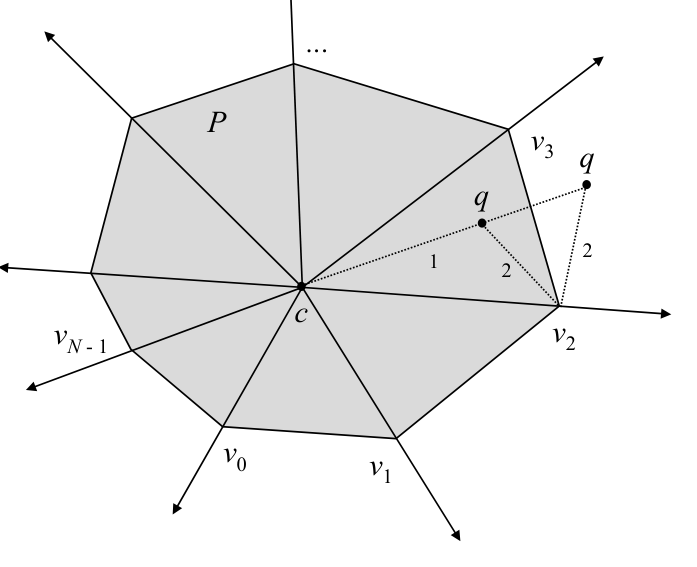

Figure from slide p. 76

Figure from slide p. 76

Slide-by-slide digestion

p. 75 - Convex polygon inclusion by Wedges

  • CONVEX POLYGON INCLUSION
  • INSTANCE: Convex polygon P = (e0 = v0v1, e1 = v1v2, ...,
  • eN -1 = vN -1v0) with N edges and query point q, both in the plane.
  • QUESTION: Is q within P?
  • P convex ⇒
  • the vertices of P occur in angular order about any point within P.
  • Rays from an internal point partition the plane into wedges.
  • Convex polygon inclusion query has two steps:
    1. Determine wedge containing q
    1. Determine which side of edge for that wedge q is on

p. 76 - Preprocessing

    1. Find a point c internal to P (centroid of any three vertices).
    1. Arrange the vertices into a data structure suitable for
  • binary search (e.g., an array).
  • Query
  • Given query point q,
    1. Find wedge containing q by binary search on the vertices.
  • Point q lies within the wedge for vertices vi and vi+1 iff
  • qcpi is a Right turn and qcpi+1 is a Left turn.
    1. Once pi and pi+1 have been found,
  • q is internal iff pi+1piq is a Left turn.

p. 77 - Analysis

  • Preprocessing time: O(N); to load vertices into data structure.
  • Query time: O(log N); binary search with O(1) time
  • per comparison.
  • Space: O(N); for N edges.
  • Comments
  • Note that O(N) preprocessing enables O(log N) query.
  • Since O(N) query exists, this method is useful for repetitive mode
  • queries, not for single shot queries.
  • Notation different in notes and text.
  • This algorithm in text appears to be in error.

What you must be able to say or do in an exam

  • State the input, output, preprocessing, and query/update model precisely.
  • Explain the invariant or ordering that makes the method work.
  • Trace the method by hand on a small example.
  • Give the exact time and space bounds.
  • Mention one edge case, degeneracy, or limitation.

Complexity and performance facts

Typical preprocessing O(N), query O(log N), storage O(N).

Common mistakes and danger points

  • You need a consistent angular order and a point known to be interior.
  • Binary search is on wedges, not on x- or y-coordinates.
  • Boundary case matters: when the query point lies exactly on an edge (orientation/determinant = 0), handle it according to the problem's inside/boundary policy; do not skip the determinant-zero branch.

Exam-style drills and answer skeletons

Core exam drill

Question. State the problem solved by convex polygon inclusion by wedges, describe preprocessing/query/update steps if any, and give the time and space bounds.

How to answer. An excellent answer names the input, the output, the invariant or ordering exploited by the method, and the exact asymptotic costs.

Hand-trace drill

Question. Trace convex polygon inclusion by wedges on a small example by hand and explain each comparison or structural change.

How to answer. On this course, being able to run the method on a picture matters more than writing vague slogans.

Recap

What you must know cold

  • Choose an interior reference point and partition the polygon into wedges/triangles.
  • Use binary search in angular order to find the wedge containing the query direction.
  • Finish with a local orientation test in the found wedge.

Core test / key idea

  • The polygon is decomposed into fan triangles relative to an interior point or anchor.
  • The query point determines a direction from the anchor; binary search locates the wedge in O(log N).
  • Then test whether q lies inside the corresponding triangle/wedge.

Complexity

  • Typical preprocessing O(N), query O(log N), storage O(N).

Common mistakes / danger points

  • You need a consistent angular order and a point known to be interior.
  • Binary search is on wedges, not on x- or y-coordinates.
  • Boundary case matters: when the query point lies exactly on an edge (orientation/determinant = 0), handle it according to the problem's inside/boundary policy; do not skip the determinant-zero branch.

End-of-file summary

  • Choose an interior reference point and partition the polygon into wedges/triangles.
  • Use binary search in angular order to find the wedge containing the query direction.
  • Finish with a local orientation test in the found wedge.
  • Typical preprocessing O(N), query O(log N), storage O(N).
  • You need a consistent angular order and a point known to be interior.
  • Binary search is on wedges, not on x- or y-coordinates.
