Star-shaped polygon inclusion by wedges

Scope

  • Slides: pp. 78-79
  • Major topic folder: geometric-search
  • Recording files touching this material: CS 564 - 01.30 3.2.txt
  • Goal of this file: You should be able to study this topic without reopening the slide deck.

Big picture

This extends the wedge idea from convex polygons to star-shaped polygons. The cost is that you now rely on a kernel point rather than arbitrary interior structure.

What you must know cold

  • Definition of a star-shaped polygon and its kernel.
  • Why a kernel point sees the entire boundary.
  • How wedge partitioning around a kernel point supports inclusion testing.

Core ideas and reasoning

  • Pick a point in the kernel. Every boundary point is visible from it.
  • Order vertices around that point, find the wedge containing the query direction, then test locally.
  • The method is an extension of the convex fan idea but requires star-shaped visibility.

Figures to actually look at

These are cropped from the main slide PDF. Do not skip them.

Figure from slide p. 78

Figure from slide p. 78

Figure from slide p. 79

Figure from slide p. 79

Slide-by-slide digestion

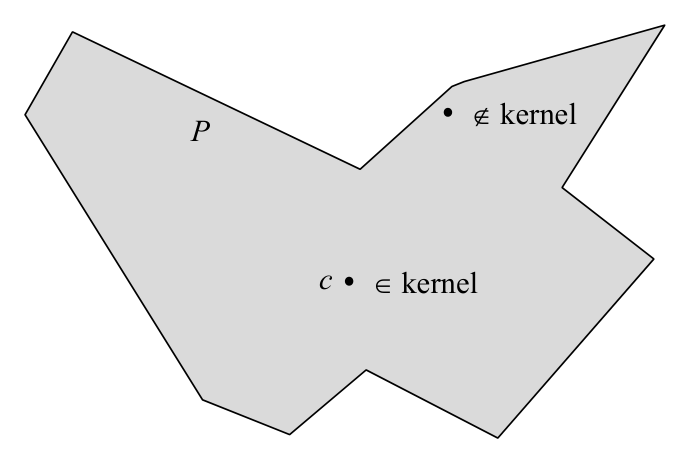

p. 78 - Star-shaped polygon inclusion by Wedges

  • STAR-SHAPED POLYGON INCLUSION
  • INSTANCE: Star-shaped polygon P = (e0 = v0v1, e1 = v1v2, ...,
  • eN-1 = vN-1v0) with N edges and query point q, both in the plane.
  • QUESTION: Is q within P?
  • A simple polygon P is star-shaped if ∃ a point c within
  • P ∋ for all points p within P the segment cp lies within P. The
  • locus of those points is the kernel of P.
  • (Note that convex polygons are star-shaped, and that for a
  • convex polygon the entire polygon is the kernel.)
  • ∈kernel

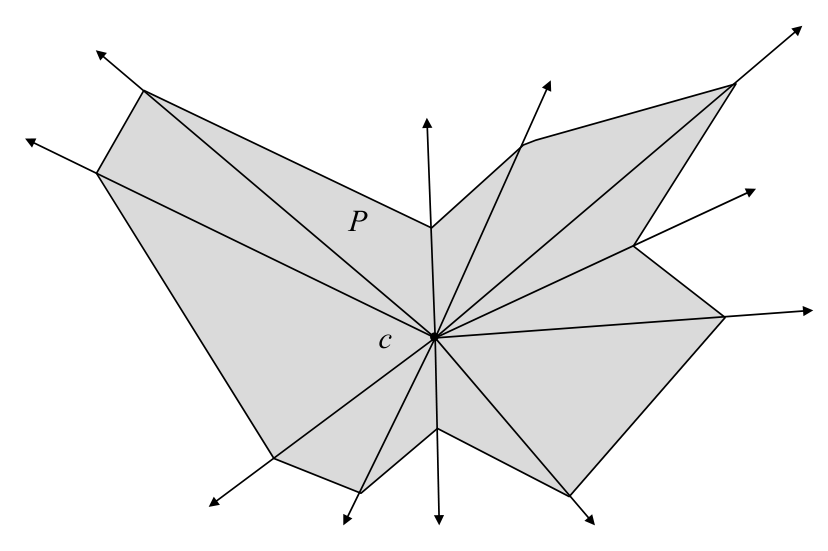

p. 79 - Star-shaped polygon inclusion by Wedges

  • P star-shaped ⇒
  • the vertices of P occur in angular order about any point in
  • the kernel of P ⇒
  • The convex polygon inclusion algorithm can be used,
  • once a point in the kernel of P has been found.
  • This can be done in O(N) time ⇒
  • Preprocessing remains O(N).

What you must be able to say or do in an exam

  • State the input, output, preprocessing, and query/update model precisely.
  • Explain the invariant or ordering that makes the method work.
  • Trace the method by hand on a small example.
  • Give the exact time and space bounds.
  • Mention one edge case, degeneracy, or limitation.

Complexity and performance facts

After suitable preprocessing, queries can be handled similarly to wedge-based convex inclusion.

Common mistakes and danger points

  • An arbitrary interior point is not enough; it must lie in the kernel.
  • Do not claim this works for every simple polygon.
  • Boundary case matters: when the query point lies exactly on an edge (orientation/determinant = 0), handle it according to the problem's inside/boundary policy; do not skip the determinant-zero branch.

Exam-style drills and answer skeletons

Core exam drill

Question. State the problem solved by star-shaped polygon inclusion by wedges, describe preprocessing/query/update steps if any, and give the time and space bounds.

How to answer. An excellent answer names the input, the output, the invariant or ordering exploited by the method, and the exact asymptotic costs.

Hand-trace drill

Question. Trace star-shaped polygon inclusion by wedges on a small example by hand and explain each comparison or structural change.

How to answer. On this course, being able to run the method on a picture matters more than writing vague slogans.

Recap

What you must know cold

  • Definition of a star-shaped polygon and its kernel.
  • Why a kernel point sees the entire boundary.
  • How wedge partitioning around a kernel point supports inclusion testing.

Core test / key idea

  • Pick a point in the kernel. Every boundary point is visible from it.
  • Order vertices around that point, find the wedge containing the query direction, then test locally.
  • The method is an extension of the convex fan idea but requires star-shaped visibility.

Complexity

  • After suitable preprocessing, queries can be handled similarly to wedge-based convex inclusion.

Common mistakes / danger points

  • An arbitrary interior point is not enough; it must lie in the kernel.
  • Do not claim this works for every simple polygon.
  • Boundary case matters: when the query point lies exactly on an edge (orientation/determinant = 0), handle it according to the problem's inside/boundary policy; do not skip the determinant-zero branch.

End-of-file summary

  • Definition of a star-shaped polygon and its kernel.
  • Why a kernel point sees the entire boundary.
  • How wedge partitioning around a kernel point supports inclusion testing.
  • After suitable preprocessing, queries can be handled similarly to wedge-based convex inclusion.
  • An arbitrary interior point is not enough; it must lie in the kernel.
  • Do not claim this works for every simple polygon.
