Point location by slab decomposition

Scope

  • Slides: pp. 80-85
  • Major topic folder: geometric-search
  • Recording files touching this material: CS 564 - 02.04 4.1.txt
  • Goal of this file: You should be able to study this topic without reopening the slide deck.

Big picture

The slab method is one of the first genuine geometric-search data structures. It shows how binary search enters geometry by cutting the plane into horizontal bands.

What you must know cold

  • Construct horizontal lines through all vertices to form slabs.
  • Binary search on slab y-order to find the slab containing q.
  • Within the slab, use the left-to-right edge order to identify the containing face.

Core ideas and reasoning

  • After preprocessing, every slab has a fixed combinatorial order of intersecting edges.
  • Query step 1: binary search over y-coordinates of slab boundaries.
  • Query step 2: locate q among the ordered edges inside that slab.

Figures to actually look at

These are cropped from the main slide PDF. Do not skip them.

Figure from slide p. 82

Figure from slide p. 82

Figure from slide p. 83

Figure from slide p. 83

Slide-by-slide digestion

p. 80 - Point location

  • PLANAR POINT LOCATION
  • INSTANCE: PSLG G = (V, E), with G connected and
  • no vertex v ∈V having degree < 2, and query point q.
  • QUESTION: Which face of G is q within?
  • With the assumptions that degree(v) ≥2 ∀v ∈ V and G is connected,
  • G partitions the plane into simple polygons.

p. 81 - Point location by brute force

  • Consider a point location method using known techniques.
  • We represent PSLG G with a DCEL
  • (which requires O(N) preprocessing to construct, as seen).
  • Query
procedure BruteForceFaceLocation(G, q)
begin
  for each face f of G do
    assemble simple polygon P from edges of f using DCEL FACE traversal
    if SimpleInclusion(P, q) then return f
  return unbounded face
end
  • Analysis

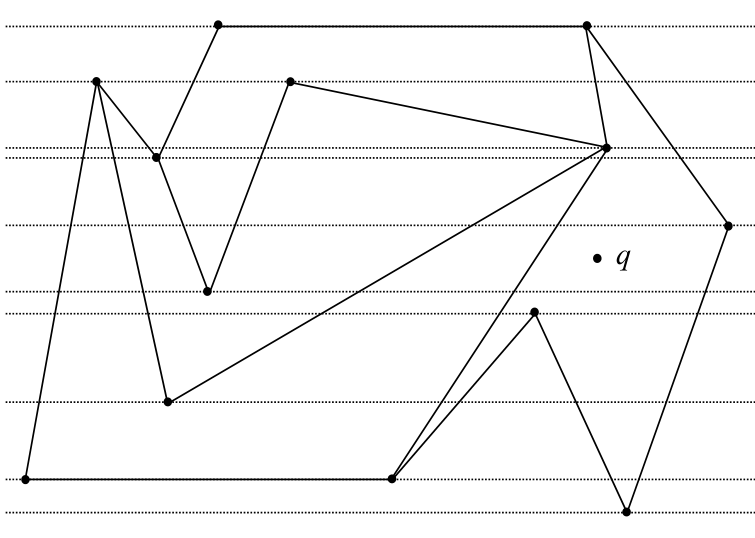

p. 82 - Point location by Slab method

  • The fundamental technique for general search is to apply bisection,
  • i.e., binary search.
  • A binary search on N items requires O(log N) time.
  • Often applied to alphanumeric values.
  • We will see ways to apply the idea to geometric objects.
  • Slab method is an example.
  • Slab method query, part 1
  • Given PSLG G, construct a horizontal line through each vertex.
  • These lines divide the plane into (at most) N + 1 “slabs”.
  • Sorting the y-coordinates of the slabs during preprocessing

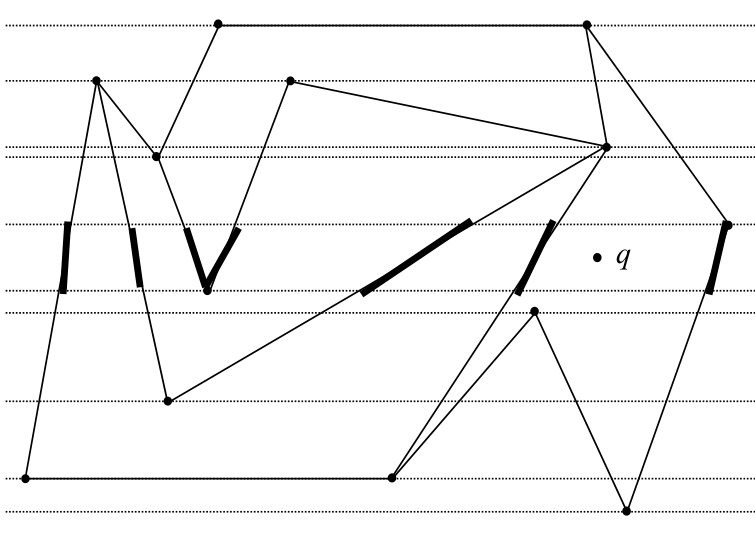

p. 83 - Slab method query, part 2

  • The intersection of a slab with G is a set of segments,
  • from the edges of G.
  • The segments define trapezoids, which may degenerate to triangles.
  • G a PSLG ⇒edges intersect only at vertices.
  • Each vertex defines a slab boundary ⇒
  • No segments intersect within a slab.
  • Segments in a slab can be totally ordered (e.g., left to right).
  • Binary search can be used to find the trapezoid containing q.
  • If face stored with each trapezoid during preprocessing,
  • this gives the answer to the point location problem.
  • This slide illustrates how the query point is compared against ordered slab segments during binary search.
  • The comparison is implemented with orientation/left-right tests against the candidate segment.
  • In an exam trace, be ready to say whether the query lies to the left or right of the segment and which side the search should continue on.

p. 85 - Analysis

  • Query time: O(log N); 2× O(log N) binary search.
  • At most N slabs, at most N segments per slab.
  • Cannot be improved (optimum).
  • Preprocessing time: O(N2 log N); each of O(N) slabs can
  • have as many as N segments, requiring an O(N log N) sort.
  • This can be improved.
  • Space: O(N2); O(N) slabs, each with O(N) segments.
  • Cannot be improved (for this algorithm).

What you must be able to say or do in an exam

  • State the input, output, preprocessing, and query/update model precisely.
  • Explain the invariant or ordering that makes the method work.
  • Trace the method by hand on a small example.
  • Give the exact time and space bounds.
  • Mention one edge case, degeneracy, or limitation.

Complexity and performance facts

Binary search finds the slab in O(log N); storage/preprocessing may be high because each slab stores edge order information.

Common mistakes and danger points

  • The expensive part is building/storing edge orders for slabs.
  • Within a slab, you compare q against edges, not against face labels directly.

Professor emphasis from recordings

These points are distilled from the related recordings and focus on what the professor slowed down for, warned about, or connected to homework/exam reasoning.

  • This method is presented as one of the first clean examples of binary search being transferred into geometry.
  • He explicitly notes the geometric degeneracy that slab regions can become triangles; the left-to-right order still exists, so the query logic still works.
  • A big warning from lecture is the preprocessing blow-up: many slabs may each contain many segments, so the simple slab method is fast at query time but expensive to build.

Exam-style drills and answer skeletons

Existing drill reminders from the earlier pack: - Given a PSLG and a query point, describe a naive face-location method using a horizontal ray and identify the incident face of the first crossed edge. - Adapted from HW2-Q1: Given a DCEL of a PSLG and a query point P, find the face containing P in O(N) using a naive method.

HW2-Q1 adapted

Question. For a PSLG and query point P, explain the naive O(N) point-location method, then explain how the slab method improves the query step.

How to answer. Contrast brute-force ray shooting with slab preprocessing. The key gain is binary search on slabs plus ordered edge search inside one slab.

Core exam drill

Question. State the problem solved by point location by slab decomposition, describe preprocessing/query/update steps if any, and give the time and space bounds.

How to answer. An excellent answer names the input, the output, the invariant or ordering exploited by the method, and the exact asymptotic costs.

Hand-trace drill

Question. Trace point location by slab decomposition on a small example by hand and explain each comparison or structural change.

How to answer. On this course, being able to run the method on a picture matters more than writing vague slogans.

Recap

What you must know cold

  • Construct horizontal lines through all vertices to form slabs.
  • Binary search on slab y-order to find the slab containing q.
  • Within the slab, use the left-to-right edge order to identify the containing face.

Core test / key idea

  • After preprocessing, every slab has a fixed combinatorial order of intersecting edges.
  • Query step 1: binary search over y-coordinates of slab boundaries.
  • Query step 2: locate q among the ordered edges inside that slab.

Complexity

  • Binary search finds the slab in O(log N); storage/preprocessing may be high because each slab stores edge order information.

Common mistakes / danger points

  • The expensive part is building/storing edge orders for slabs.
  • Within a slab, you compare q against edges, not against face labels directly.

Professor emphasis (from recordings)

  • This method is presented as one of the first clean examples of binary search being transferred into geometry.
  • He explicitly notes the geometric degeneracy that slab regions can become triangles; the left-to-right order still exists, so the query logic still works.
  • A big warning from lecture is the preprocessing blow-up: many slabs may each contain many segments, so the simple slab method is fast at query time but expensive to build.

End-of-file summary

  • Construct horizontal lines through all vertices to form slabs.
  • Binary search on slab y-order to find the slab containing q.
  • Within the slab, use the left-to-right edge order to identify the containing face.
  • Binary search finds the slab in O(log N); storage/preprocessing may be high because each slab stores edge order information.
  • The expensive part is building/storing edge orders for slabs.
  • Within a slab, you compare q against edges, not against face labels directly.
