Plane sweep as a recurring paradigm

Scope

  • Slides: pp. 86-90
  • Major topic folder: geometric-search
  • Recording files touching this material: CS 564 - 02.04 4.1.txt
  • Goal of this file: You should be able to study this topic without reopening the slide deck.

Big picture

Plane sweep is not one algorithm. It is a habit of mind: move an imaginary line, process events in order, and maintain exactly the active structure you need.

What you must know cold

  • Sweep line or sweep plane idea.
  • Event queue and status structure.
  • Why geometry often becomes easier when you impose a global order.

Core ideas and reasoning

  • Sort critical events such as vertex coordinates, segment endpoints, or intersections.
  • Maintain a balanced structure for currently active objects intersecting the sweep line.
  • Update only when the combinatorial situation changes.

Figures to actually look at

These are cropped from the main slide PDF. Do not skip them.

Figure from slide p. 86

Figure from slide p. 86

Figure from slide p. 88

Figure from slide p. 88

Slide-by-slide digestion

p. 86 - Plane sweep algorithmic technique

  • Plane sweep is an algorithmic technique, or pattern,
  • that is used frequently in computational geometry.
  • The essential idea is that a geometric object, or collection of
  • objects, in the plane is processed with an algorithm that
  • is suggested by the idea of a vertical (or horizontal) line
  • passing over the object(s).
  • Processing occurs at discrete abscissa (or ordinates) as the line
  • passes over key points in the object(s).
  • Those points are called events.
  • We will see how to apply this technique to perform preprocessing

p. 87 - Plane sweep data structures

  • Plane sweep algorithms often use two data structures:
    1. Event-point schedule
  • Sequence of positions to be assumed by the sweep-line.
    1. Sweep-line status
  • Description of the intersection of the sweep-line with
  • the geometric object(s) being swept at the current event.
  • Sweep line status
  • For the slab method preprocessing, the sweep-line status is a
  • left-to-right sequence of edges of G that intersect the
  • sweep-line.

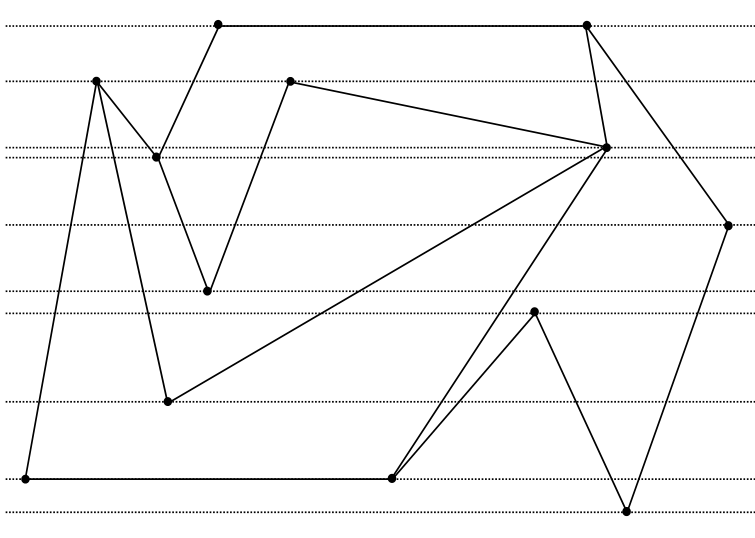

p. 88 - Event processing

  • At each event, i.e., vertex v ∈V,
    1. the edges terminating at v are deleted from the sweep-line status
    1. the edges originating at v are added to the sweep-line status
    1. the sweep-line status data structure is reported,
  • and used to construct a slab.
  • The sweep-line status can be maintained in a height balanced
  • binary tree (e.g., a AVL tree) that provides INSERT
  • and DELETE operations in O(log N).

p. 89 - Preprocessing algorithm

  • Data structures
  • VERTEX
  • Array storing vertices of G,
  • ordered by increasing y-coordinates
  • B[i]
  • Set of edges incident on VERTEX[i] from below,
  • ordered counterclockwise
  • A[i]
  • Set of edges incident on VERTEX[i] from above,
  • ordered clockwise

p. 90 - Preprocessing analysis

  • Preprocessing time: O(N2); O(N) slabs, each requiring O(N)
  • time to construct a slab.
  • There will be at most O(N) insertions and deletions to L,
  • each requiring O(log N) time, so without the slab construction
  • the time required is in O(N log N).
  • Comments
  • The slab method’s O(log N) query time is optimal.
  • Preprocessing time reduced from O(N2 log N) to O(N2) through
  • use of the plane-sweep technique.
  • Still, O(N2) is unacceptable for some applications.

What you must be able to say or do in an exam

  • State the input, output, preprocessing, and query/update model precisely.
  • Explain the invariant or ordering that makes the method work.
  • Trace the method by hand on a small example.
  • Give the exact time and space bounds.
  • Mention one edge case, degeneracy, or limitation.

Complexity and performance facts

Usually O((number of events) log N) plus output size, depending on the problem.

Common mistakes and danger points

  • Do not store everything in the status, only active objects.
  • Correct event ordering and tie handling are part of the algorithm, not implementation trivia.

Exam-style drills and answer skeletons

Definition drill

Question. Give the precise definitions and the most important consequences from plane sweep as a recurring paradigm.

How to answer. A strong answer distinguishes similar objects and uses the course terminology exactly.

Recap

What you must know cold

  • Sweep line or sweep plane idea.
  • Event queue and status structure.
  • Why geometry often becomes easier when you impose a global order.

Core test / key idea

  • Sort critical events such as vertex coordinates, segment endpoints, or intersections.
  • Maintain a balanced structure for currently active objects intersecting the sweep line.
  • Update only when the combinatorial situation changes.

Complexity

  • Usually O((number of events) log N) plus output size, depending on the problem.

Common mistakes / danger points

  • Do not store everything in the status, only active objects.
  • Correct event ordering and tie handling are part of the algorithm, not implementation trivia.

End-of-file summary

  • Sweep line or sweep plane idea.
  • Event queue and status structure.
  • Why geometry often becomes easier when you impose a global order.
  • Usually O((number of events) log N) plus output size, depending on the problem.
  • Do not store everything in the status, only active objects.
  • Correct event ordering and tie handling are part of the algorithm, not implementation trivia.
