Chain method: basics, definitions, and query idea

Scope

  • Slides: pp. 91-101
  • Major topic folder: geometric-search
  • Recording files touching this material: CS 564 - 02.06 5.1.txt
  • Goal of this file: You should be able to study this topic without reopening the slide deck.

Big picture

The chain method is a point-location structure for PSLGs. Conceptually it regularizes the subdivision, builds a monotone complete set of chains, then uses binary search twice.

What you must know cold

  • Regular PSLG idea and monotone chains.
  • How chains partition the subdivision into searchable regions.
  • Two-stage query: binary search among chains, then binary search within a chain.

Core ideas and reasoning

  • A chain is monotone with respect to the chosen axis, so its vertices appear in order by projection.
  • Two neighboring chains bound a region; locating the query between chains narrows the candidate face.
  • The method is geometric binary search over ordered chains.

Figures to actually look at

These are cropped from the main slide PDF. Do not skip them.

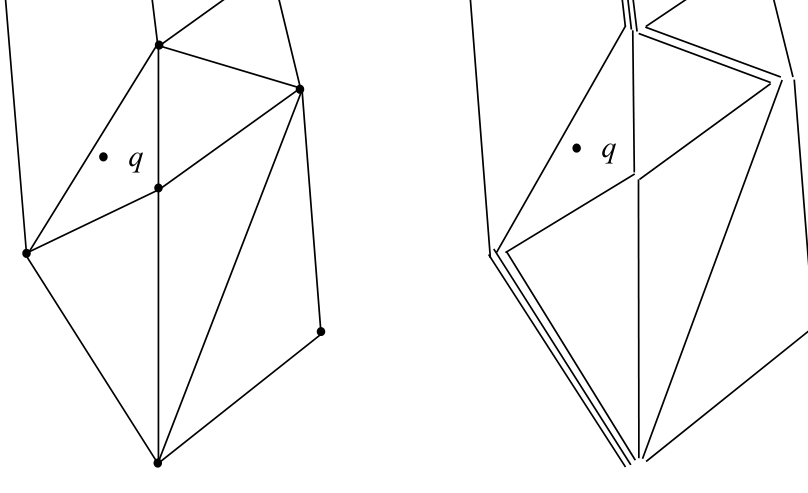

Figure from slide p. 91

Figure from slide p. 91

Figure from slide p. 97

Figure from slide p. 97

Slide-by-slide digestion

p. 91 - Basic idea of the chain method

  • Problem: Point location in the plane, i.e., determine the face
  • of a PSLG G that contains a query point q.
  • Preprocessing:
    1. Convert arbitrary PSLG G into a regular PSLG.
    1. Decompose the regularized PSLG into a set of monotone chains.
  • Query:
    1. Binary search on the chains to find the two chains
  • that are on either side of the query point.
    1. Binary search on one of those chains to determine the face.

p. 92 - Chain method overview, “overture”

  • PSLG G
  • Monotone complete
  • set of chains C for G
  • Regular PSLG G
  • Regularize PSLG G
  • (Text pp. 52-54)
  • Construct C for regular G
  • (Text pp. 50-52)
  • Queries
  • Preprocessing

p. 93 - Definition of a chain

  • A chain C = (v1, v2, ..., vp) is a PSLG with vertex set {v1, v2, ..., vp}
  • and edge set{(vi,vi+1): i = 1, 2, ..., p - 1}.
  • Notational notes:
    1. v for vertices; text uses u on pp. 48-49 and v pp. 50-55.
    1. ( ... ) sequence, { ... } unordered set
  • A chain is a planar embedding of a graph theoretic chain.
  • Sometimes called polygonal line.

p. 94 - Subdividing a PSLG with a chain

  • Consider a chain C which is a subgraph of PSLG G
  • and has as its extreme endpoints vertices on the boundary of G.
  • Suppose C is extended from those endpoints
  • with semi-infinite parallel rays.
  • C subdivides the partition of the plane induced by G into two parts.

p. 95 - Point-chain discrimination

  • To use a binary search for point location based on chains,
  • we must be able to determine which side of a chain C
  • a query point q is on.
  • That operation is point-chain discrimination.
  • Point-chain discrimination against an arbitrary chain
  • is equivalent in difficulty to general polygon inclusion,
  • requiring O(N) time.
  • We need to do better than O(N) for the binary search comparison.
  • To do so we need a more restricted type of chain.

p. 96 - Monotone chains

  • A chain C = (v1, v2, ..., vp) is monotone w.r.t. a line l if a line
  • orthogonal to l intersects C in at most one point.
  • There is no “doubling back” or “overlap” of C w.r.t. l.
  • Note two small errors in the text:
  • p. 49, Definition 2.2:
  • “... in exactly one point.” should be “... at most one point.”
  • For example, line m is orthogonal to l, intersects C in zero points.
  • Definition 2.2 is correct iff C has been extended with the previously
  • mentioned semi-infinite rays, but the definition doesn’t say so.
  • p. 49, Figure 2.11(b)

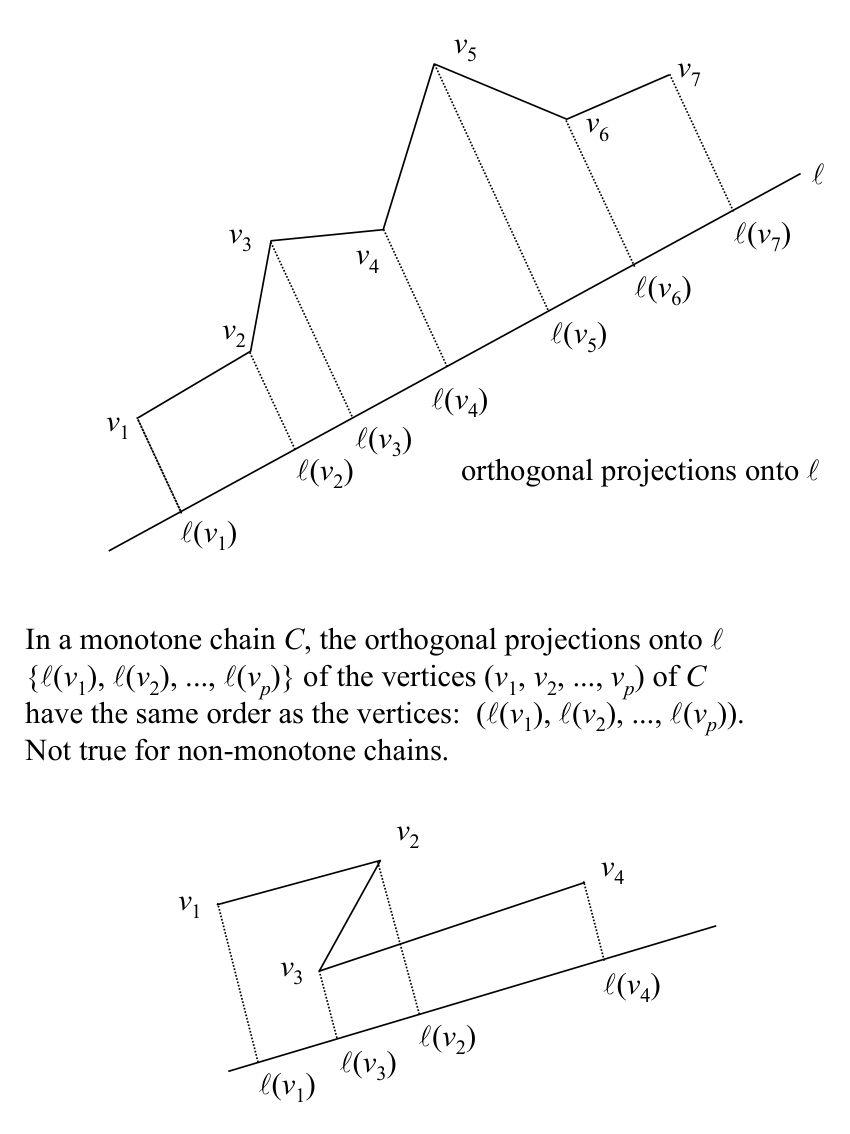

p. 97 - In a monotone chain C, the orthogonal projections onto l

  • {l(v1), l(v2), ..., l(vp)} of the vertices (v1, v2, ..., vp) of C
  • have the same order as the vertices: (l(v1), l(v2), ..., l(vp)).
  • Not true for non-monotone chains.
  • orthogonal projections onto l

p. 98 - Point-chain discrimination with a monotone chain

  • The point-chain discrimination operation can be performed
  • more efficiently with a monotone chain.
  • Assumptions:
    1. Chain C has been extended with the semi-infinite rays.
    1. The orthogonal projections (l(v1), l(v2), ..., l(vp))
  • of the vertices of C have been computed
  • and stored in a searchable data structure (preprocessing).
  • Operation:
    1. Compute orthogonal projection l(q) of q on l. O(1)
    1. Binary search “on l” for i ∋l(vi) ≤l(q) ≤l(vi+1). O(log N)

p. 99 - Point location query with monotone chains, part 1

  • Given an O(log N) point-chain discrimination operation,
  • how can it be used for a point location query?
  • Suppose there is a set C = {C1, C2, ..., Cr} of chains
  • that are monotone w.r.t. the same line l
  • and with these two properties:
  • (1) The union of the members of C contains the PSLG G
  • (a given edge of G may be in more than one chain in C).
  • (2) For any two chains Ci and Cj of C , the vertices of Ci
  • which are not members of Cj lie on the same side of Cj.
  • Such a set C is a monotone complete set of chains of G.

p. 100 - Point location query with monotone chains, part 2

  • Property 2 means that the chains of C are ordered.
  • Therefore, C can be binary searched with the
  • point-chain discrimination operation as the comparison operator.
  • If there are r chains and the longest has p vertices,
  • the search uses O(log r · log p) time.
  • Because r and p ∈O(N), the search is in O((log N)2).
  • The latter is often written O(log2 N), e.g., see text p. 56.
  • (For clarity, not all rays shown.)

p. 101 - Chain method overview, “reprise 1”

  • PSLG G
  • Monotone complete
  • set of chains C for G
  • Regular PSLG G
  • Regularize PSLG G
  • (Text pp. 52-54)
  • Construct C for regular G
  • (Text pp. 50-52)
  • Queries
  • Preprocessing

What you must be able to say or do in an exam

  • State the input, output, preprocessing, and query/update model precisely.
  • Explain the invariant or ordering that makes the method work.
  • Trace the method by hand on a small example.
  • Give the exact time and space bounds.
  • Mention one edge case, degeneracy, or limitation.

Complexity and performance facts

Fast query time after significant preprocessing to regularize the PSLG and construct the chains.

Common mistakes and danger points

  • The query logic only makes sense after regularization and complete chain construction.
  • Know exactly what “monotone” means relative to the chosen axis.

Professor emphasis from recordings

These points are distilled from the related recordings and focus on what the professor slowed down for, warned about, or connected to homework/exam reasoning.

  • The point of the chain method in the lectures is to beat the naive slab idea by organizing the subdivision into monotone chains rather than storing every slab independently.
  • He repeatedly ties the query procedure to locating the two neighboring chains around the query point, then identifying the face trapped between them.

Exam-style drills and answer skeletons

Core exam drill

Question. State the problem solved by chain method: basics, definitions, and query idea, describe preprocessing/query/update steps if any, and give the time and space bounds.

How to answer. An excellent answer names the input, the output, the invariant or ordering exploited by the method, and the exact asymptotic costs.

Hand-trace drill

Question. Trace chain method: basics, definitions, and query idea on a small example by hand and explain each comparison or structural change.

How to answer. On this course, being able to run the method on a picture matters more than writing vague slogans.

Recap

What you must know cold

  • Regular PSLG idea and monotone chains.
  • How chains partition the subdivision into searchable regions.
  • Two-stage query: binary search among chains, then binary search within a chain.

Core test / key idea

  • A chain is monotone with respect to the chosen axis, so its vertices appear in order by projection.
  • Two neighboring chains bound a region; locating the query between chains narrows the candidate face.
  • The method is geometric binary search over ordered chains.

Complexity

  • Fast query time after significant preprocessing to regularize the PSLG and construct the chains.

Common mistakes / danger points

  • The query logic only makes sense after regularization and complete chain construction.
  • Know exactly what “monotone” means relative to the chosen axis.

Professor emphasis (from recordings)

  • The point of the chain method in the lectures is to beat the naive slab idea by organizing the subdivision into monotone chains rather than storing every slab independently.
  • He repeatedly ties the query procedure to locating the two neighboring chains around the query point, then identifying the face trapped between them.

End-of-file summary

  • Regular PSLG idea and monotone chains.
  • How chains partition the subdivision into searchable regions.
  • Two-stage query: binary search among chains, then binary search within a chain.
  • Fast query time after significant preprocessing to regularize the PSLG and construct the chains.
  • The query logic only makes sense after regularization and complete chain construction.
  • Know exactly what “monotone” means relative to the chosen axis.
