Chain method: regular PSLGs and constructing the chain family

Scope

  • Slides: pp. 102-109
  • Major topic folder: geometric-search
  • Recording files touching this material: CS 564 - 02.06 5.1.txt
  • Goal of this file: You should be able to study this topic without reopening the slide deck.

Big picture

This is the construction phase students often hand-wave. Do not. The chain method is only as good as the monotone complete set it builds.

What you must know cold

  • What a regular PSLG is.
  • Edge orientation by vertex order.
  • Graph-weight balancing idea behind constructing a monotone complete chain family.

Core ideas and reasoning

  • Edges are directed from lower to higher ordered vertex.
  • Weights are assigned so that for each non-extreme vertex, total incoming and outgoing weight balance.
  • The second pass peels off chains according to these weights until a monotone complete set is produced.

Figures to actually look at

These are cropped from the main slide PDF. Do not skip them.

Figure from slide p. 102

Figure from slide p. 102

Figure from slide p. 107

Figure from slide p. 107

Slide-by-slide digestion

p. 102 - Definition of regular PSLG

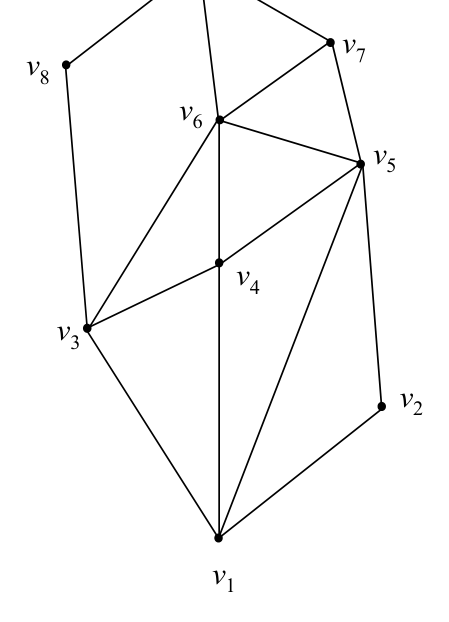

  • Let G be a PSLG with vertex set (v1, v2, ..., vN),
  • where the vertices are indexed ∋i < j iff
  • either y(vi) < y(vj) or, if y(vi) = y(vj), then x(vi) > x(vj).
  • A vertex vj is regular if there are integers 1 ≤i < j < k ≤N
  • ∋vivj and vjvk are edges of G.
  • PSLG G is regular iff every vertex vj for 1 < j < N of G
  • is regular (i.e., except v1 and vN).
  • v9 = v N

p. 103 - Edge orientation in a regular PSLG

  • We may think of an edge vivj as directed from vi to vj if i < j.
  • Thus, for a specific vertex vj, all edges vivj with i < j are
  • “incoming” and all edges vjvk with j < k are “outgoing”.
  • We can define for a vertex vj
  • IN(vj) as the set of incoming edges to vj , ordered counterclockwise,
  • OUT(vj) as the set of outgoing edges from vj, ordered clockwise.
  • Due to the hypothesis of regularity, both of these sets are
  • non-empty for non-extreme vertices.
  • v9 = v N
  • IN(v6) = (v3, v4, v5)

p. 104 - Constructing C, part 1

  • For any vertex vj (j ≠ 1) in a regular PSLG, we can construct a
  • y-monotone chain from v1 to vj.
  • (y-monotone ≡ monotone w.r.t. the y axis)
  • This can be proven by mathematical induction.
  • Basis step. Let j = 2. Edge v1v2 must exist in G by the definition
  • of regularity, and completes the chain.
  • Induction step. Assume ∃ a chain from v1 to vk, ∀ k < j.
  • Because vj is regular, ∃ some i < j ∋ vivj is an edge of G.
  • By the inductive hypothesis, ∃ a y-monotone chain from v1 to vi.
  • Adding edge vivj to that chain gives the desired y-monotone

p. 105 - Constructing C, part 2

  • Those properties are:
  • (1) The union of the members of C contains the PSLG G
  • (a given edge of G may be in more than one chain in C).
  • (2) For any two chains Ci and Cj of C , the vertices of Ci
  • which are not members of Cj lie on the same side of Cj.
  • Let W(e), the weight of edge e, be the number of chains
  • to which edge e belongs. Also let
  • WIN(v) =
  • ∑ W(e)
  • Sum of weights of “incoming” edges

p. 106 - Constructing C, part 3

  • Assigning edges weights ∋WIN(vj) = WOUT(vj) is an old problem.
  • A two pass algorithm accomplishes it.
  • All weights W(e) are initialized to 1.
  • The first pass ensures that WIN(vj) ≤WOUT(vj) for 1 < j < N.
  • The second pass ensures WIN(vj) ≥WOUT(vj), for 1 < j < N.
  • Together these give the desired balancing.
  • Let vIN(v) = |IN(v)| and vOUT(v) = |OUT(v)|.
procedure WeightBalancingInRegularPSLG(G)
begin
  for each edge e in G do
    w(e) ← initial weight  { slide: how many chains will use e }
  repeat
    for each interior vertex v of the regular PSLG do
      rebalance weights on the edges incident to v per the slide’s local rules
  until weights stable after an O(N) sweep  { assigns chain multiplicities; does not emit chains }
end

p. 107 - Constructing C, part 4

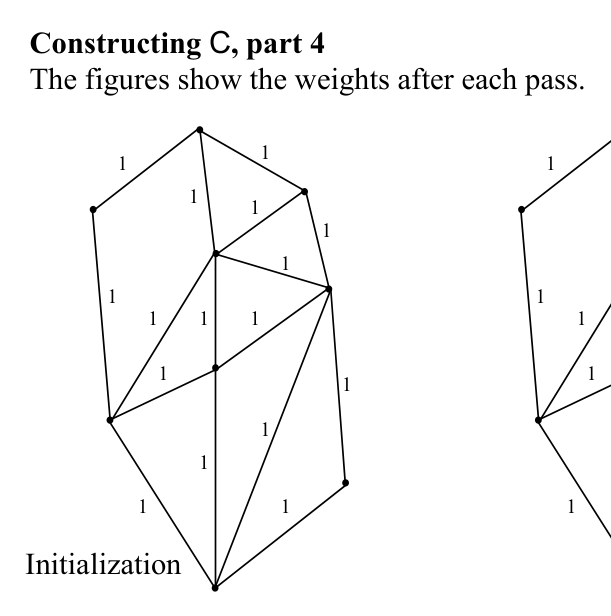

  • The figures show the weights after each pass.
  • Initialization
  • 2nd pass
  • 1st pass

p. 108 - Constructing C, part 5

  • The algorithm requires O(N) time.
  • Observe that the algorithm assigns weights that tell how many
  • chains each edge will be in, but it does not actually construct chains.
  • How are the chains of C actually constructed from G using
  • the edge weights assigned by the weight balancing algorithm?
  • The chains can be built up during the second pass,
  • as the pass proceeds from vertex to vertex.
  • The details are left as an exercise.

p. 109 - Chain method overview, “reprise 2”

  • PSLG G
  • Monotone complete
  • set of chains C for G
  • Regular PSLG G
  • Regularize PSLG G
  • (Text pp. 52-54)
  • Construct C for regular G
  • (Text pp. 50-52)
  • Queries
  • Preprocessing
