Chain method: regularization of arbitrary PSLGs

Scope

  • Slides: pp. 110-115
  • Major topic folder: geometric-search
  • Recording files touching this material: CS 564 - 02.06 5.2.txt
  • Goal of this file: You should be able to study this topic without reopening the slide deck.

Big picture

Regularization is the unpleasant but necessary surgery step. Arbitrary PSLGs do not automatically satisfy the assumptions the chain method wants, so the structure is repaired first.

What you must know cold

  • Why arbitrary PSLGs may violate regularity assumptions.
  • How adding structure or splitting edges/vertices restores regularity.
  • Why this preprocessing does not change the point-location answer.

Core ideas and reasoning

  • The regularization pass removes problematic local configurations that would break monotone-chain decomposition.
  • The goal is to preserve the subdivision semantics while making the combinatorics suitable for binary search.

Figures to actually look at

These are cropped from the main slide PDF. Do not skip them.

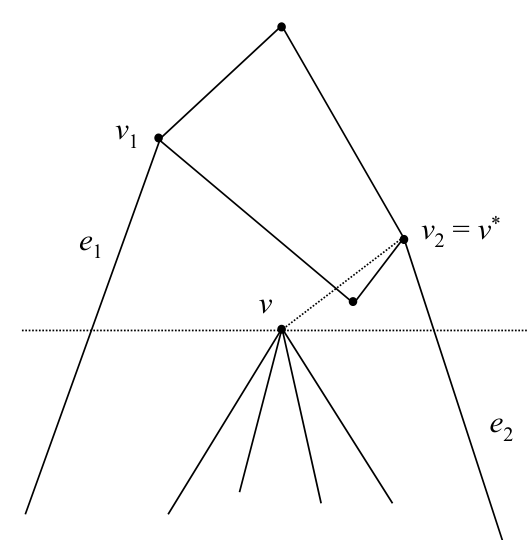

Figure from slide p. 112

Figure from slide p. 112

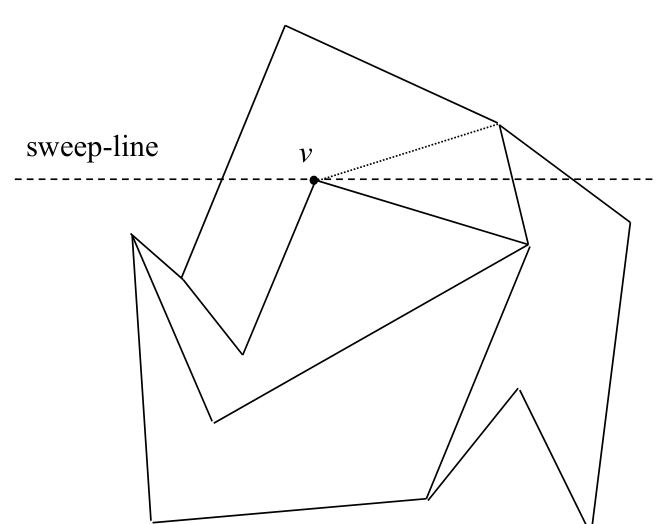

Figure from slide p. 114

Figure from slide p. 114

Slide-by-slide digestion

p. 110 - Regularizing an arbitrary PSLG

  • A vertex fails to be regular if incoming or outgoing edges
  • mandated by the definition are missing.
  • In the example, v6 has no outgoing edge and is not regular.
  • To regularize a PSLG, the missing edges must be added
  • to those vertices where they are missing.
  • A PSLG is regularized by regularizing each non-regular vertex.
  • The process may add “artificial” faces by splitting existing ones.
  • The two faces share the same identity for point location purposes.

p. 111 - Regularizing a vertex, part 1

  • Consider a nonregular vertex v with no outgoing edges.
  • A horizontal line through v will intersect at least one
  • and at most two edges adjacent to v on either side.
  • (There may be additional intersected edges beyond e1 and e2,
  • these are the adjacent ones.)
  • There will be at least one such edge because v is not extremal
  • (v ≠v1, v ≠vN).
  • Let v1 be the upper endpoint of e1 ,
  • and let v2 be the upper endpoint of e2.
  • (These indices are for the example, they are not the regular indices.)

p. 112 - Regularizing a vertex, part 2

  • Text, p. 52:
  • “Then the segment vv* does not cross any edge of G and therefore
  • can be added to the PSLG, thereby regularizing vertex v.”
  • Is that correct? I don’t think so. Consider the example.
  • v2 = v*
  • Edges e1 and e2 are still the edges adjacent to the non-regular
  • vertex v along the horizontal line, but edge vv* can not
  • be added to G.

p. 113 - Regularizing a vertex, part 3

  • We turn from the observation to the regularization process.
  • In overview:
  • Regularization requires two plane sweeps of the PSLG:
    1. top-to-bottom, to regularize vertices with no outgoing edge
    1. bottom-to-top, to regularize vertices with no incoming edge
  • Consider the top-to-bottom sweep.
  • The event-point schedule is the vertex sequence (vN, vN-1, ..., v1).
  • The sweep-line status data structure maintains
    1. the left-to-right order of the intersections of the sweep-line with
  • the PSLG, which induce intervals along the sweep-line, and

p. 114 - Regularizing a vertex, part 4

  • For each event (each vertex v):
    1. Find the interval in the sweep-line status that contains v.
    1. Update the sweep-line status.
    1. If v is not regular, add an edge from v to the vertex
  • associated in the sweep-line status data structure with the
  • interval found for v in step 1.
  • Each sweep requires O(N log N) time; it may be necessary to sort
  • the vertices into the event-point schedule requiring O(N log N) time,
  • and during the sweep there will be O(N) insertions and deletions,
  • each requiring O(log N) time.

p. 115 - Regularizing a vertex, part 5

  • Does the process actually run in O(N log N) time? I’m not sure.
  • How do we know whether to connect v to v1 or v2 ?
  • By whether v is to right or to the left of the intersection of edge e
  • and the sweep-line, which must be computed at the event for v.
  • ⇒The intersection point with the sweep-line for all active edges
  • (i.e., those in the sweep-line status data structure) must be computed
  • at each event.
  • ⇒O(N) processing per event.
  • ⇒O(N2) total processing.
  • sweep-line

What you must be able to say or do in an exam

  • State the input, output, preprocessing, and query/update model precisely.
  • Explain the invariant or ordering that makes the method work.
  • Trace the method by hand on a small example.
  • Give the exact time and space bounds.
  • Mention one edge case, degeneracy, or limitation.

Complexity and performance facts

This preprocessing can dominate implementation complexity; the query benefit comes afterward.

Common mistakes and danger points

  • Textbook/slides may gloss over details. If a configuration breaks regularity, you must say how it is fixed.
  • Regularization should preserve face containment answers.

Professor emphasis from recordings

These points are distilled from the related recordings and focus on what the professor slowed down for, warned about, or connected to homework/exam reasoning.

  • Regularization is treated as the repair step that forces an arbitrary PSLG into the conditions required by the chain method.
  • The key thing to remember is not the cosmetic picture change, but why regularity is needed so each horizontal slice behaves predictably.

Exam-style drills and answer skeletons

Existing drill reminders from the earlier pack: - Adapted from HW2-Q4: Modify graph-weight balancing so the second pass constructs a monotone complete set of chains.

Core exam drill

Question. State the problem solved by chain method: regularization of arbitrary pslgs, describe preprocessing/query/update steps if any, and give the time and space bounds.

How to answer. An excellent answer names the input, the output, the invariant or ordering exploited by the method, and the exact asymptotic costs.

Hand-trace drill

Question. Trace chain method: regularization of arbitrary pslgs on a small example by hand and explain each comparison or structural change.

How to answer. On this course, being able to run the method on a picture matters more than writing vague slogans.

Recap

What you must know cold

  • Why arbitrary PSLGs may violate regularity assumptions.
  • How adding structure or splitting edges/vertices restores regularity.
  • Why this preprocessing does not change the point-location answer.

Core test / key idea

  • The regularization pass removes problematic local configurations that would break monotone-chain decomposition.
  • The goal is to preserve the subdivision semantics while making the combinatorics suitable for binary search.

Complexity

  • This preprocessing can dominate implementation complexity; the query benefit comes afterward.

Common mistakes / danger points

  • Textbook/slides may gloss over details. If a configuration breaks regularity, you must say how it is fixed.
  • Regularization should preserve face containment answers.

Professor emphasis (from recordings)

  • Regularization is treated as the repair step that forces an arbitrary PSLG into the conditions required by the chain method.
  • The key thing to remember is not the cosmetic picture change, but why regularity is needed so each horizontal slice behaves predictably.

End-of-file summary

  • Why arbitrary PSLGs may violate regularity assumptions.
  • How adding structure or splitting edges/vertices restores regularity.
  • Why this preprocessing does not change the point-location answer.
  • This preprocessing can dominate implementation complexity; the query benefit comes afterward.
  • Textbook/slides may gloss over details. If a configuration breaks regularity, you must say how it is fixed.
  • Regularization should preserve face containment answers.
