Chain method: analysis and wrap-up

Scope

  • Slides: pp. 116-117
  • Major topic folder: geometric-search
  • Recording files touching this material: CS 564 - 02.06 5.2.txt
  • Goal of this file: You should be able to study this topic without reopening the slide deck.

Big picture

This short range is where you convert the construction story into formal performance claims. The method is only exam-safe when you can say what preprocessing buys you and at what cost.

What you must know cold

  • What data is stored after preprocessing.
  • How many binary-search steps happen during a query.
  • Trade-off relative to simpler point-location methods like slabs.

Core ideas and reasoning

  • Query time comes from binary search over an ordered family of chains plus local search on a chain.
  • Preprocessing and storage are more involved than brute force, but the pay-off is sublinear query time.

Figures to actually look at

These are cropped from the main slide PDF. Do not skip them.

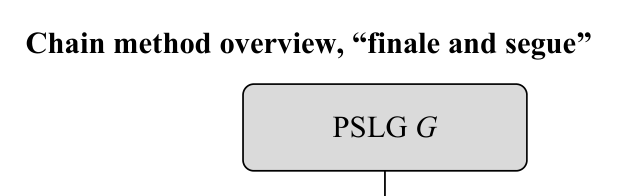

Figure from slide p. 117

Figure from slide p. 117

Slide-by-slide digestion

p. 116 - Chain method analysis

  • Query: O(log2 N)
  • Binary search O(log N) with each comparison taking O(log N)
  • Preprocessing: O(N log N)
  • Regularizing G, O(N log N)
  • Constructing C from regular G, O(N)
  • Space: O(N)
  • See text pp. 54-55 for details of space analysis.

p. 117 - Chain method overview, “finale and segue”

  • PSLG G
  • Monotone complete
  • set of chains C for G
  • Regular PSLG G
  • Regularize PSLG G
  • (Text pp. 52-54)
  • Construct C for regular G
  • (Text pp. 50-52)
  • Queries
  • Preprocessing

What you must be able to say or do in an exam

  • State the claim precisely before giving the argument.
  • Identify the known lower bound / recurrence / invariant you are using.
  • Keep the direction of the argument correct.
  • End with the exact asymptotic conclusion.

Complexity and performance facts

State the course version of preprocessing, storage, and query bounds exactly as given in the slides.

Common mistakes and danger points

  • Do not describe the query bound without also describing what was precomputed to achieve it.

Exam-style drills and answer skeletons

Existing drill reminders from the earlier pack: - Adapted from HW2-Q4: Modify graph-weight balancing so the second pass constructs a monotone complete set of chains.

Proof drill

Question. Explain the main argument in chain method: analysis and wrap-up in a logically correct order.

How to answer. Do not jump from intuition to conclusion. State the reduction/invariant/recurrence first, then derive the claimed bound.

Recap

What you must know cold

  • What data is stored after preprocessing.
  • How many binary-search steps happen during a query.
  • Trade-off relative to simpler point-location methods like slabs.

Core test / key idea

  • Query time comes from binary search over an ordered family of chains plus local search on a chain.
  • Preprocessing and storage are more involved than brute force, but the pay-off is sublinear query time.

Complexity

  • State the course version of preprocessing, storage, and query bounds exactly as given in the slides.

Common mistakes / danger points

  • Do not describe the query bound without also describing what was precomputed to achieve it.

End-of-file summary

  • What data is stored after preprocessing.
  • How many binary-search steps happen during a query.
  • Trade-off relative to simpler point-location methods like slabs.
  • State the course version of preprocessing, storage, and query bounds exactly as given in the slides.
  • Do not describe the query bound without also describing what was precomputed to achieve it.
