Triangle refinement: setup and triangulation

Scope

  • Slides: pp. 118-122
  • Major topic folder: geometric-search
  • Recording files touching this material: CS 564 - 02.11 6.1.txt
  • Goal of this file: You should be able to study this topic without reopening the slide deck.

Big picture

Triangle refinement is the second major point-location framework. Instead of chains, it builds a hierarchy of triangulations plus a search DAG.

What you must know cold

  • Triangulate the PSLG.
  • Build a sequence of coarser/finer triangulations.
  • Interpret the links between levels as a directed acyclic search graph.

Core ideas and reasoning

  • A triangle at one level points to the few triangles that refine it at the next level.
  • The hierarchy turns point location into a descent through progressively smaller containing triangles.

Figures to actually look at

These are cropped from the main slide PDF. Do not skip them.

Figure from slide p. 119

Figure from slide p. 119

Figure from slide p. 120

Figure from slide p. 120

Slide-by-slide digestion

p. 118 - Triangle refinement method

  • PSLG G
  • Directed acyclic
  • search graph T
  • Triangulated PSLG G
  • Triangulate PSLG G
  • (To be covered later)
  • Construct sequence of triangulations
  • and directed acyclic search graph T
  • (PS pp. 56-58)
  • Queries

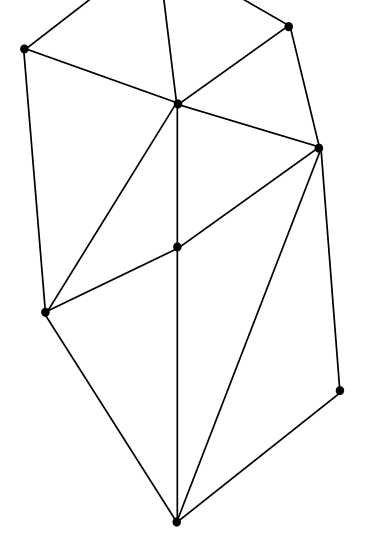

p. 119 - Triangulation

  • A planar subdivision (e.g., a PSLG) is a triangulation
  • if all its bounded regions are triangles.
  • Not a triangulation
  • Triangulation
  • A triangulation of a finite set of points S is a planar graph on S
  • with the maximum number of edges. There may be more than
  • one triangulation for a given S, but they all have this property.
  • The number of edges in a triangulation is at most 3N - 6,
  • where N is the number of vertices. (Prove this statement by
  • applying induction on N).

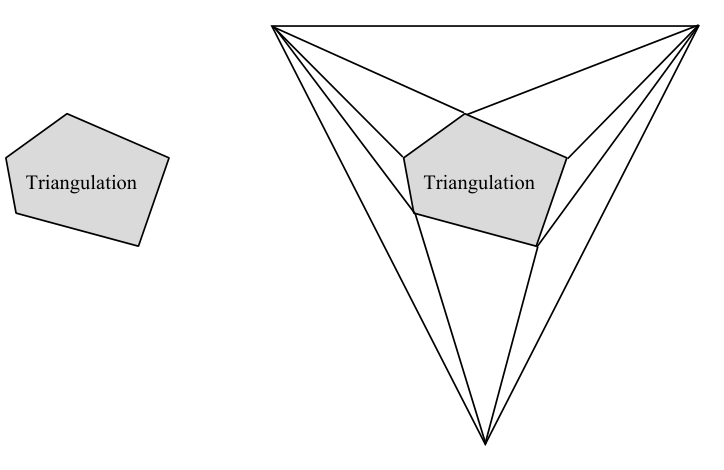

p. 120 - Triangulating G, part 1

  • We assume that the PSLG given in the point location problem is
  • a triangulation; if not, it is transformed into one in O(N) time.
  • We will study triangulation algorithms later.
  • We further assume that the triangulation has a triangular boundary.
  • If not, one can be added in O(1) time by adding three vertices
  • and triangulating the “inbetween” region.
  • This will produce a triangulation with the maximum
  • number of edges 3N-6. ( Prove this statement)
  • Triangulation

p. 121 - Triangulating G, part 2

  • Note that the text, published in 1985, says O(N log N) time is
  • needed for the triangulation (p. 56).
  • Chazelle published an O(N) triangulation algorithm in 1991;
  • see O’Rourke pp. 64-65.
  • Explaining Chazelle’s algorithm would be a (challenging)
  • course project.
  • Hereinafter, we assume:
    1. G is a triangulation
    1. G has a triangular boundary
    1. G has exactly 3N - 6 edges (∈O(N))

p. 122 - Triangle refinement method

  • PSLG G
  • Directed acyclic
  • search graph T
  • Triangulated PSLG G
  • Triangulate PSLG G
  • (To be covered later)
  • Construct a sequence of triangulations
  • and directed acyclic search graph T
  • (PS pp. 56-58)
  • Queries

What you must be able to say or do in an exam

  • State the input, output, preprocessing, and query/update model precisely.
  • Explain the invariant or ordering that makes the method work.
  • Trace the method by hand on a small example.
  • Give the exact time and space bounds.
  • Mention one edge case, degeneracy, or limitation.

Complexity and performance facts

Preprocessing constructs the triangulations and DAG; query follows one path down the DAG.

Common mistakes and danger points

  • The hierarchy is over triangulations, not arbitrary faces.
  • You need the containment/refinement relationship to justify the search path.

Exam-style drills and answer skeletons

Core exam drill

Question. State the problem solved by triangle refinement: setup and triangulation, describe preprocessing/query/update steps if any, and give the time and space bounds.

How to answer. An excellent answer names the input, the output, the invariant or ordering exploited by the method, and the exact asymptotic costs.

Hand-trace drill

Question. Trace triangle refinement: setup and triangulation on a small example by hand and explain each comparison or structural change.

How to answer. On this course, being able to run the method on a picture matters more than writing vague slogans.

Recap

What you must know cold

  • Triangulate the PSLG.
  • Build a sequence of coarser/finer triangulations.
  • Interpret the links between levels as a directed acyclic search graph.

Core test / key idea

  • A triangle at one level points to the few triangles that refine it at the next level.
  • The hierarchy turns point location into a descent through progressively smaller containing triangles.

Complexity

  • Preprocessing constructs the triangulations and DAG; query follows one path down the DAG.

Common mistakes / danger points

  • The hierarchy is over triangulations, not arbitrary faces.
  • You need the containment/refinement relationship to justify the search path.

End-of-file summary

  • Triangulate the PSLG.
  • Build a sequence of coarser/finer triangulations.
  • Interpret the links between levels as a directed acyclic search graph.
  • Preprocessing constructs the triangulations and DAG; query follows one path down the DAG.
  • The hierarchy is over triangulations, not arbitrary faces.
  • You need the containment/refinement relationship to justify the search path.
