Triangle refinement: hierarchy, query, storage, and analysis

Scope

  • Slides: pp. 123-134
  • Major topic folder: geometric-search
  • Recording files touching this material: CS 564 - 02.11 6.1.txt
  • Goal of this file: You should be able to study this topic without reopening the slide deck.

Big picture

This is the operative part of triangle refinement: how you descend the DAG, what you store, and why the path length stays logarithmic or near-logarithmic in the course analysis.

What you must know cold

  • How to test which child triangle contains the query point.
  • Why each level narrows the search region.
  • Storage and search-graph size issues.

Core ideas and reasoning

  • Start from a top-level triangle covering the subdivision.
  • At each level, perform point-in-triangle tests on the few candidate children and move to the unique containing child.
  • Stop at a leaf triangle and recover the face in the original PSLG.

Figures to actually look at

These are cropped from the main slide PDF. Do not skip them.

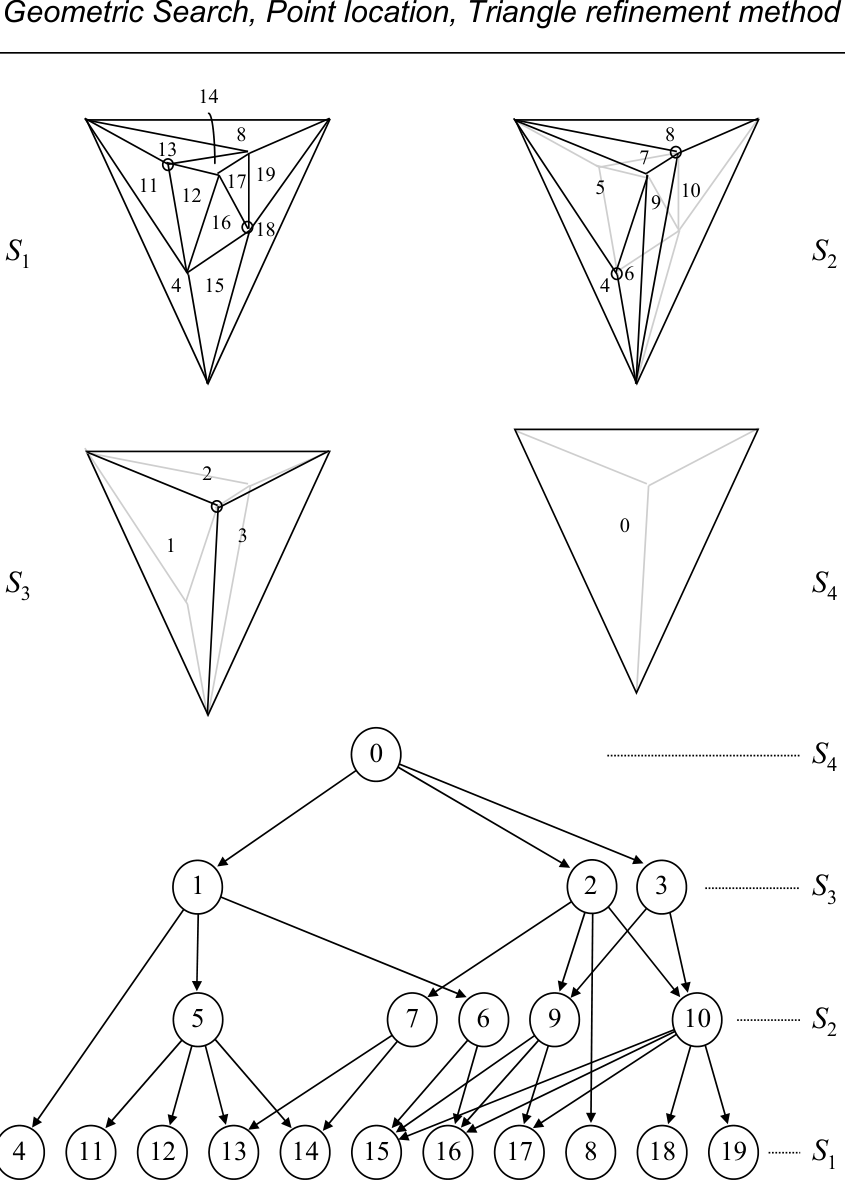

Figure from slide p. 125

Figure from slide p. 125

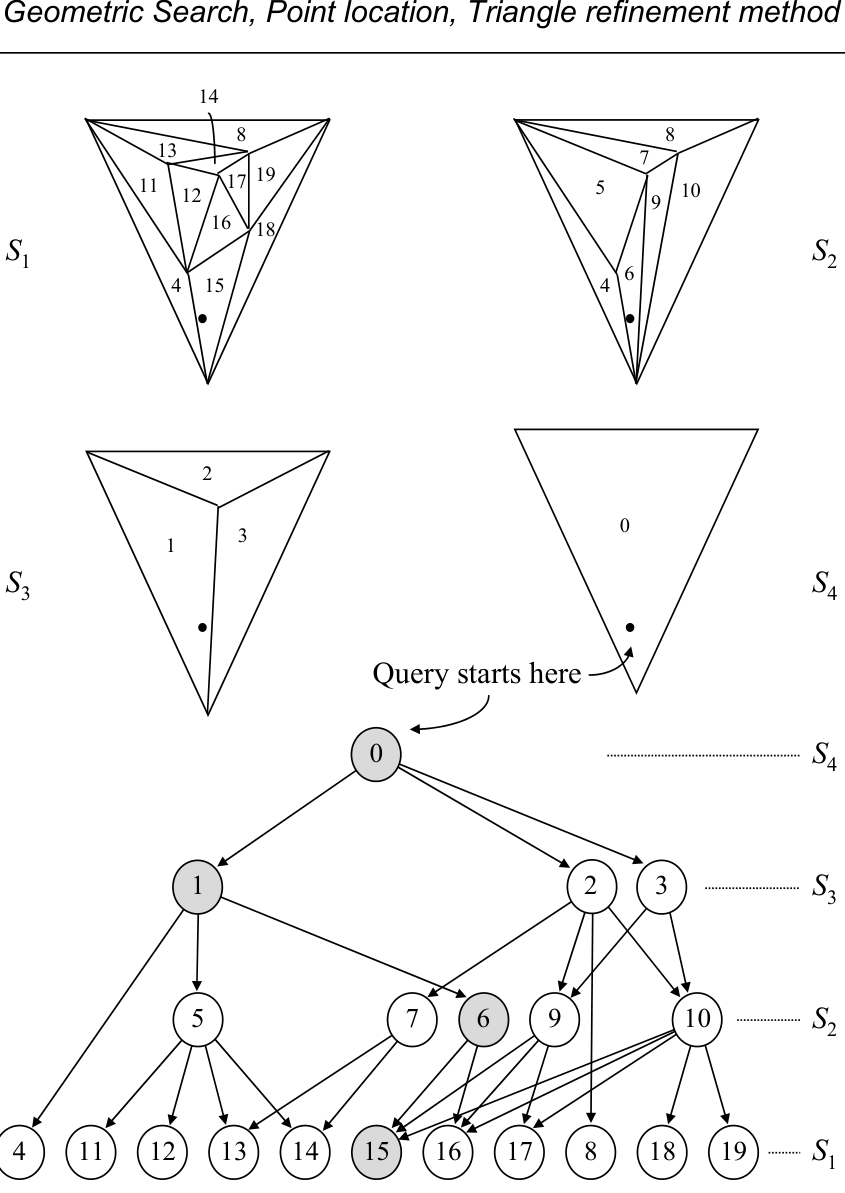

Figure from slide p. 128

Figure from slide p. 128

Slide-by-slide digestion

p. 123 - Sequence of triangulations

  • We have triangulation G with N vertices. Construct a sequence of
  • triangulations S1, S2, ..., Sh(N), where S1 = G and Si is obtained from
  • Si-1 as follows:
  • (1) Remove a maximal independent set of nonboundary vertices of
  • Si-1 and their incident edges. A set of vertices of a graph (in our
  • case a planar graph) is said to be independent if no two pair of
  • vertices are adjacent in the graph. A maximal set is one such that
  • adding one more vertex will make at least one pair of vertices to
  • become adjacent. How this set is chosen will determine the
  • performance of the algorithm.

p. 124 - Notation

  • The notation Rj denotes a triangle.
  • A triangle Rj may appear in more than one triangulation in
  • the sequence, but is said to belong to triangulation Si
  • if Rj was created in step (2) while constructing Si.
  • Search data structure
  • We now build a search data structure T, an acyclic directed graph.
  • The nodes of T represent triangles.
  • When discussing T, we say “triangle Rj” or just “Rj”
  • when “the node of T that represents Rj” is meant.
  • In T, there is an arc from triangle Rk to triangle Rj if,

p. 125 - Geometric Search, Point location, Triangle refinement method

  • This slide is mainly visual. Use the figure crop in this file and make sure you can explain what the diagram is showing.

p. 126 - Triangle refinement method

  • PSLG G
  • Directed acyclic
  • search graph T
  • Triangulated PSLG G
  • Triangulate PSLG G
  • (To be covered later)
  • Construct sequence of triangulations
  • and directed acyclic search graph T
  • (PS pp. 56-58)
  • Queries

p. 127 - Query process, informal

  • The query process uses a primitive operation, triangle inclusion,
  • which can be computed in O(1) with 3 Left tests.
  • The query begins by determining if the query point q is
  • within the enclosing triangle.
  • If not, the unbounded face is the answer to the query.
  • If it is, the current node is set to the root node of T.
  • Then q is tested for inclusion in the triangle for each of the
  • descendants of the current node; it will be in exactly one.
  • The search advances along the arc to that node,
  • which becomes the current node, and the process repeats.

p. 128 - Query starts here

  • This slide is mainly visual. Use the figure crop in this file and make sure you can explain what the diagram is showing.

p. 129 - Query process

  • Define Γ(v) to be a list of all descendants of node v of T,
  • and TRIANGLE(v) to the triangle represented by node v.
procedure PointLocation(T, q)
begin
  if q ∉ triangle(root(T)) then return “q lies in unbounded face”
  v ← root(T)
  while refined children Γ(v) ≠ ∅ do
    for each child u ∈ Γ(v) do
      if q ∈ triangle(u) then
        v ← u
        break inner loop
  return face / triangle associated with leaf v
end

p. 130 - Query time

  • The choice of the triangulation vertices to be removed
  • in constructing Si from Si-1 determines the performance
  • (query time and storage) of the method.
  • Define Ni as the number of vertices in triangulation Si.
  • Suppose it was possible to choose vertices to be removed
  • such that these properties hold:
  • (1) Ni = αiNi-1, with αi ≤α < 1 for i = 2, ..., h(N).
  • αi < 1 ⇒Ni < Ni-1,
  • i.e., each successive triangulation Si is smaller than Si-1.
  • All are smaller than their predecessor by at least α.

p. 131 - Storage

  • Properties (1) and (2) imply O(N) storage required for T.
  • Here’s why:
  • Storage for T includes storage for nodes and for pointers.
  • How may nodes? One per triangle in S1, S2, ..., Sh(N).
  • How many triangles?
  • Si contains Fi < 2Ni triangles,
  • by Euler’s formula, p. 19, f ≤2v - 4.
  • Total triangles for the sequence of triangulations is
  • ≤ 2N1 + 2αN1 + 2α2N1 + ... + 2αi-1Ni + ... + 2αh(N)-1N1
  • Sh(N)

p. 132 - Justifying the properties, part 1

  • Having shown that properties (1) and (2)
  • lead to a query time ∈O(log N) and storage ∈O(N),
  • the question remains:
  • how can the vertices to be removed when constructing the sequence
  • of triangulations be selected to satisfy the properties?
  • The selection criteria to be used is:
  • “Remove a set of nonadjacent vertices of degree less than K.”
  • Integer K will be given a value momentarily.
  • The order of selection at each stage is not important. Procedure:
  • (1) Arbitrarily select one vertex with degree less than K to remove.

p. 133 - Justifying the properties, part 2

  • To show property (1) we use properties of planar graphs.
  • Euler’s formula for a triangulation with a 3 edge boundary is
  • e = 3v - 6
  • where e is number of edges and v is number of vertices (v = N)
  • Assume there exist internal vertices in the triangulation, i.e., N > 3.
  • ⇒Each boundary vertex has degree ≥3.
  • There are 3N - 6 edges and each edge contributes 2 to the sum
  • of vertex degrees for the triangulation.
  • ⇒Sum of vertex degrees=2*e < 6N.
  • ⇒∃at least N/2 vertices of degree < 12.

p. 134 - Analysis

  • Query time: O(log N)
  • Storage: O(N)
  • Preprocessing: O(N log N) or O(N)?
  • The steps in preprocessing consists of triangulation of the
  • PSLG (takes O(NlogN) time [or O(N) time if one used
  • Chazelle’s algorithm), finding maximal independent set
  • (O(N) work), retriangulation (takes O(N) time since each
  • new face created has less than 12 sides and retriangulation of
  • the new polygon takes O(1) time and we repeat this for at
  • most the size of the independent set < N. The creation of the

What you must be able to say or do in an exam

  • State the input, output, preprocessing, and query/update model precisely.
  • Explain the invariant or ordering that makes the method work.
  • Trace the method by hand on a small example.
  • Give the exact time and space bounds.
  • Mention one edge case, degeneracy, or limitation.

Complexity and performance facts

The course presentation emphasizes search depth and search-graph size; use the slide statements, not vague guesses.

Common mistakes and danger points

  • “Move to the child containing q” is the conceptual step. In implementation the child set must be explicitly stored and searched.
  • Remember the relationship between triangulation leaves and original subdivision faces.
  • Textual Big-O phrasing: statements should be read as asymptotic membership (e.g., belongs to O(log N)), not mathematical equality; do not turn bounds into false exact equalities.

Exam-style drills and answer skeletons

Core exam drill

Question. State the problem solved by triangle refinement: hierarchy, query, storage, and analysis, describe preprocessing/query/update steps if any, and give the time and space bounds.

How to answer. An excellent answer names the input, the output, the invariant or ordering exploited by the method, and the exact asymptotic costs.

Hand-trace drill

Question. Trace triangle refinement: hierarchy, query, storage, and analysis on a small example by hand and explain each comparison or structural change.

How to answer. On this course, being able to run the method on a picture matters more than writing vague slogans.

Recap

What you must know cold

  • How to test which child triangle contains the query point.
  • Why each level narrows the search region.
  • Storage and search-graph size issues.

Core test / key idea

  • Start from a top-level triangle covering the subdivision.
  • At each level, perform point-in-triangle tests on the few candidate children and move to the unique containing child.
  • Stop at a leaf triangle and recover the face in the original PSLG.

Complexity

  • The course presentation emphasizes search depth and search-graph size; use the slide statements, not vague guesses.

Common mistakes / danger points

  • “Move to the child containing q” is the conceptual step. In implementation the child set must be explicitly stored and searched.
  • Remember the relationship between triangulation leaves and original subdivision faces.
  • Textual Big-O phrasing: statements should be read as asymptotic membership (e.g., belongs to O(log N)), not mathematical equality; do not turn bounds into false exact equalities.

End-of-file summary

  • How to test which child triangle contains the query point.
  • Why each level narrows the search region.
  • Storage and search-graph size issues.
  • The course presentation emphasizes search depth and search-graph size; use the slide statements, not vague guesses.
  • “Move to the child containing q” is the conceptual step. In implementation the child set must be explicitly stored and searched.
  • Remember the relationship between triangulation leaves and original subdivision faces.
