Range searching: problem statement and design space

Scope

  • Slides: pp. 135-137
  • Major topic folder: geometric-search
  • Recording files touching this material: CS 564 - 02.11 6.1.txt
  • Goal of this file: You should be able to study this topic without reopening the slide deck.

Big picture

This is the design-space intro for orthogonal range searching. After this point the course starts comparing data structures by the usual three costs: preprocessing, storage, query time.

What you must know cold

  • Input: static point set S.
  • Query: axis-parallel rectangle or orthogonal range.
  • Output modes: report all points or count them.

Core ideas and reasoning

  • The same problem admits multiple structures depending on assumptions about data distribution and how much space you can afford.
  • You should be able to compare structures, not just memorize isolated formulas.

Figures to actually look at

These are cropped from the main slide PDF. Do not skip them.

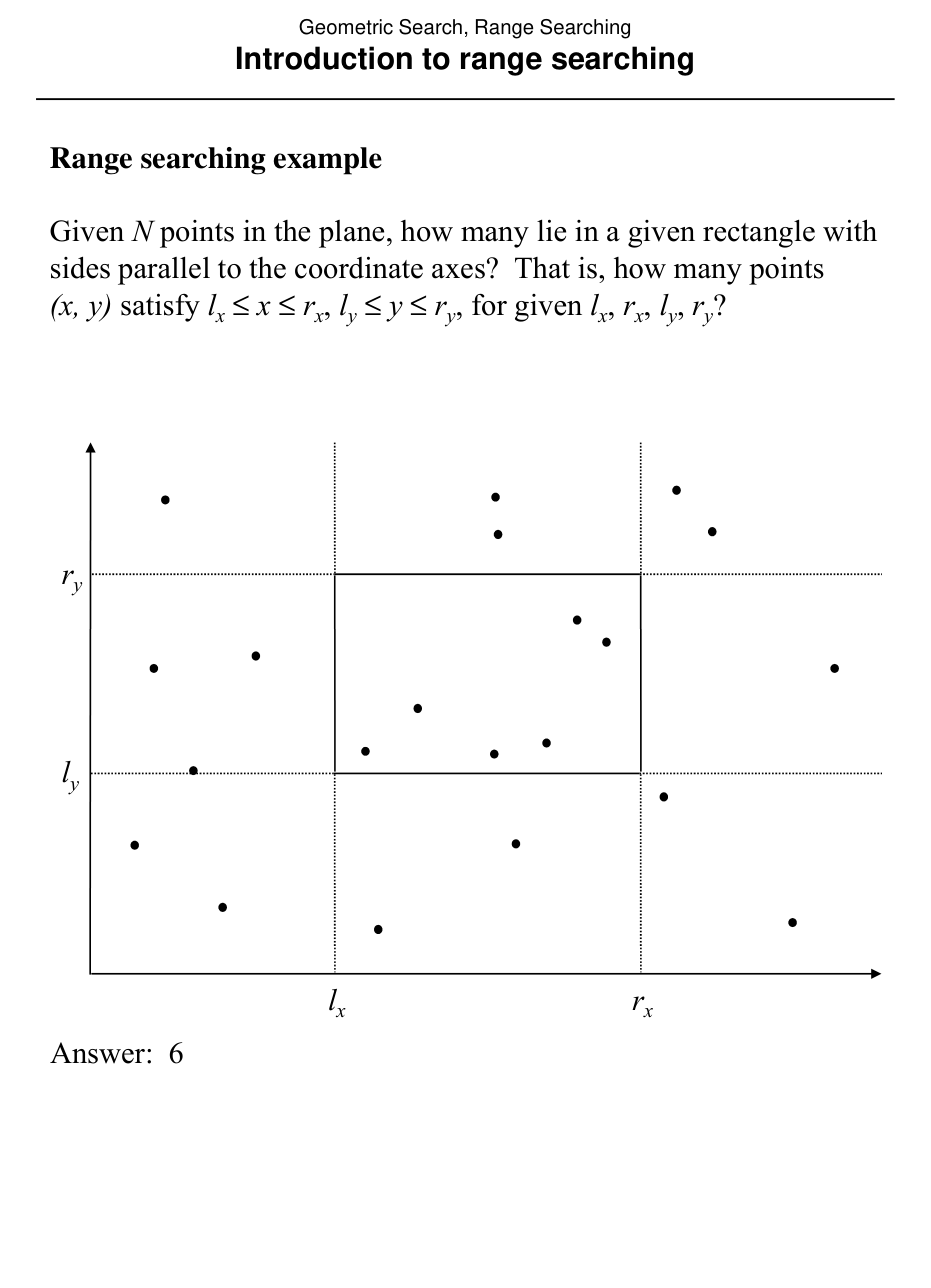

Figure from slide p. 135

Figure from slide p. 135

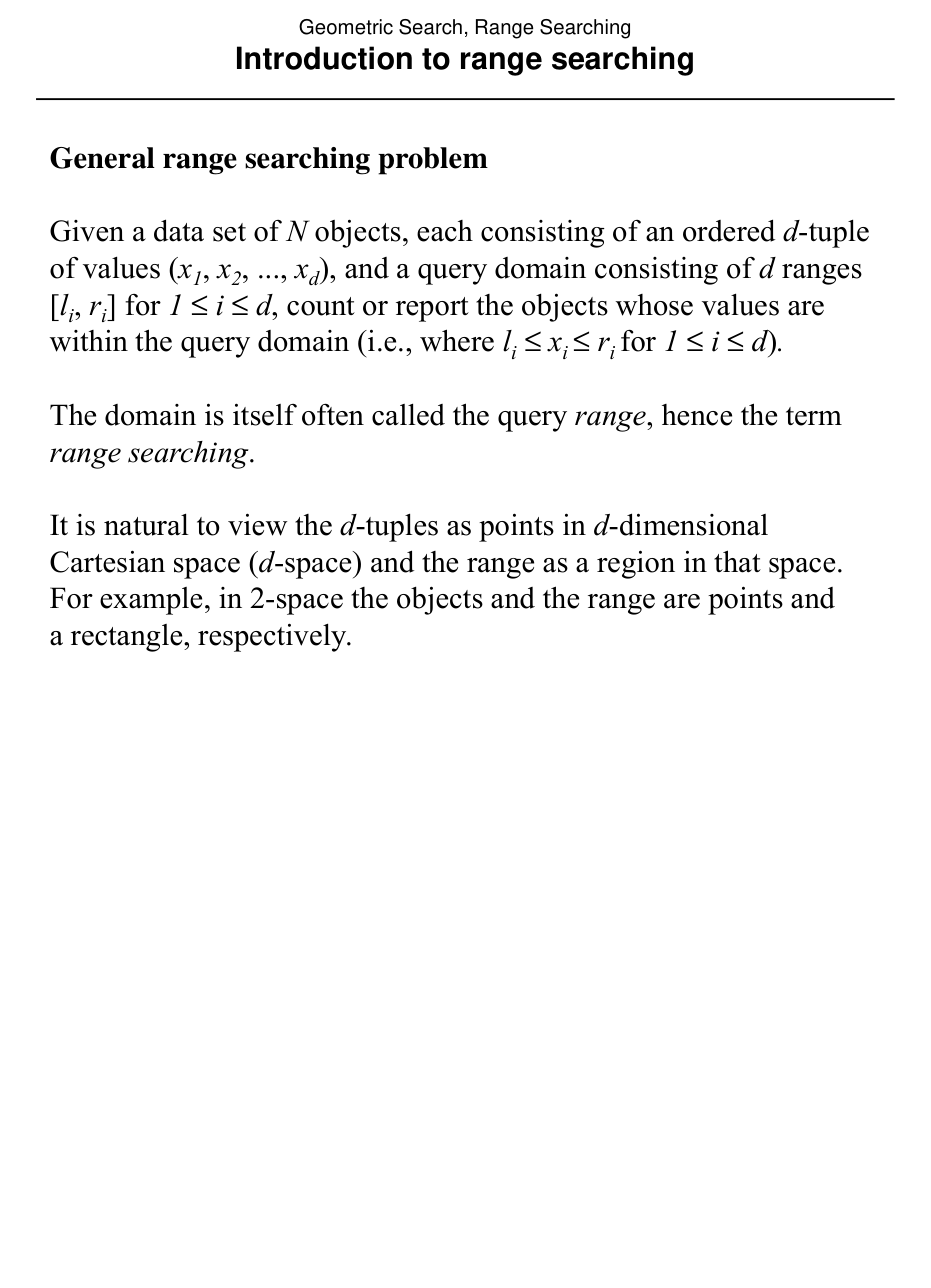

Figure from slide p. 136

Figure from slide p. 136

Slide-by-slide digestion

p. 135 - Introduction to range searching

  • Range searching example
  • Given N points in the plane, how many lie in a given rectangle with
  • sides parallel to the coordinate axes? That is, how many points
  • (x, y) satisfy lx ≤x ≤rx, ly ≤y ≤ry, for given lx, rx, ly, ry?
  • Answer: 6

p. 136 - Introduction to range searching

  • General range searching problem
  • Given a data set of N objects, each consisting of an ordered d-tuple
  • of values (x1, x2, ..., xd), and a query domain consisting of d ranges
  • [li, ri] for 1 ≤i ≤d, count or report the objects whose values are
  • within the query domain (i.e., where li ≤xi ≤ri for 1 ≤i ≤d).
  • The domain is itself often called the query range, hence the term
  • range searching.
  • It is natural to view the d-tuples as points in d-dimensional
  • Cartesian space (d-space) and the range as a region in that space.
  • For example, in 2-space the objects and the range are points and

p. 137 - Standard range searching problem

  • INSTANCE: Set S = {p1, p2, ..., pN} of N points in the plane,
  • pi = (xi, yi) for 1 ≤i ≤N, and rectangular range R = [lx, rx] × [ly, ry],
  • also in the plane.
  • QUESTION: Report the points of S located within R,
  • i.e. points pi ∈S where lx ≤xi ≤rx and ly ≤yi ≤ry.
  • Range searching assumptions
  • Unless otherwise noted, we will assume the following for all
  • range searching problems and algorithms.
    1. Two dimensional, all points and range within plane.
  • 2 All

What you must be able to say or do in an exam

  • Give the precise definitions.
  • Distinguish similar notions cleanly.
  • Use the right primitive test or formula on a concrete example.

Complexity and performance facts

Always state preprocessing, storage, and query/reporting time separately.

Common mistakes and danger points

  • The range is [lx, rx] x [ly, ry], not “the two corners” unless the notation is explicitly converted.
  • Orthogonal range notation pitfall: the query range is the Cartesian product [lx, rx] x [ly, ry]; do not reinterpret the endpoints as two arbitrary corners unless you explicitly convert the notation.

Exam-style drills and answer skeletons

Definition drill

Question. Give the precise definitions and the most important consequences from range searching: problem statement and design space.

How to answer. A strong answer distinguishes similar objects and uses the course terminology exactly.

Recap

What you must know cold

  • Input: static point set S.
  • Query: axis-parallel rectangle or orthogonal range.
  • Output modes: report all points or count them.

Core test / key idea

  • The same problem admits multiple structures depending on assumptions about data distribution and how much space you can afford.
  • You should be able to compare structures, not just memorize isolated formulas.

Complexity

  • Always state preprocessing, storage, and query/reporting time separately.

Common mistakes / danger points

  • The range is [lx, rx] x [ly, ry], not “the two corners” unless the notation is explicitly converted.
  • Orthogonal range notation pitfall: the query range is the Cartesian product [lx, rx] x [ly, ry]; do not reinterpret the endpoints as two arbitrary corners unless you explicitly convert the notation.

End-of-file summary

  • Input: static point set S.
  • Query: axis-parallel rectangle or orthogonal range.
  • Output modes: report all points or count them.
  • Always state preprocessing, storage, and query/reporting time separately.
  • The range is [lx, rx] x [ly, ry], not “the two corners” unless the notation is explicitly converted.
  • Orthogonal range notation pitfall: the query range is the Cartesian product [lx, rx] x [ly, ry]; do not reinterpret the endpoints as two arbitrary corners unless you explicitly convert the notation.
