Quadtree method

Scope

  • Slides: pp. 142-151
  • Major topic folder: geometric-search
  • Recording files touching this material: CS 564 - 02.13 7.1.txt
  • Goal of this file: You should be able to study this topic without reopening the slide deck.

Big picture

Quadtrees adapt the grid idea recursively. Instead of fixing one uniform resolution everywhere, they subdivide only where needed, up to the chosen cutoff rule.

What you must know cold

  • Recursive subdivision into four quadrants.
  • Leaf stopping criterion such as occupancy threshold or maximum depth.
  • Query visits only nodes whose regions intersect the search range.

Core ideas and reasoning

  • A quadtree is still space subdivision, not data-balanced subdivision.
  • This makes it more adaptive than a fixed grid, but still vulnerable to bad worst-case distributions.

Figures to actually look at

These are cropped from the main slide PDF. Do not skip them.

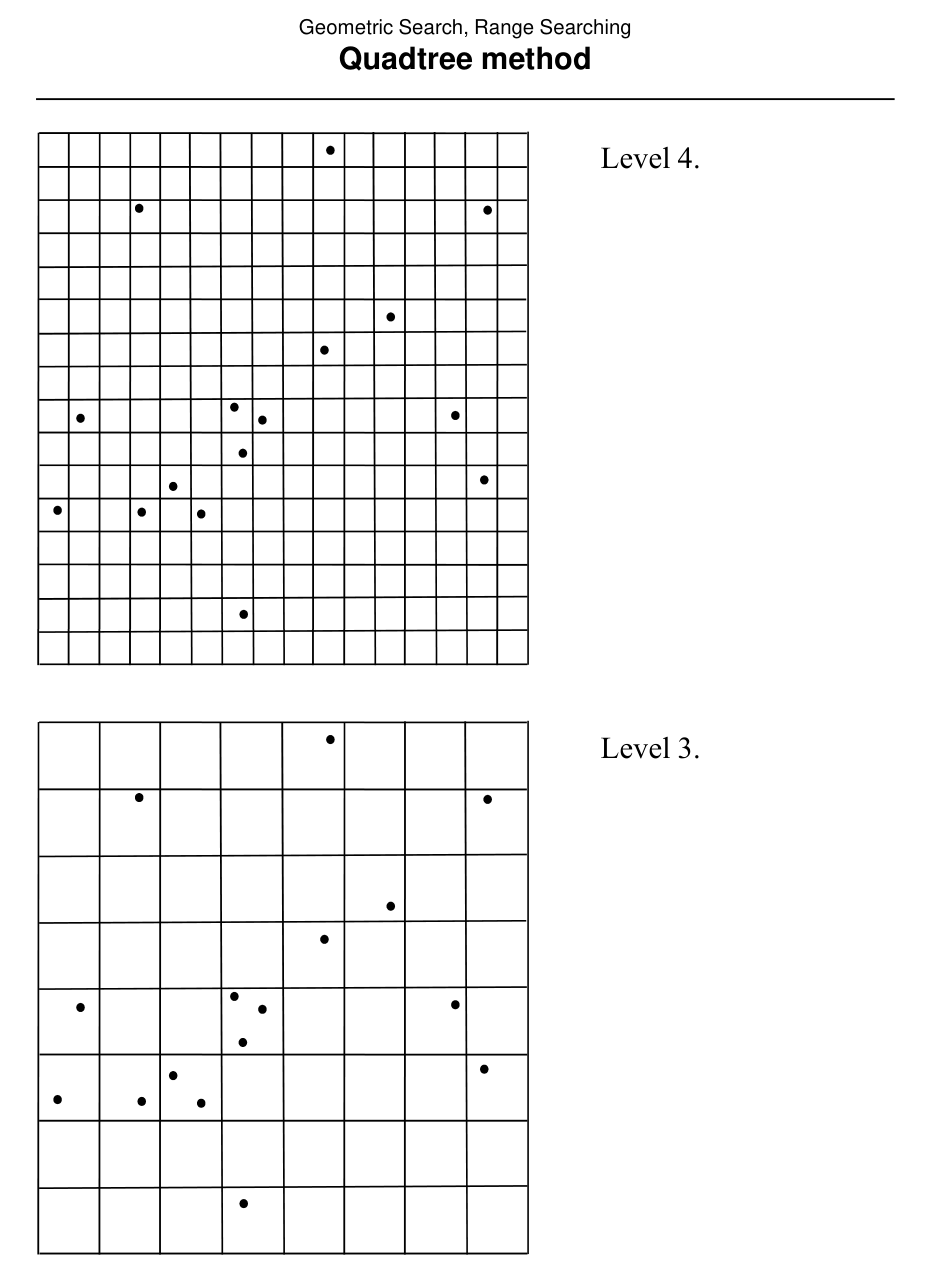

Figure from slide p. 146

Figure from slide p. 146

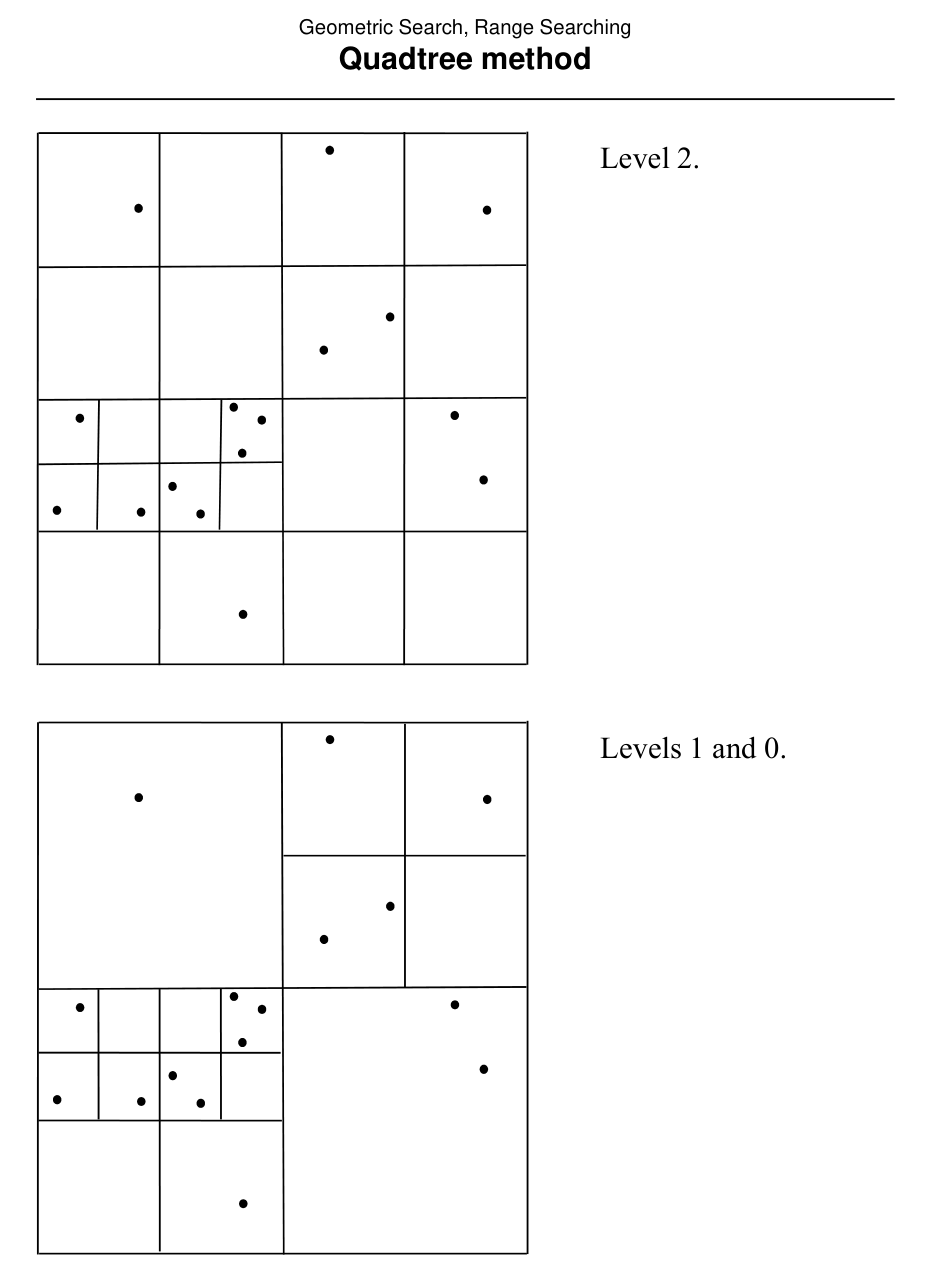

Figure from slide p. 147

Figure from slide p. 147

Slide-by-slide digestion

p. 142 - Quadtree method

  • Definitions
  • A quadtree subdivision is a recursive subdivision of the plane into
  • four equal sized quadrants. A quad is a quadrant or subquadrant
  • at any level of the subdivision, including the plane itself.
  • Each quad is represented by a node in a four-way branching tree
  • called a quadtree. (The root represents the plane.) Each node of
  • a quadtree has either 0 or 4 children, depending on whether the
  • corresponding quad is subdivided. Each non-root node represents
  • one subquadrant of its parent’s quad.
  • Subdivision of a quad recurses until:

p. 143 - Quadtree method

  • Point data set S.
  • Quadtree subdivision
  • for S with M = 2 and
  • D = 3.
  • Quad where D = 3
  • cut off further
  • subdivision.

p. 144 - Quadtree method

  • Quadtree subdivision
  • for S with M = 2 and
  • D = 3.
  • Quad where D = 3
  • cut off further
  • subdivision.
  • Corresponding
  • quadtree.
  • Branch numbering convention
  • Attached point list (showing number of points)

p. 145 - Quadtree method

  • Construction
  • A quadtree is built over a square subset of the plane, or domain,
  • defined to include all points of S; domain = [Lx, Rx] × [Ly, Ry].
  • Domain subdivided into a regular m × m grid of square cells,
  • each containing a list of points of S located in that cell; m = 2D + 1.
  • Conceptually, the overall quadtree is built bottom-up from the grid.
  • Associate with each cell a one-node quadtree, at level D + 1.
  • To construct a quadtree with root at level λ, the four quadtrees at
  • level λ + 1 that represent its subquadrants are “combined”.
  • To “combine” quadtrees q0, q1, q2, q3 at level λ + 1:

p. 146 - Quadtree method

  • Level 4.
  • Level 3.

p. 147 - Quadtree method

  • Level 2.
  • Levels 1 and 0.

p. 148 - Quadtree method

  • Preprocessing
  • Quadtree node q
  • q.points
  • List of points of S within quad for this node; NULL if not leaf.
  • q.child[4] Pointers to subtrees, NULL if leaf.
  • Number of points within quads represented by the subtree rooted at this node.
  • q.quad
  • Boundaries of the quad represented by this node; format [lx, rx] × [ly, ry].
  • Q = ConstructQuadtree(G, M, D, 0, 0, m-1, 0, m-1, domain)
procedure ConstructQuadtree(G, M, D, level, imin, imax, jmin, jmax, quad)
begin
  { G: m×m grid of lists; quad is node for cell [imin..imax]×[jmin..jmax]; D = max depth }
  if level = D or cell has ≤ 1 point then
    quad ← leaf storing merged point lists from G over this cell
    return
  imid ← ⌊(imin + imax) / 2⌋
  jmid ← ⌊(jmin + jmax) / 2⌋
  recursively build quad.child[0..3] for the four sub-quadrants (SW, SE, NW, NE)
end

p. 149 - Quadtree method

  • jmid + 1
  • jmax
  • (l + r ) / 2
  • (lx + rx) / 2
  • Geometry of recursive calls in CreateQuadtree
  • jmid
  • jmin
  • İmid+1
  • imax
  • (ly + ry) / 2

p. 150 - Quadtree method

  • Query
  • QueryQuadtree(root(Q),R)
/* Q is quadtree, R = [lx, rx] × [ly, ry] is range. */
procedure QueryQuadtree(q, R)
begin
  if q.quad ∩ R = ∅ then return
  if q is leaf (all q.child[k] = NULL) then
    for each point pi on q.points do
      if pi ∈ R then report pi
    return
  for k ← 0 to 3 do
    if q.child[k] ≠ NULL then QueryQuadtree(q.child[k], R)
end

p. 151 - Quadtree method

  • Analysis
  • Preprocessing: O(m2 + N); recall that m = 2D + 1.
  • Query: O(2D + N).
  • Storage: O(m2 + N).
  • Analysis comments
  • Note that ConstructQuadtree is O(m2), not O(m2 + N), because
  • point lists rather than points are handled (appending 4 lists can be
  • done in constant time). However, constructing the grid G, input to
  • ConstructQuadtree, is O(m2 + N).
  • Th

What you must be able to say or do in an exam

  • State the input, output, preprocessing, and query/update model precisely.
  • Explain the invariant or ordering that makes the method work.
  • Trace the method by hand on a small example.
  • Give the exact time and space bounds.
  • Mention one edge case, degeneracy, or limitation.

Complexity and performance facts

Often better in practice than a flat grid, but worst-case bounds remain distribution-sensitive.

Common mistakes and danger points

  • Leaves need not be at the same depth.
  • Boundary overlap handling matters when deciding whether to recurse, report a whole subtree, or inspect stored points.

Exam-style drills and answer skeletons

Core exam drill

Question. State the problem solved by quadtree method, describe preprocessing/query/update steps if any, and give the time and space bounds.

How to answer. An excellent answer names the input, the output, the invariant or ordering exploited by the method, and the exact asymptotic costs.

Hand-trace drill

Question. Trace quadtree method on a small example by hand and explain each comparison or structural change.

How to answer. On this course, being able to run the method on a picture matters more than writing vague slogans.

Recap

What you must know cold

  • Recursive subdivision into four quadrants.
  • Leaf stopping criterion such as occupancy threshold or maximum depth.
  • Query visits only nodes whose regions intersect the search range.

Core test / key idea

  • A quadtree is still space subdivision, not data-balanced subdivision.
  • This makes it more adaptive than a fixed grid, but still vulnerable to bad worst-case distributions.

Complexity

  • Often better in practice than a flat grid, but worst-case bounds remain distribution-sensitive.

Common mistakes / danger points

  • Leaves need not be at the same depth.
  • Boundary overlap handling matters when deciding whether to recurse, report a whole subtree, or inspect stored points.

End-of-file summary

  • Recursive subdivision into four quadrants.
  • Leaf stopping criterion such as occupancy threshold or maximum depth.
  • Query visits only nodes whose regions intersect the search range.
  • Often better in practice than a flat grid, but worst-case bounds remain distribution-sensitive.
  • Leaves need not be at the same depth.
  • Boundary overlap handling matters when deciding whether to recurse, report a whole subtree, or inspect stored points.
  • Previous file in reading order: Grid method
  • Next file in reading order: k-d tree method
  • Source slide range: pp. 142-151 of comp_geometry_slides_new.pdf
  • Related recordings: CS 564 - 02.13 7.1.txt
  • Related homework-derived exam prompts included here: none directly mapped; generic exam drills added instead
