k-d tree method

Scope

  • Slides: pp. 152-160
  • Major topic folder: geometric-search
  • Recording files touching this material: CS 564 - 02.13 7.2.txt
  • Goal of this file: You should be able to study this topic without reopening the slide deck.

Big picture

The k-d tree is the first range-search structure in this block that subdivides based on the data rather than the ambient space. That is why its worst-case story is better.

What you must know cold

  • Alternate vertical and horizontal splits.
  • Choose splitting points/medians so subproblems are roughly balanced.
  • Query recursively visits only subtrees whose regions intersect the search range.

Core ideas and reasoning

  • Each node stores a point and induces an axis-aligned region for its subtree.
  • Balance comes from splitting by median coordinate, not by a fixed background grid.
  • This is why the structure supports logarithmic-style search behavior in the balanced case.

Figures to actually look at

These are cropped from the main slide PDF. Do not skip them.

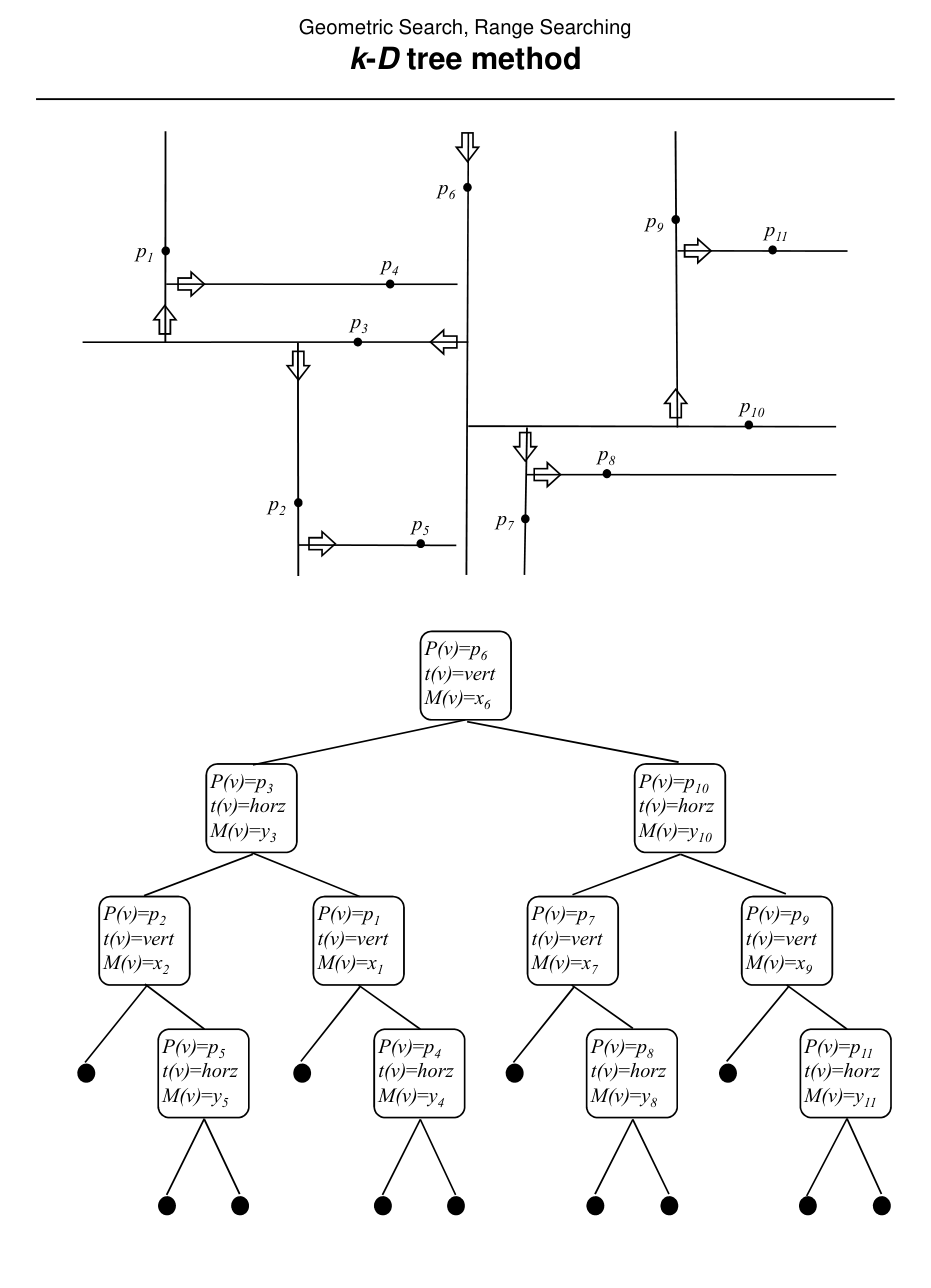

Figure from slide p. 154

Figure from slide p. 154

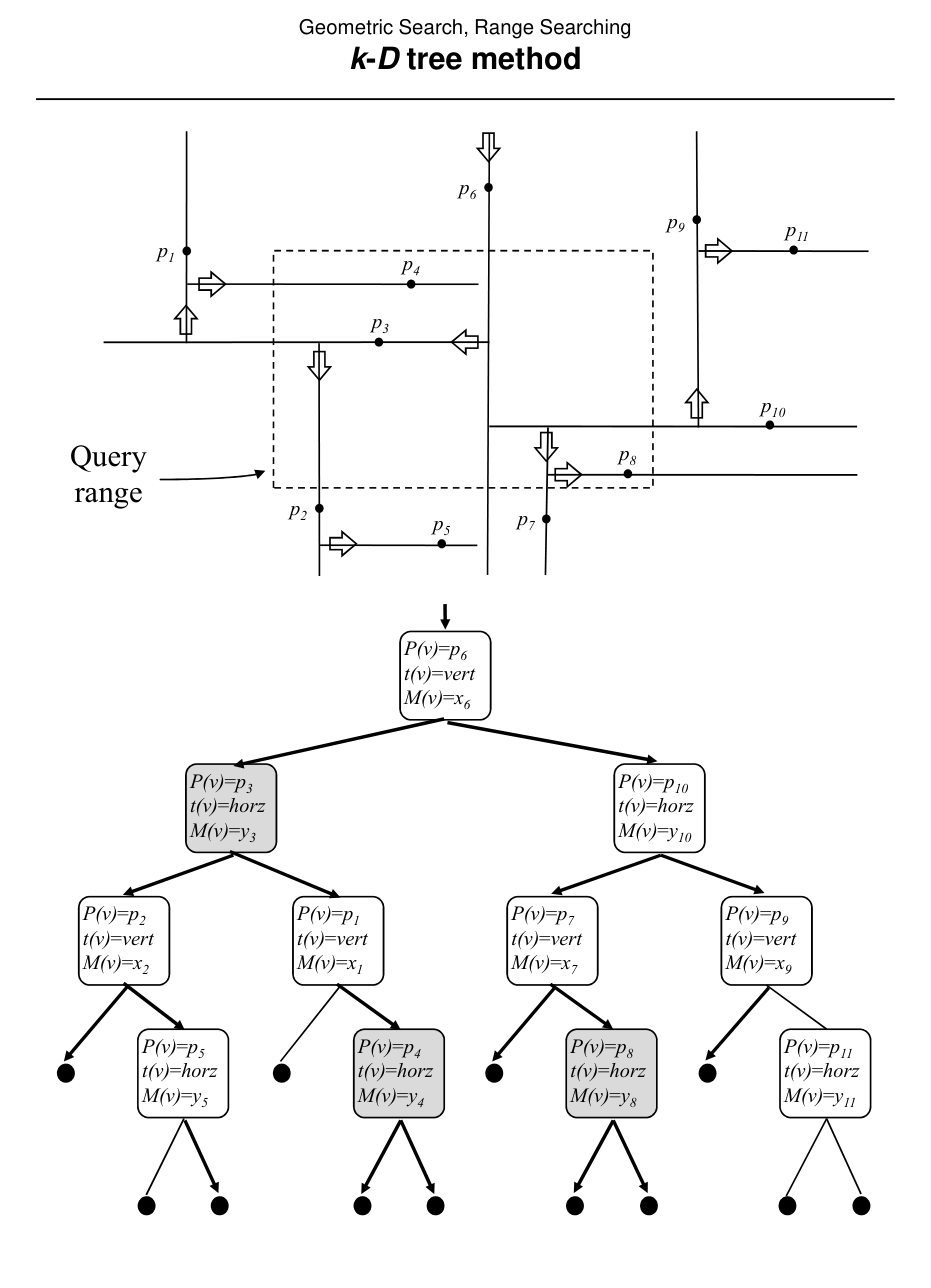

Figure from slide p. 158

Figure from slide p. 158

Slide-by-slide digestion

p. 152 - k-D tree method

  • Concept
  • Grid and Quadtree methods subdivide plane based on space, not
  • data set, leading to poor worst case performance. Following
  • methods subdivide plane based on points in data set.
  • A k-dimensional binary tree (k-D tree) recursively subdivides the
  • plane into half-planes, in alternating orthogonal directions, at lines
  • determined by the points of S. Each subdivision results in
  • approximately equal numbers of points on either side of the
  • bisecting line, allowing bisecting (binary) search.
  • Th

p. 153 - A two-dimensional binary search tree is constructed associated

  • with the given set of points S (pre-processing step).
  • A node v in the tree is associated with a point P(v) of S and a
  • line l(v) [ parallel to x- or y-axis] is assumed to pass through it.
  • A rectangle R(v) is associated with v. The line l(v) divides R(v)
  • into two regions R1 and R2.
  • Search continues in region
  • R2 since R2 covers D∩R(v).
  • D may or may not contain P(v).
  • Search must continue in both R1
  • and R2.

p. 154 - k-D tree method

  • P(v)=p6
  • t(v)=vert
  • M(v)=x6
  • P(v)=p10
  • t(v)=horz
  • M(v)=y10
  • P(v)=p3
  • M(v)=y3
  • P(v)=p2
  • M(v)=x2

p. 155 - k-D tree method

  • Preprocessing
  • Data associated with each node v of k-D tree:
  • Explicit
  • P(v) Point through which plane is bisected.
  • t(v)
  • Direction of bisection, t(v) ∈{horz, vert}.
  • M(v) x (or y) value of bisecting line.
  • Implicit
  • R(v) Rectangle (half-plane) on P(v)’s side of
  • the bisecting line associated with Parent(v).

p. 156 - k-D tree method

  • Preprocessing
procedure CreatekDNode(S, t)   /* S: point set; t ∈ {vert, horz} */
begin
  if S = ∅ then return NULL
  allocate node v; v.t ← t
  if t = vert then
    choose pi ∈ S with median x-coordinate xi among S
    M(v) ← xi
    SL ← { pj ∈ S \ {pi} : xj < xi }
    SR ← { pj ∈ S \ {pi} : xj > xi }
  else
    choose pi ∈ S with median y-coordinate yi among S
    M(v) ← yi
    SL ← { pj ∈ S \ {pi} : yj < yi }
    SR ← { pj ∈ S \ {pi} : yj > yi }
  t_next ← the other orientation of t  { alternate vertical / horizontal splits }
  v.left  ← CreatekDNode(SL, t_next)
  v.right ← CreatekDNode(SR, t_next)
  return v
end

p. 157 - Analysis

  • The preprocessing time is O(nlogn) for d=2. The argument goes
  • as follows:
    1. Using O(nlogn) time sort the points along x- and y-axis.
  • For our example, this will produce two lists:
  • L1= (1,2,3,4,5,6,7,8,9,10,11)
  • L2= (5,7,2,8,10,3,4,1,11,9,6)
    1. Pick the median element point 6 to be the root vertex v. This takes
  • O(1) time.
  • 3.Search L2 with x-coordinate value of point 6..say xm,from left to right.
  • If the x-coordinate of the element is less than xm then put the element

p. 158 - k-D tree method

  • Query
  • range
  • P(v)=p6
  • t(v)=vert
  • M(v)=x6
  • P(v)=p10
  • t(v)=horz
  • M(v)=y10
  • P(v)=p3
  • M(v)=y3

p. 159 - k-D tree method

  • Query
  • SearchkDTree(root(T),R)
/* T is k-D tree; R = [lx, rx] × [ly, ry]. */
procedure SearchkDTree(v, R)
begin
  if v = NULL then return
  if v is leaf then
    report every point stored at v that lies in R
    return
  if t(v) = vert then
    if lx < M(v) then SearchkDTree(v.left, R)
    if rx > M(v) then SearchkDTree(v.right, R)
  else
    if ly < M(v) then SearchkDTree(v.left, R)
    if ry > M(v) then SearchkDTree(v.right, R)
end

p. 160 - k-D tree method

  • Analysis
  • Very complex; algorithm appeared in 1975, analysis not
  • until 1977. See Preparata pp. 77-79 or Laszlo p. 248 for details.
  • Preprocessing: θ(dN log N); d is number of dimensions.
  • Both presort (for median finding) and recurrence for algorithm
  • recursion are O(N log N).
  • Query: O(dN1-1/d + K); e.g. for d = 2, O(√N + K).
  • Storage: O(dN).

What you must be able to say or do in an exam

  • State the input, output, preprocessing, and query/update model precisely.
  • Explain the invariant or ordering that makes the method work.
  • Trace the method by hand on a small example.
  • Give the exact time and space bounds.
  • Mention one edge case, degeneracy, or limitation.

Complexity and performance facts

Balanced construction supports efficient range searching with query time depending on visited nodes plus reported points.

Common mistakes and danger points

  • The split direction alternates by level. The recordings mention a common coding/slide confusion exactly here.
  • Do not describe it as a quadtree with two children. The construction principle is different.

Exam-style drills and answer skeletons

Core exam drill

Question. State the problem solved by k-d tree method, describe preprocessing/query/update steps if any, and give the time and space bounds.

How to answer. An excellent answer names the input, the output, the invariant or ordering exploited by the method, and the exact asymptotic costs.

Hand-trace drill

Question. Trace k-d tree method on a small example by hand and explain each comparison or structural change.

How to answer. On this course, being able to run the method on a picture matters more than writing vague slogans.

Recap

What you must know cold

  • Alternate vertical and horizontal splits.
  • Choose splitting points/medians so subproblems are roughly balanced.
  • Query recursively visits only subtrees whose regions intersect the search range.

Core test / key idea

  • Each node stores a point and induces an axis-aligned region for its subtree.
  • Balance comes from splitting by median coordinate, not by a fixed background grid.
  • This is why the structure supports logarithmic-style search behavior in the balanced case.

Complexity

  • Balanced construction supports efficient range searching with query time depending on visited nodes plus reported points.

Common mistakes / danger points

  • The split direction alternates by level. The recordings mention a common coding/slide confusion exactly here.
  • Do not describe it as a quadtree with two children. The construction principle is different.

End-of-file summary

  • Alternate vertical and horizontal splits.
  • Choose splitting points/medians so subproblems are roughly balanced.
  • Query recursively visits only subtrees whose regions intersect the search range.
  • Balanced construction supports efficient range searching with query time depending on visited nodes plus reported points.
  • The split direction alternates by level. The recordings mention a common coding/slide confusion exactly here.
  • Do not describe it as a quadtree with two children. The construction principle is different.
