Scope

  • Slides: pp. 161-173
  • Major topic folder: geometric-search
  • Recording files touching this material: CS 564 - 02.13 7.2.txt, CS 564 - 02.18 8.1.txt
  • Goal of this file: You should be able to study this topic without reopening the slide deck.

Big picture

These methods are the space-hungry extreme of the design space: precompute answers so aggressively that queries become very fast. This is conceptually important even if it looks absurdly expensive.

What you must know cold

  • Brute force baseline.
  • Normalization of coordinates / ranks.
  • Single-stage and multi-stage direct access as precomputation strategies.

Core ideas and reasoning

  • The extreme idea is to precompute answers for every possible normalized query range.
  • Single-stage direct access spends a huge amount of storage for very small query time.
  • Multi-stage direct access reduces storage by factoring the query into stages.

Figures to actually look at

These are cropped from the main slide PDF. Do not skip them.

Figure from slide p. 165

Figure from slide p. 165

Figure from slide p. 171

Figure from slide p. 171

Slide-by-slide digestion

p. 161 - Direct access method (brute force)

  • Concept
  • Points of S partition plane into (N + 1)2 cells.
  • Given range R = [lx, rx] × [ly, ry], points (lx, ly) and (rx, ry) each lie in
  • a particular cell. Moving one of those points within a cell does not
  • change the answer (the subset of S within R). Thus a pair of cells
  • forms an equivalence class of ranges.
  • ⇒The number of distinct ranges is bounded above by
  • N + 1 2 ∈O(N4).

p. 162 - Direct access method (brute force)

  • Preprocessing
  • Compute and save answer for each of O(N4) different pairs of cells.
  • Query
    1. Given R = [lx, rx] × [ly, ry], map points (lx, ly) and (rx, ry) to cells.
    1. Access and report answer stored for the pair of cells.
  • Analysis
  • Preprocessing: O(N5); O(N4) cells, O(N) linear processing for each.
  • Query: O(log N + K); O(log N) to find cells for range corners
  • Query: O(log N + K); O(log N) to find cells for range corners.
  • Storage: O(N5); O(N4) cells, O(N) elements for each cell.

p. 163 - Normalization

  • Normalization of coordinates
  • It will be useful to have available normalized coordinates for both
  • ranges and points. For points ∈ S, normalized x coordinate is
  • in [1, N], assigned in order of increasing x coordinate.
  • For range R = [lx, rx] × [ly, ry], normalized range is obtained by
  • mapping range extents to normalized coordinates for points. Range
  • normalized x coordinates are in [1, N + 1]. For example,
  • if xi-1 ≤lx ≤ xi, lx normalized is i.
  • points ∈ S
  • normalized coordinates

p. 164 - Direct access method (single stage)

  • Concept
  • One-dimensional binary search is optimal in storage θ(N) and
  • time O(log N + K). Combine direct access on one coordinate (x)
  • with one-dimensional binary search on the other (y).
  • Combination is single stage direct access.
  • Given range R = [lx, rx] × [ly, ry], normalize [lx, rx] to (i, j);
  • normalized range will have 1 ≤i ≤j ≤N + 1.
  • Use x-range (i, j) to access entry in direct access array.
  • Each array entry points to a binary search tree which holds points
  • of S with normalized coordinates in [i, j], stored in ascending

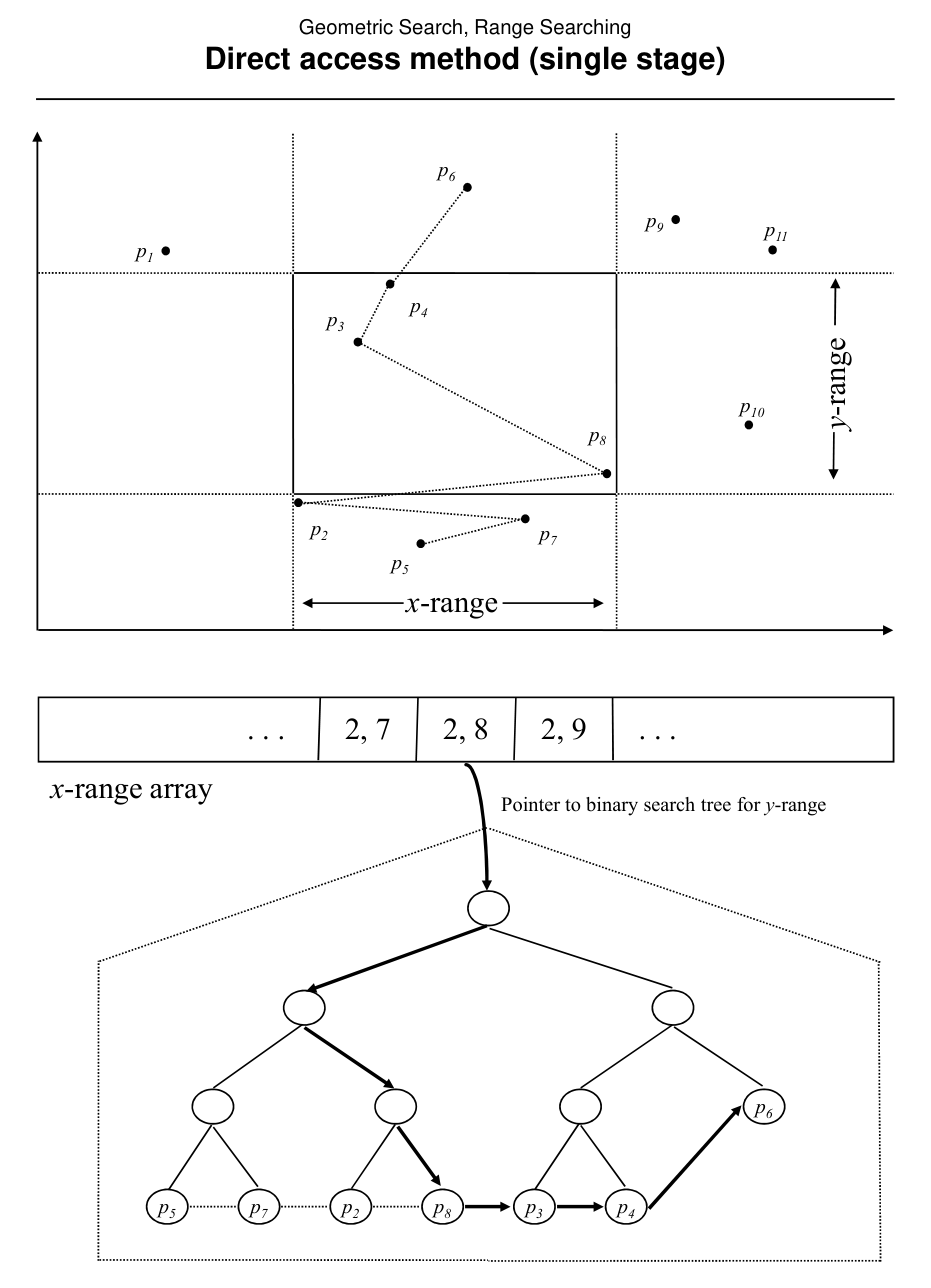

p. 165 - Direct access method (single stage)

  • x-range
  • y-range
  • x-range array
  • Pointer to binary search tree for y-range

p. 166 - Direct access method (single stage)

  • This slide is mainly visual. Use the figure crop in this file and make sure you can explain what the diagram is showing.

p. 167 - Direct access method (single stage)

  • Preprocessing
  • For each pair of normalized x coordinates (i, j), build a threaded
  • binary tree storing the subset of S with normalized x coordinates
  • in the interval [i, j] in ascending y coordinate order.
  • Query
    1. Normalize x-range of R = [lx, rx] × [ly, ry]. O(log N)
    1. Access x-range array to get tree pointer. O(1)
    1. Search tree for y ≥ ly. O(log N)
    1. Report points within y-range by following threads in tree
  • until y ≥ ry. O(K)

p. 168 - Direct access method (multistage)

  • Concept
  • We would like to improve the O(N3) storage of single stage direct
  • access method. Instead of precomputing answers for all possible
  • x-ranges, do so for a smaller set of fixed x-ranges. For a query
  • x-range, find a set of the fixed ranges that cover it, and combine
  • their precomputed answers.
  • N + 1
  • division
  • gauge
  • Point set S x-ranges

p. 169 - Direct access method (multistage)

  • Data structure
  • Multiple direct access arrays, one for each gauge
  • ⇒1 array for coarse level, multiple at fine level.
  • Each array contains an entry for each possible interval in that gauge.
  • As in the single stage version, each entry is a pointer to a threaded
  • binary tree containing the points of S located within the x-range of
  • the interval, stored in ascending y order.
  • Preprocessing
  • For each level (coarse and fine)
  • for each gauge at the level

p. 170 - Direct access method (multistage)

  • Query (Explanation)
  • • Find the beginning and end of the query x-range. This will
  • correspond to three intervals: one in the coarse gauge and
  • two in the fine gauges (O log (N)).
  • • There is a direct access array for the coarse division, whose
  • elements are pointing to the threaded binary trees for each
  • possible coarse x-range.
  • • After we identify the query x-range with two normalization
  • (binary searches), go to the direct access array for the
  • coarse subdivision and follow the array element to access

p. 171 - Direct access method (multistage)

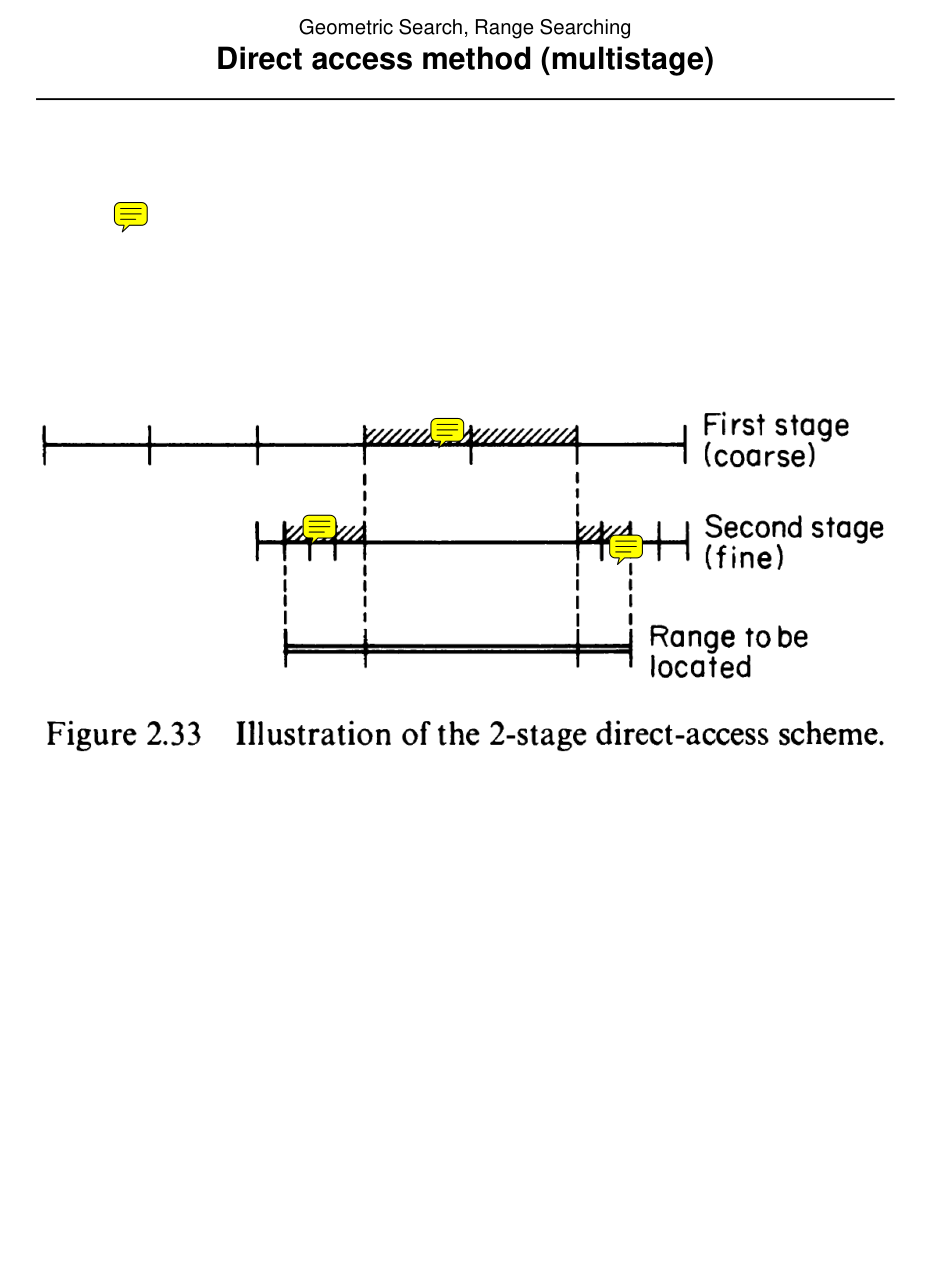

  • This slide is mainly visual. Use the figure crop in this file and make sure you can explain what the diagram is showing.

p. 172 - Direct access method (multistage)

  • Example (storage and query cost):
  • N = 100,  = 0.5, coarse gauge contains N 0.5 =10 divisions. N
  • (100) possible coarse-gauge intervals. N (100) binary trees
  • each with N (100) points. The total storage cost is 100 x 100 =
  • 10,000 (O(N 2)).
  • Each fine gauge contains N 1-0.5 = N 0.5 = 10 divisions. There are
  • N 0.5 = 10 such structures. Each fine division contains 10 points
  • and the storage cost of the binary search trees of a single
  • structure in the fine division is N 0.5 x 2 =100. For a total storage
  • of N 0.5 x N 0.5 x 2 x N 0.5 = 10,000 points. Total storage cost for

p. 173 - Direct access method (multistage)

  • Analysis
  • Preprocessing: O(N2 log N); O(N) trees, O(N log N) each.
  • Query: O(log N + K); see comments.
  • Storage: O(N2); see below.
  • Storage analyis details
  • Coarse
  • Gauges per level
  • Nα
  • Divisions per gauge
  • N1−α
