Range trees

Scope

  • Slides: pp. 174-179
  • Major topic folder: geometric-search
  • Recording files touching this material: CS 564 - 02.18 8.1.txt
  • Goal of this file: You should be able to study this topic without reopening the slide deck.

Big picture

Range trees are the most exam-worthy structure in the range-search block because they explicitly reuse segment-tree ideas and then add a second search structure inside each node. Tree of trees, because apparently one tree was not enough.

What you must know cold

  • Primary structure by x-intervals, secondary ordered structure by y-values at each node.
  • Range-tree query decomposes the x-range into canonical nodes and then searches y inside each associated structure.
  • Semi-open interval convention and why it matters.

Core ideas and reasoning

  • Think of a range tree as a segment tree whose allocation lists have been replaced by searchable ordered trees.
  • The x-range decomposition produces O(log N) canonical nodes.
  • At each canonical node, query the y-ordered associated structure to report or count exactly the points whose x-values are already known to be valid.

Figures to actually look at

These are cropped from the main slide PDF. Do not skip them.

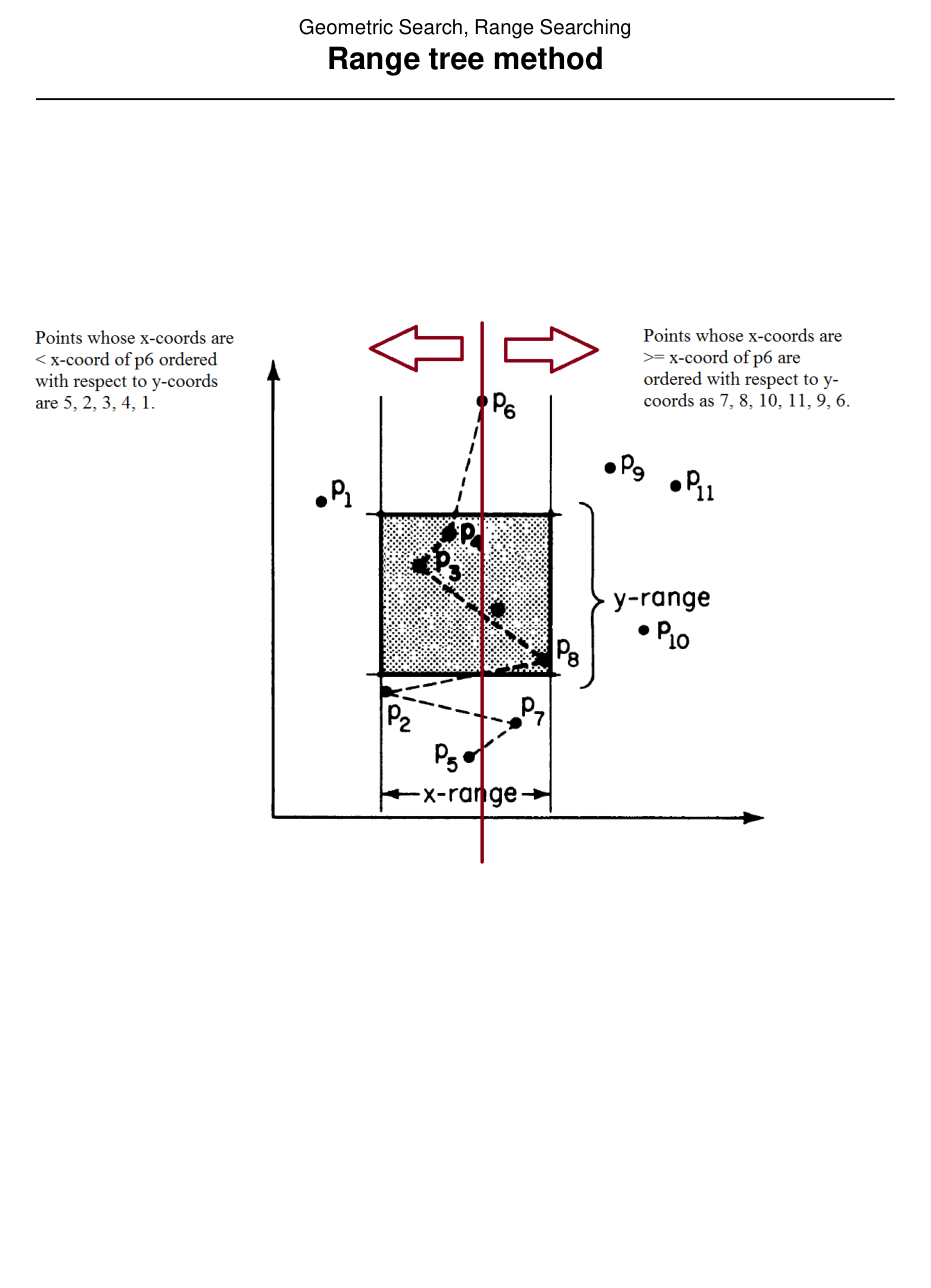

Figure from slide p. 177

Figure from slide p. 177

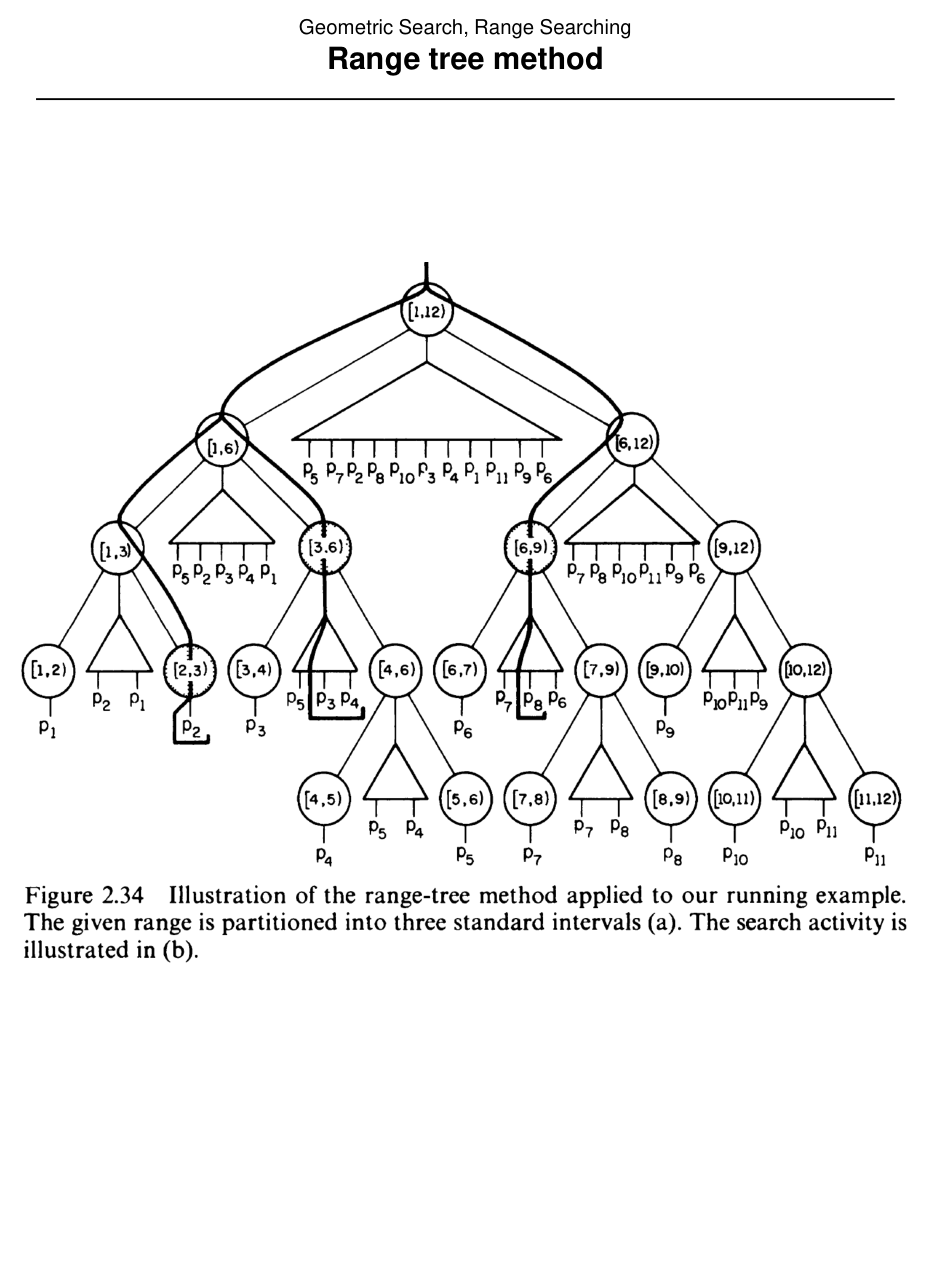

Figure from slide p. 178

Figure from slide p. 178

Slide-by-slide digestion

p. 174 - Range tree method

  • Definition
  • A range tree is a segment tree where the allocation list A(v) for each
  • node has been replaced with a standard threaded binary tree. Stored
  • (“allocated”) in the allocation tree for each node are the points
  • of S with x-coordinates within the scope interval associated with
  • that node. The trees are organized in ascending y-coordinate order.
  • Note that in a range tree the scope intervals are all semi-closed.
  • The allocation tree for node for [i, j) does not contain pj.
  • For that reason the range tree for S = {p1, p2, ..., pN} is
  • T(1, N + 1).

p. 175 - Range tree method

  • Query
  • Informally, traverse the segment tree as if inserting the x-range;
  • at each allocation node, search the allocation tree of the node
  • for points in the y-range.
  • More formally, to perform range query R = [lx, rx] × [ly, ry]
  • in range tree T:
  • SearchRangeTree(lx, rx + 1, ly, ry, root(T))
procedure SearchRangeTree(lx, rx, ly, ry, v)
begin
  if v is a leaf then
    if lx ≤ x(v) ≤ rx and ly ≤ y(v) ≤ ry then report v
    return
  if node interval [B(v), E(v)) is disjoint from query [lx, rx) then
    return
  if lx ≤ B(v) and E(v) ≤ rx then
    { v is fully covered by x-query — search its secondary structure for y-range }
    SearchAllocationTree(ly, ry, root of associated y-structure at v)
    return
  SearchRangeTree(lx, rx, ly, ry, left_child(v))
  SearchRangeTree(lx, rx, ly, ry, right_child(v))
end

p. 176 - Range tree method

  • Analysis
  • Preprocessing: O(N log N)
  • Query: O((log N)2 + K); O(log N) allocation nodes in the
  • segment tree structure for the query x-range,
  • with an O(log N) binary tree search for each.
  • Storage: O(N log N); see Preparata, p. 86.
  • Comments
  • The query time can be improved to O(log N + K).
  • Observe that once the query y-range starting point in S has been
  • found (via a binary search at one node) there is no need to find it

p. 177 - Range tree method

  • This slide is mainly visual. Use the figure crop in this file and make sure you can explain what the diagram is showing.

p. 178 - Range tree method

  • This slide is mainly visual. Use the figure crop in this file and make sure you can explain what the diagram is showing.

p. 179 - Range tree method

  • This slide is mainly visual. Use the figure crop in this file and make sure you can explain what the diagram is showing.

What you must be able to say or do in an exam

  • State the input, output, preprocessing, and query/update model precisely.
  • Explain the invariant or ordering that makes the method work.
  • Trace the method by hand on a small example.
  • Give the exact time and space bounds.
  • Mention one edge case, degeneracy, or limitation.

Complexity and performance facts

Typical course version: near-linear or O(N log N) storage, logarithmic decomposition cost, plus per-node secondary search and output term.

Common mistakes and danger points

  • Do not forget that the associated structures are ordered by y, while the primary decomposition is by x.
  • Use the exact interval convention from the slides. Endpoint sloppiness leaks points.

Professor emphasis from recordings

These points are distilled from the related recordings and focus on what the professor slowed down for, warned about, or connected to homework/exam reasoning.

  • The lecture links range trees back to one-dimensional search structures. The right mental model is layered searching: first narrow the x-range, then search corresponding y-structures.
  • This is also the natural place to think about the homework question on closest neighbors in a one-dimensional range tree, because the whole point is understanding what information each node can cache.

Exam-style drills and answer skeletons

Existing drill reminders from the earlier pack: - Given a point on the line stored in a perfect range tree, explain why only predecessor and successor matter for the nearest neighbor. - Describe an augmentation that stores enough local information to answer the closest-neighbor query in O(1) after maintenance. - Adapted from HW2-Q2: For points on one axis stored in a range tree, find the closest neighbor in O(log N), then augment the structure to answer in O(1).

HW2-Q2 adapted

Question. A set of points on one axis is stored in a perfect binary range tree. Given a pointer to a node, find the closest neighbor in O(log N), then explain how to augment the tree so the answer becomes O(1).

How to answer. Without augmentation, move through ancestor/sibling structure and compare the nearest predecessor/successor candidates. With augmentation, store closest-neighbor information per node and maintain it under updates.

Core exam drill

Question. State the problem solved by range trees, describe preprocessing/query/update steps if any, and give the time and space bounds.

How to answer. An excellent answer names the input, the output, the invariant or ordering exploited by the method, and the exact asymptotic costs.

Hand-trace drill

Question. Trace range trees on a small example by hand and explain each comparison or structural change.

How to answer. On this course, being able to run the method on a picture matters more than writing vague slogans.

Recap

What you must know cold

  • Primary structure by x-intervals, secondary ordered structure by y-values at each node.
  • Range-tree query decomposes the x-range into canonical nodes and then searches y inside each associated structure.
  • Semi-open interval convention and why it matters.

Core test / key idea

  • Think of a range tree as a segment tree whose allocation lists have been replaced by searchable ordered trees.
  • The x-range decomposition produces O(log N) canonical nodes.
  • At each canonical node, query the y-ordered associated structure to report or count exactly the points whose x-values are already known to be valid.

Complexity

  • Typical course version: near-linear or O(N log N) storage, logarithmic decomposition cost, plus per-node secondary search and output term.

Common mistakes / danger points

  • Do not forget that the associated structures are ordered by y, while the primary decomposition is by x.
  • Use the exact interval convention from the slides. Endpoint sloppiness leaks points.

Professor emphasis (from recordings)

  • The lecture links range trees back to one-dimensional search structures. The right mental model is layered searching: first narrow the x-range, then search corresponding y-structures.
  • This is also the natural place to think about the homework question on closest neighbors in a one-dimensional range tree, because the whole point is understanding what information each node can cache.

End-of-file summary

  • Primary structure by x-intervals, secondary ordered structure by y-values at each node.
  • Range-tree query decomposes the x-range into canonical nodes and then searches y inside each associated structure.
  • Semi-open interval convention and why it matters.
  • Typical course version: near-linear or O(N log N) storage, logarithmic decomposition cost, plus per-node secondary search and output term.
  • Do not forget that the associated structures are ordered by y, while the primary decomposition is by x.
  • Use the exact interval convention from the slides. Endpoint sloppiness leaks points.
