Convex combinations and dimension-sensitive definitions

Scope

  • Slides: pp. 186-189
  • Major topic folder: convex-hulls
  • Recording files touching this material: CS 564 - 02.20 9.1.txt
  • Goal of this file: You should be able to study this topic without reopening the slide deck.

Big picture

This is the algebraic definition of convex hull, and it is one of the cleanest pieces of theory in the block.

What you must know cold

  • Convex combination: coefficients are nonnegative and sum to 1.
  • Hull as the set of all convex combinations of input points.
  • Dimension-sensitive idea that only up to d+1 points are needed in d-space.

Core ideas and reasoning

  • Affine combinations give the full affine span; convex combinations restrict you to the convex region.
  • In the plane, every hull point can be represented using at most 3 input points.

Figures to actually look at

These are cropped from the main slide PDF. Do not skip them.

Figure from slide p. 188

Figure from slide p. 188

Figure from slide p. 189

Figure from slide p. 189

Slide-by-slide digestion

p. 186 - Preliminaries and definitions

  • Parametric equation of a line
  • Recall the following equation of a line:
  • {α(p0) + (1 - α)(p1) }, where α ∈ ℜ(real numbers)
  • where p0 and p1 are the points determining the line.
  • p0 = (x0, y0)
  • p1 = (x1, y1)
  • Substituting gives
  • {α(x0, y0) + (1 - α)(x1, y1) }
  • Multiplying through gives the coordinates of points
  • {αx0 + (1 - α)x1, αy0 + (1 - α)y1 }

p. 187 - Preliminaries and definitions

  • Convex combination
  • We generalize from the parametric equation of a line,
  • which suggests the idea of a convex combination.
  • A convex combination of points p1, p2, …, pk
  • is a sum of the form α1p1 + α2p2 + … + αkpk
  • where αi ≥0 for 1 ≤i ≤k and α1 + α2 + … + αk = 1.
  • Such a convex combination is a point.
  • As we saw, a line segment consists of all convex combinations
  • of its endpoints(k=2). (The same is not true of a line, why not?)
  • A triangle consists of convex combinations of its three corners (k=3).

p. 188 - Preliminaries and definitions

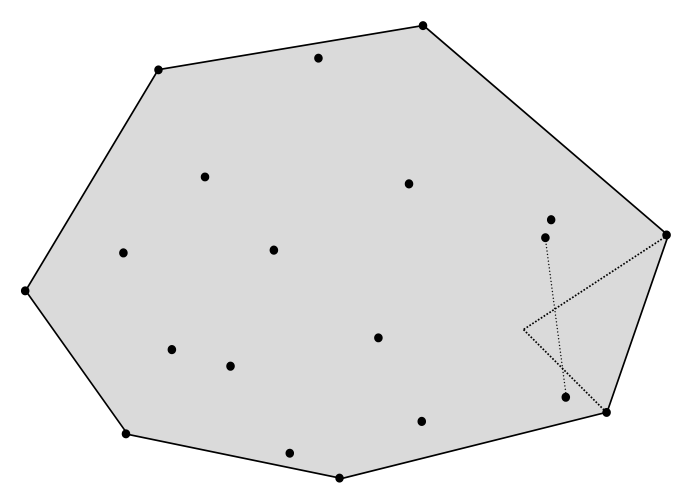

  • Convex hull, definition 4
  • The convex hull H(S) of a set of points S
  • is the set of all convex combinations of the points of S.
  • It should be intuitively clear that a hull defined in this way
  • can not have a “dent” (reflex vertex).

p. 189 - Preliminaries and definitions

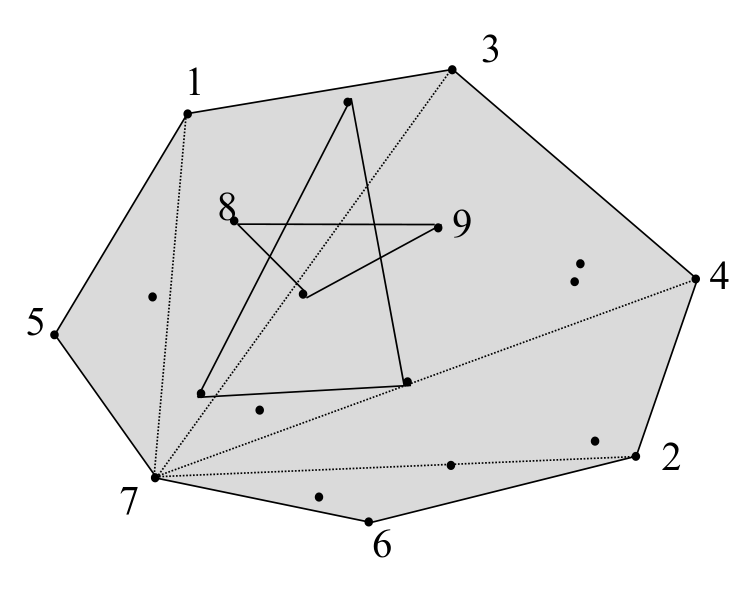

  • Convex hull, definition 5
  • The convex hull H(S) of a set of points S in d dimensions
  • is the set of all convex combinations of d + 1 or fewer points of S.
  • This is different from definition 4 in that only d + 1 or fewer
  • points are needed to get any point of H(S).
  • For example, in the plane d = 2,
  • convex polygons can be composed as the union of all points
  • contained by the triangles of the given points,
  • which are the convex combination of all d + 1 = 3 points.

What you must be able to say or do in an exam

  • Give the precise definitions.
  • Distinguish similar notions cleanly.
  • Use the right primitive test or formula on a concrete example.

Complexity and performance facts

No algorithm yet; this is representational theory used in later equivalence proofs.

Common mistakes and danger points

  • Nonnegative coefficients and sum-to-1 are both required. Drop either condition and you leave the convex hull.

Exam-style drills and answer skeletons

Definition drill

Question. Give the precise definitions and the most important consequences from convex combinations and dimension-sensitive definitions.

How to answer. A strong answer distinguishes similar objects and uses the course terminology exactly.

Recap

What you must know cold

  • Convex combination: coefficients are nonnegative and sum to 1.
  • Hull as the set of all convex combinations of input points.
  • Dimension-sensitive idea that only up to d+1 points are needed in d-space.

Core test / key idea

  • Affine combinations give the full affine span; convex combinations restrict you to the convex region.
  • In the plane, every hull point can be represented using at most 3 input points.

Complexity

  • No algorithm yet; this is representational theory used in later equivalence proofs.

Common mistakes / danger points

  • Nonnegative coefficients and sum-to-1 are both required. Drop either condition and you leave the convex hull.

End-of-file summary

  • Convex combination: coefficients are nonnegative and sum to 1.
  • Hull as the set of all convex combinations of input points.
  • Dimension-sensitive idea that only up to d+1 points are needed in d-space.
  • No algorithm yet; this is representational theory used in later equivalence proofs.
  • Nonnegative coefficients and sum-to-1 are both required. Drop either condition and you leave the convex hull.
