Equivalent formulations and problem statement

Scope

  • Slides: pp. 190-195
  • Major topic folder: convex-hulls
  • Recording files touching this material: CS 564 - 02.20 9.1.txt
  • Goal of this file: You should be able to study this topic without reopening the slide deck.

Big picture

The course gives several equivalent ways to think about the hull because different algorithms and proofs use different one-liners: smallest convex set, intersection of half-planes, union of triangles, and so on.

What you must know cold

  • Hull as the intersection of all convex sets containing S.
  • Hull as the intersection of all containing half-planes / half-spaces.
  • Hull as smallest enclosing convex polygon.
  • Formal problem statement: given S, construct H(S).

Core ideas and reasoning

  • These equivalences justify multiple algorithm paradigms: half-plane tests, supporting-line arguments, or combinatorial constructions.

Figures to actually look at

These are cropped from the main slide PDF. Do not skip them.

Figure from slide p. 190

Figure from slide p. 190

Figure from slide p. 191

Figure from slide p. 191

Slide-by-slide digestion

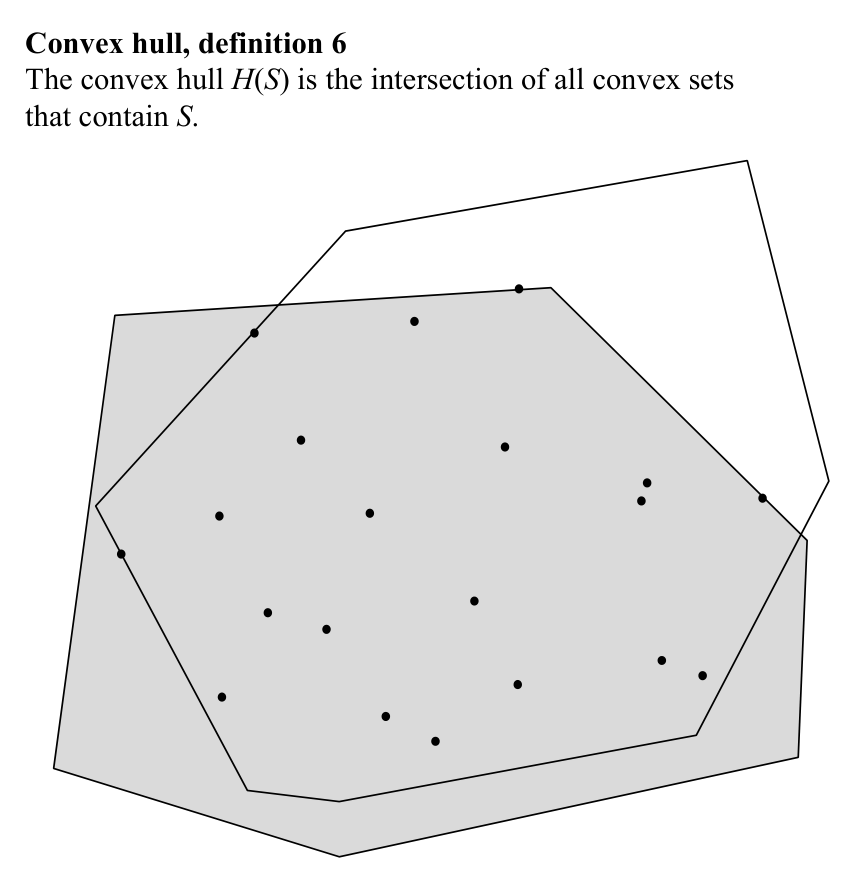

p. 190 - Preliminaries and definitions

  • Convex hull, definition 6
  • The convex hull H(S) is the intersection of all convex sets
  • that contain S.

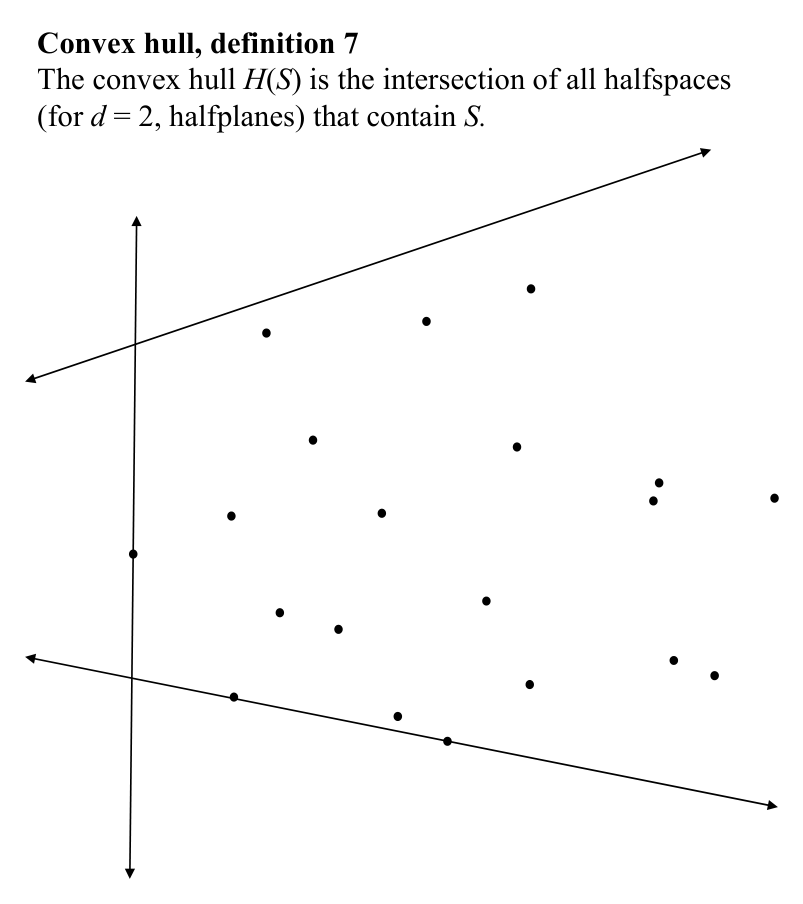

p. 191 - Preliminaries and definitions

  • Convex hull, definition 7
  • The convex hull H(S) is the intersection of all halfspaces
  • (for d = 2, halfplanes) that contain S.

p. 192 - Preliminaries and definitions

  • Convex hull, definition 8
  • The convex hull H(S) of a set of points S in the plane
  • is the smallest convex polygon P that encloses S,
  • smallest in the sense that there is no other polygon P′
  • such that P ⊃P′ ⊇S.
  • P′

p. 193 - Preliminaries and definitions

  • Convex hull, definition 9
  • The convex hull H(S) of a set of points S in the plane
  • is the enclosing convex polygon P with the smallest area.
  • Convex hull, definition 10
  • is the enclosing convex polygon P with the smallest perimeter.
  • Extreme Points E
  • A point p of a convex set is an extreme point if no two points
  • a,b∈
  • S exist such that p is between the line segment ab.
  • Thus, in Definition 5 example, the points (1, 2, 3, 4, 5, 6, 7) are

p. 194 - Preliminaries and definitions

  • Convex hull, definition 11
  • The convex hull H(S) of a set of points S in the plane
  • is the union of all the triangles defined by points in S.
  • This is a restatement of definition 5.
  • Many triangles are not shown in the figure.

p. 195 - Preliminaries and definitions

  • Problem definitions
  • CONVEX HULL
  • INSTANCE. A set S = {p1, p2, …, pN} of d-dimensional points.
  • QUESTION. Construct the convex hull H(S) for S.
  • (The construction must give the vertices and their sequence,
  • that is, obtain a description of the boundary which is a convex
  • polygon.)
  • EXTREME POINTS
  • QUESTION. Identify the points of S that are vertices of
  • the convex hull H(S). (Here, the ordering is not required.)

What you must be able to say or do in an exam

  • Give the precise definitions.
  • Distinguish similar notions cleanly.
  • Use the right primitive test or formula on a concrete example.

Complexity and performance facts

Pre-algorithm theory.

Common mistakes and danger points

  • Equivalent formulations are not separate definitions of different objects; they describe the same hull.

Exam-style drills and answer skeletons

Definition drill

Question. Give the precise definitions and the most important consequences from equivalent formulations and problem statement.

How to answer. A strong answer distinguishes similar objects and uses the course terminology exactly.

Recap

What you must know cold

  • Hull as the intersection of all convex sets containing S.
  • Hull as the intersection of all containing half-planes / half-spaces.
  • Hull as smallest enclosing convex polygon.
  • Formal problem statement: given S, construct H(S).

Core test / key idea

  • These equivalences justify multiple algorithm paradigms: half-plane tests, supporting-line arguments, or combinatorial constructions.

Complexity

  • Pre-algorithm theory.

Common mistakes / danger points

  • Equivalent formulations are not separate definitions of different objects; they describe the same hull.

End-of-file summary

  • Hull as the intersection of all convex sets containing S.
  • Hull as the intersection of all containing half-planes / half-spaces.
  • Hull as smallest enclosing convex polygon.
  • Pre-algorithm theory.
  • Equivalent formulations are not separate definitions of different objects; they describe the same hull.
