Extreme points algorithm

Scope

  • Slides: pp. 202-205
  • Major topic folder: convex-hulls
  • Recording files touching this material: CS 564 - 02.20 9.2.txt, CS 564 - 02.25 10.1.txt
  • Goal of this file: You should be able to study this topic without reopening the slide deck.

Big picture

This is the brute-force hull algorithm you study mostly to understand what efficient algorithms are trying to avoid.

What you must know cold

  • Extreme points are the minimal subset whose hull is the full hull.
  • A point is non-extreme if it lies inside some triangle formed by other input points.
  • Brute-force test by checking many triangles.

Core ideas and reasoning

  • For each point p, ask whether p lies inside any triangle determined by other points.
  • If yes, p cannot be a hull vertex.
  • Collect all extreme points, then order them angularly to obtain the hull.

Figures to actually look at

These are cropped from the main slide PDF. Do not skip them.

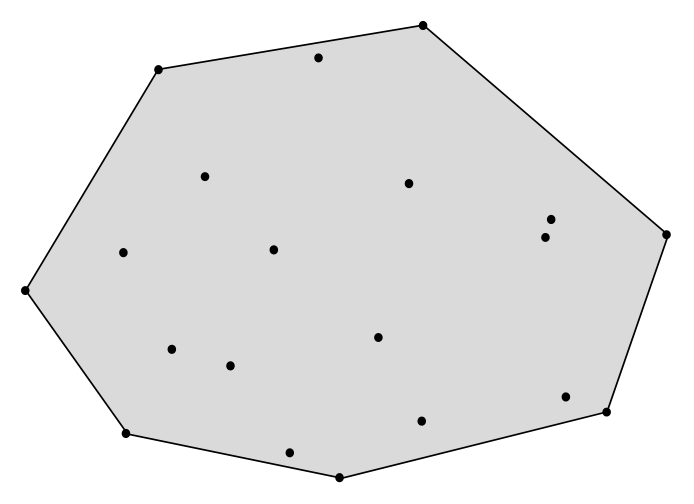

Figure from slide p. 202

Figure from slide p. 202

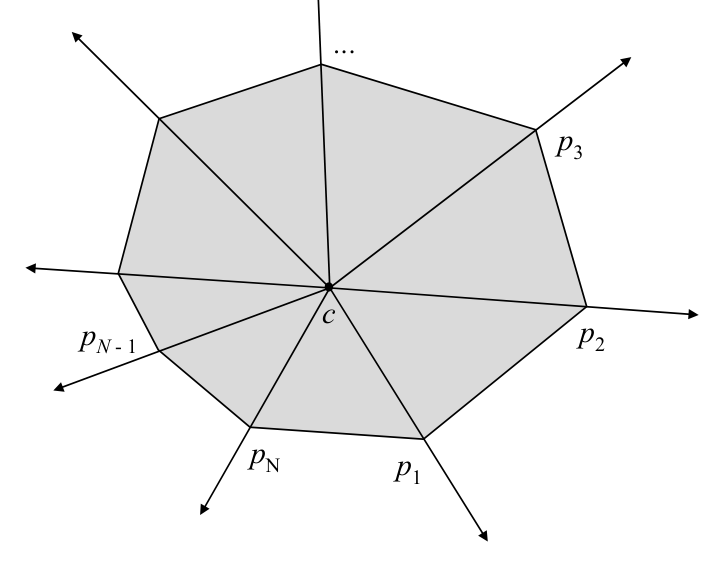

Figure from slide p. 205

Figure from slide p. 205

Slide-by-slide digestion

p. 202 - Extreme points algorithm

  • Extreme points
  • A point p of a convex set S is an extreme point if no two points
  • a, b ∈S exist such that p lies on the open segment ab.
  • Extreme points and the convex hull
  • The set E of extreme points of S (E ⊆S) is the smallest subset of S
  • such that H(E) = H(S).
  • E is the set of vertices of H(S).
  • This suggests an algorithm for CONVEX HULL:
    1. Find the extreme points E of S.
    1. Order the points E so that they form a convex polygon.

p. 203 - Extreme points algorithm

  • Determining if a point is an extreme point
  • If we could determine whether a given point p ∈S was an
  • extreme point in S, then we could find E by testing each point in S.
  • Theorem. A point p fails to be an extreme point of a plane convex
  • set S iff it lies in some triangle whose vertices are in S
  • but is not itself one of the vertices of the triangle.
  • p ∈E
  • p ∉E

p. 204 - Extreme points algorithm

  • Determining if a point is an extreme point
  • There are O(N3) triangles determined by the N points of S.
  • Point enclosure in a triangle can be performed in O(1) time.
  • To determine if p is an extreme point,
  • test it for inclusion in each of the O(N3) triangles.
  • If all fail, p ∈E.
  • Doing so for each point p ∈S requires O(N4) time.
  • (Determining extreme edges has O(N3 ) algorithm…see
  • O’Rourke p.67)
  • p ∈E

p. 205 - Extreme points algorithm

  • Ordering the vertices of the hull
  • E has been found (in O(N4)) time.
  • We already know that the vertices of a convex polygon
  • occur in sorted order around any interior point.
  • Find a point c interior to H(S) by computing the centroid of S. O(N)
  • For each point p ∈E, compute the polar angle from c to p. O(N)
  • Sort the points of E on polar angle. O(N log N)
  • Overall time complexity for this algorithm: O(N4).

What you must be able to say or do in an exam

  • State the input, output, preprocessing, and query/update model precisely.
  • Explain the invariant or ordering that makes the method work.
  • Trace the method by hand on a small example.
  • Give the exact time and space bounds.
  • Mention one edge case, degeneracy, or limitation.

Complexity and performance facts

Naive version is O(N^4) or similar brute-force order depending on the exact implementation and ordering step.

Common mistakes and danger points

  • Finding extreme points is not enough; you still need them in boundary order to output the hull.

Exam-style drills and answer skeletons

Existing drill reminders from the earlier pack: - Given a simple polygon in boundary order, explain why a general point-set hull algorithm is wasteful and why a linear-time polygon-specific method can do better. - Adapted from HW2-Q5: Given vertices of a non-convex simple polygon in clockwise order, find its convex hull in O(N).

Core exam drill

Question. State the problem solved by extreme points algorithm, describe preprocessing/query/update steps if any, and give the time and space bounds.

How to answer. An excellent answer names the input, the output, the invariant or ordering exploited by the method, and the exact asymptotic costs.

Hand-trace drill

Question. Trace extreme points algorithm on a small example by hand and explain each comparison or structural change.

How to answer. On this course, being able to run the method on a picture matters more than writing vague slogans.

Recap

What you must know cold

  • Extreme points are the minimal subset whose hull is the full hull.
  • A point is non-extreme if it lies inside some triangle formed by other input points.
  • Brute-force test by checking many triangles.

Core test / key idea

  • For each point p, ask whether p lies inside any triangle determined by other points.
  • If yes, p cannot be a hull vertex.
  • Collect all extreme points, then order them angularly to obtain the hull.

Complexity

  • Naive version is O(N^4) or similar brute-force order depending on the exact implementation and ordering step.

Common mistakes / danger points

  • Finding extreme points is not enough; you still need them in boundary order to output the hull.

End-of-file summary

  • Extreme points are the minimal subset whose hull is the full hull.
  • A point is non-extreme if it lies inside some triangle formed by other input points.
  • Brute-force test by checking many triangles.
  • Naive version is O(N^4) or similar brute-force order depending on the exact implementation and ordering step.
  • Finding extreme points is not enough; you still need them in boundary order to output the hull.
