Graham’s scan: concept and preparation

Scope

  • Slides: pp. 206-214
  • Major topic folder: convex-hulls
  • Recording files touching this material: CS 564 - 02.25 10.1.txt
  • Goal of this file: You should be able to study this topic without reopening the slide deck.

Big picture

This is the central convex-hull algorithm for the midterm. Learn the invariant, not just the pseudo-code. The invariant is what saves you when the exam wording mutates slightly, as it always does out of spite.

What you must know cold

  • Choose an anchor/internal point or sort points by polar angle around an anchor, depending on the slide variant.
  • Process points in order while maintaining a stack/deque of candidate hull vertices.
  • Whenever the last turn is not a left turn, pop until convexity is restored.

Core ideas and reasoning

  • After angular sorting, the scan walks boundary candidates in order.
  • The stack invariant is that the current stack is always the convex hull of the processed prefix.
  • A right turn or collinear bad case means the middle point cannot remain a hull vertex, so it is removed.

Figures to actually look at

These are cropped from the main slide PDF. Do not skip them.

Figure from slide p. 208

Figure from slide p. 208

Figure from slide p. 212

Figure from slide p. 212

Slide-by-slide digestion

p. 206 - Graham’s scan

  • Concept
  • A point within a triangle of S cannot be a vertex of the convex hull.
  • Previous algorithm determined if a point p was within a triangle of S
  • by trying (as many as) all of the triangles for each point p.
  • Can we find out if p is within a triangle of S more efficiently?
  • Graham’s scan does so. This algorithm is from one of the first
  • papers specifically concerned with finding an efficient geometric
  • algorithm (1972).
  • The essential idea: if a point p is not a vertex of the convex hull,
  • then it is internal to some triangle Op1p2,

p. 207 - Graham’s scan

  • Centroid
  • The centroid of a finite set of points p1, p2, …, pN is their
  • arithmetic mean (p1 + p2 + … + pN) / N.
  • (Computed for each coordinate separately.)
  • Lexicographic sort
  • Sorting on multiple keys associated with objects to be sorted.
  • Compare objects to be sorted on first key; and sort accordingly.
  • If first keys are equal, sort on second key.
  • If second keys are equal, …
  • farther

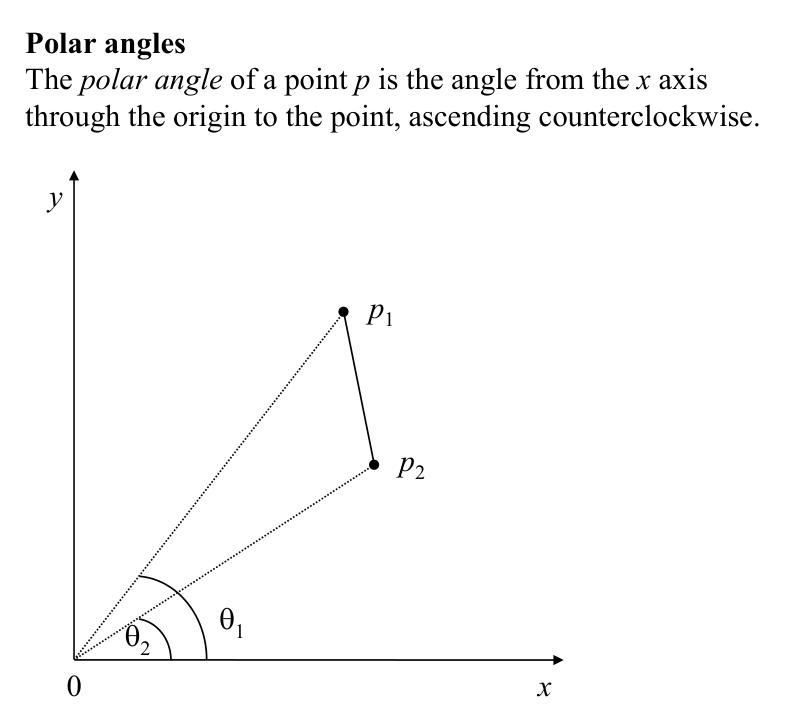

p. 208 - Polar angles

  • This slide is mainly visual: it fixes the meaning of polar angle as the counterclockwise angle from the x-axis.
  • You must understand the ordering picture because the next slides show how to compare these angles without calling trigonometric functions.

p. 209 - Graham’s scan

  • θ1
  • θ2
  • Comparing polar angles
  • Given two points p1 and p2 in the plane, which has the greater
  • polar angle? p2 forms a strictly small polar angle with the x axis
  • than p1 iff triangle 0p2p1 has a positive signed area.
  • Area(triangle 0p2p1) = (x0 y1 + x2 y0 + x1 y2 - x2 y1 - x0 y2 - x1 y0) / 2
  • (See earlier slides on left-turn/right turn classification.)
  • Equivalently, ... iff 0p2p1 is a left turn.
  • Note that this means polar angles can be compared without

p. 210 - Graham’s scan

  • Preparation
  • The preparation for Graham’s scan is as follows:
    1. Find a point O internal to H(S) (the centroid of S). O(N)
    1. Transform the coordinates of the points in S so that
  • O is the origin. O(N)
    1. Sort the N points of S lexicographically on
  • (1) polar angle and (2) distance from O. O(N log N)
    1. Arrange the sorted points in a doubly-linked circular list. O(N)

p. 211 - Graham’s scan

  • Basic idea of the scan
  • Recall that if a point p is not a vertex of the convex hull,
  • then it is internal to some triangle Op1p2.
  • The scan examines the points in sorted order (polar angle,
  • distance from O), eliminating those not in the convex hull.
  • Point p2 ∉H(S) and is eliminated
  • when angle p1p2p3 is found to be reflex.
  • Equivalently, eliminate p2 from H(S) iff p1p2p3 is not a left turn.
  • Point p2 is within triangle Op1p3 and is eliminated.

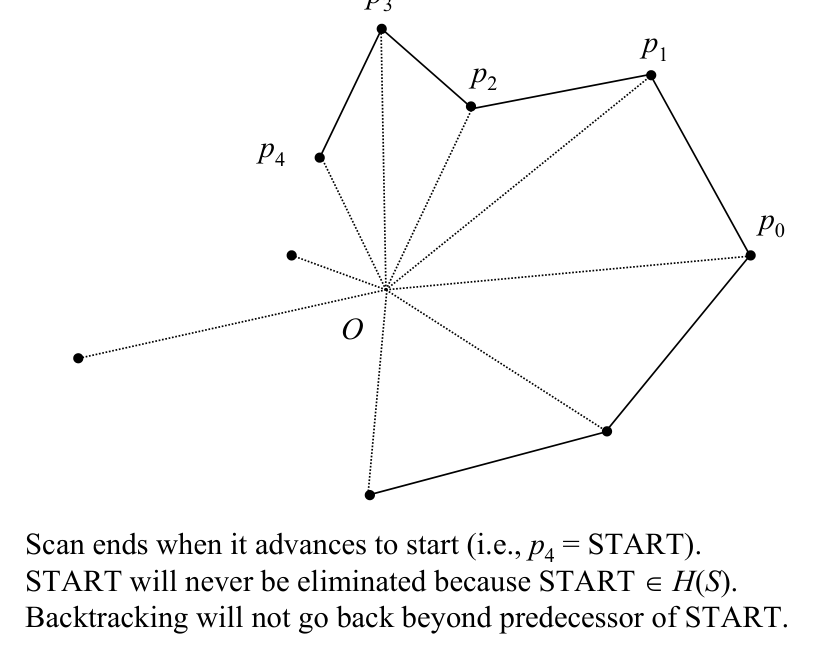

p. 212 - Graham’s scan

  • Scan algorithm (informal)
  • The scan begins at the rightmost smallest ordinate
  • (minimum y coordinate) point; call it START.
  • START is certainly a hull vertex (minimum y coordinate).
  • Repeatedly examine consecutive triples of points p1p2p3.
  • If p1p2p3 is a right turn, eliminate p2 from H(S) and
  • backtrack to p0p1p3.
  • If p1p2p3 is a left turn, advance to p2p3p4.
  • What about p1p2p3 collinear? Eliminate, p2 ∉H(S).
  • Scan ends when it advances to start (i.e., p4 = START).

p. 213 - Graham’s scan

  • Advancing and backtracking
  • Backtracking may occur more than once in succession,
  • eliminating a sequence of points.
  • Backtracking sure to stop at START.
  • No point can be eliminated more than once.

p. 214 - Graham’s scan

  • Algorithm (see Preparata, p. 108).

  • Find an internal point O (e.g. centroid of S).

  • Using O as the coordinate origin, sort the N points of S lexicographically by polar angle and distance from O. Arrange the sorted points into a doubly-linked circular list with pointers NEXT and PRED for each entry, and pointer START to the starting vertex (minimum y-coordinate; rightmost among ties—the “rightmost smallest ordinate” point from the informal scan).
  • Scan: walk the circular list and repeatedly examine consecutive triples (p1, p2, p3). If p1p2p3 is a right turn, delete p2 and backtrack; if a left turn, advance; handle collinear cases per the course tie-breaking rule. The scan ends when it cycles through START as in the slides.
procedure GRAHAM_SCAN(S)
begin
  O ← interior point of H(S)
  translate every point of S so O is the origin
  sort S lexicographically by (polar angle about O, distance from O)
  build doubly-linked circular list L over S with fields NEXT, PRED
  START ← vertex with minimum y-coordinate (rightmost if ties)

  { List-based scan as on slides p.212–213 }
  repeat
    let (p1, p2, p3) be three consecutive vertices on L
    if p1p2p3 is a right turn then
      delete p2 from L
      { backtrack to new triple ending at successor of p1 }
    else if p1p2p3 is a left turn then
      advance along L to the next consecutive triple
    else
      { collinear case: eliminate middle point per course rule }
      delete p2 from L (or apply stated collinear policy)
  until the scan completes (returns through START / hull closed)

  return vertices of H(S) in circular order
end

What you must be able to say or do in an exam

  • State the input, output, preprocessing, and query/update model precisely.
  • Explain the invariant or ordering that makes the method work.
  • Trace the method by hand on a small example.
  • Give the exact time and space bounds.
  • Mention one edge case, degeneracy, or limitation.

Complexity and performance facts

Sorting O(N log N) dominates; the scan itself is linear because each point is pushed once and popped at most once.

Common mistakes and danger points

  • Be clear about what you do with collinear points. Different tie rules give different boundary outputs.
  • The orientation test must use the points in the correct order.

Professor emphasis from recordings

These points are distilled from the related recordings and focus on what the professor slowed down for, warned about, or connected to homework/exam reasoning.

  • The lecture motivation is that the old extreme-point thinking is too expensive, so Graham's scan exists to preserve the Ω(N log N) lower-bound target instead of wasting O(N^4) work.
  • The elimination rule is the heart of the method: once the last triple is not a left turn, the middle point cannot stay on the hull.
  • Collinear handling is not cosmetic. The tie-breaking rule changes which boundary points survive, so you must state the policy clearly.

Exam-style drills and answer skeletons

Existing drill reminders from the earlier pack: - Trace Graham scan on a concrete point set and show each push/pop with the orientation values. - State and prove the stack invariant used by Graham scan. - Adapted from HW2-Q5: Given vertices of a non-convex simple polygon in clockwise order, find its convex hull in O(N).

HW2-Q5 drill

Question. Explain why Graham's scan normally needs sorting, and why a simple polygon given in boundary order is a special case that can be solved faster.

How to answer. Sorting is needed to order points radially, but an already-ordered boundary gives structure that can replace the sort.

Core exam drill

Question. State the problem solved by graham’s scan: concept and preparation, describe preprocessing/query/update steps if any, and give the time and space bounds.

How to answer. An excellent answer names the input, the output, the invariant or ordering exploited by the method, and the exact asymptotic costs.

Hand-trace drill

Question. Trace graham’s scan: concept and preparation on a small example by hand and explain each comparison or structural change.

How to answer. On this course, being able to run the method on a picture matters more than writing vague slogans.

Recap

What you must know cold

  • Choose an anchor/internal point or sort points by polar angle around an anchor, depending on the slide variant.
  • Process points in order while maintaining a stack/deque of candidate hull vertices.
  • Whenever the last turn is not a left turn, pop until convexity is restored.

Core test / key idea

  • After angular sorting, the scan walks boundary candidates in order.
  • The stack invariant is that the current stack is always the convex hull of the processed prefix.
  • A right turn or collinear bad case means the middle point cannot remain a hull vertex, so it is removed.

Complexity

  • Sorting O(N log N) dominates; the scan itself is linear because each point is pushed once and popped at most once.

Common mistakes / danger points

  • Be clear about what you do with collinear points. Different tie rules give different boundary outputs.
  • The orientation test must use the points in the correct order.

Professor emphasis (from recordings)

  • The lecture motivation is that the old extreme-point thinking is too expensive, so Graham's scan exists to preserve the Ω(N log N) lower-bound target instead of wasting O(N^4) work.
  • The elimination rule is the heart of the method: once the last triple is not a left turn, the middle point cannot stay on the hull.
  • Collinear handling is not cosmetic. The tie-breaking rule changes which boundary points survive, so you must state the policy clearly.

End-of-file summary

  • Choose an anchor/internal point or sort points by polar angle around an anchor, depending on the slide variant.
  • Process points in order while maintaining a stack/deque of candidate hull vertices.
  • Whenever the last turn is not a left turn, pop until convexity is restored.
  • Sorting O(N log N) dominates; the scan itself is linear because each point is pushed once and popped at most once.
  • Be clear about what you do with collinear points. Different tie rules give different boundary outputs.
  • The orientation test must use the points in the correct order.
