Graham’s scan: analysis, upper-lower hull view, and summary

Scope

  • Slides: pp. 215-219
  • Major topic folder: convex-hulls
  • Recording files touching this material: CS 564 - 02.25 10.1.txt
  • Goal of this file: You should be able to study this topic without reopening the slide deck.

Big picture

This follow-up page is where you turn the stack behavior into a proof and connect Graham scan to upper/lower hull thinking.

What you must know cold

  • Why the scan phase is O(N) after sorting.
  • Upper hull / lower hull decomposition viewpoint.
  • Why the overall algorithm is optimal in 2D.

Core ideas and reasoning

  • Every point enters the stack once and leaves at most once, so the scan is linear.
  • Another view is to construct upper and lower hulls separately in x-order; this foreshadows monotone-chain variants.

Figures to actually look at

These are cropped from the main slide PDF. Do not skip them.

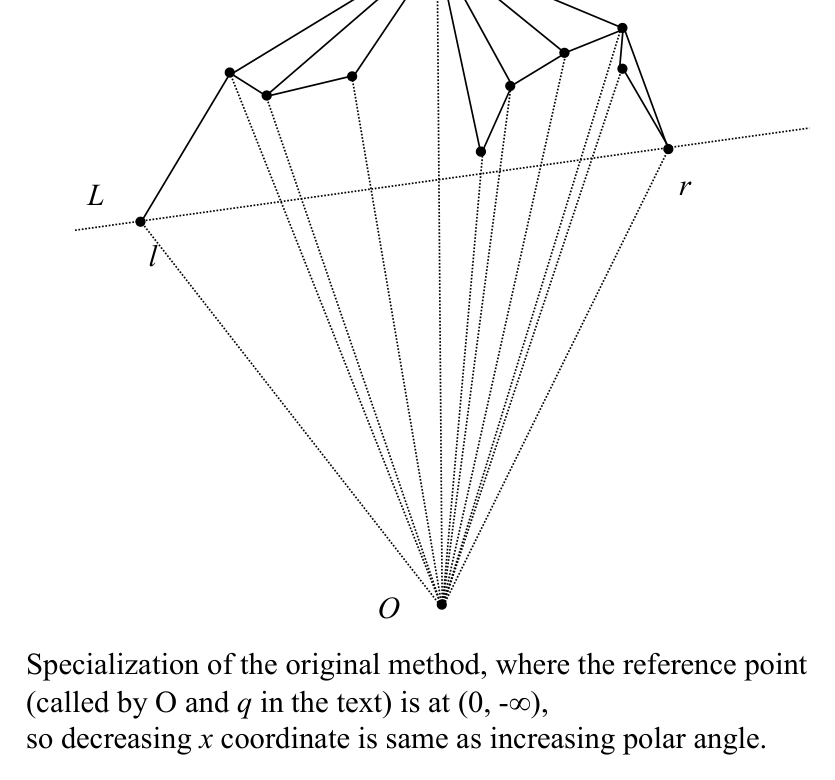

Figure from slide p. 217

Figure from slide p. 217

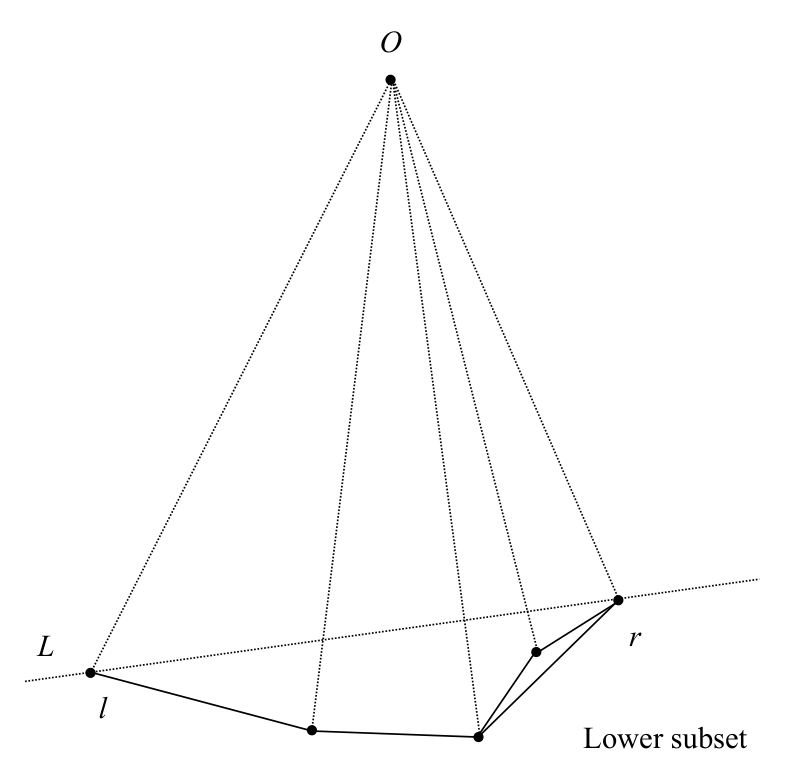

Figure from slide p. 218

Figure from slide p. 218

Slide-by-slide digestion

p. 215 - Graham’s scan

  • Analysis
  • Time: O(N log N); see comments.
  • Storage: O(N) for circular linked list of points.
  • Comments
  • Preparation:
  • Dominated by O(N log N) time required for sort.
  • Scan:
  • Left test requires O(1) time.
  • After each test, either advance or backtrack.
  • The scan will advance at most O(N) times,

p. 216 - Graham’s scan

  • Lower and upper hulls
  • We introduce the notions of upper and lower hulls,
  • which will be useful later, here in the context of Graham’s scan.
  • Rather than comparing polar angles, x-coordinate values will be
  • compared.
  • Given set S of N points in the plane, find the points with minimum
  • and maximum x coordinates (abscissa).
  • Call those points l and r, and construct the line L through l and r.
  • L partitions the remaining points S into two subsets, upper and lower,
  • each of which include l and r.

p. 217 - Graham’s scan

  • Constructing the upper hull
  • Sort the points of the upper subset of S on decreasing x coordinate.
  • (Note error, text p. 109 says “increasing”.)
  • Apply Graham’s scan from r to l.
  • Specialization of the original method, where the reference point
  • (called by O and q in the text) is at (0, -∞),
  • so decreasing x coordinate is same as increasing polar angle.
  • Upper subset

p. 218 - Graham’s scan

  • Constructing the lower hull
  • Sort the points of the lower subset of S on increasing x coordinate.
  • Apply Graham’s scan from l to r.
  • Lower subset

p. 219 - Graham’s scan

  • Summary
  • We have achieved best possible time for problem, O(N log N).
  • But we will continue to examine additional algorithms. Why?
    1. The algorithm is optimal in the worst case,
  • but we have not analyzed its expected case performance.
    1. It does not generalize to d > 2.
  • (Note that our lower bound proof also only applies to d = 2.)
    1. The algorithm is static, in that all points must be given
  • before the hull is constructed.
    1. For a parallel environment, a recursive algorithm

What you must be able to say or do in an exam

  • State the claim precisely before giving the argument.
  • Identify the known lower bound / recurrence / invariant you are using.
  • Keep the direction of the argument correct.
  • End with the exact asymptotic conclusion.

Complexity and performance facts

O(N log N) time, O(N) space; optimal because of the Ω(N log N) lower bound.

Common mistakes and danger points

  • Do not say “because there is a loop inside a loop it is quadratic.” The amortized push/pop argument is the proof.

Professor emphasis from recordings

These points are distilled from the related recordings and focus on what the professor slowed down for, warned about, or connected to homework/exam reasoning.

  • He highlights the amortized logic behind the scan: backtracking can happen many times in a row, but each point is deleted at most once.
  • That is the reason the scan phase stays linear after sorting.

Exam-style drills and answer skeletons

Existing drill reminders from the earlier pack: - Adapted from HW2-Q5: Given vertices of a non-convex simple polygon in clockwise order, find its convex hull in O(N).

Proof drill

Question. Explain the main argument in graham’s scan: analysis, upper-lower hull view, and summary in a logically correct order.

How to answer. Do not jump from intuition to conclusion. State the reduction/invariant/recurrence first, then derive the claimed bound.

Recap

What you must know cold

  • Why the scan phase is O(N) after sorting.
  • Upper hull / lower hull decomposition viewpoint.
  • Why the overall algorithm is optimal in 2D.

Core test / key idea

  • Every point enters the stack once and leaves at most once, so the scan is linear.
  • Another view is to construct upper and lower hulls separately in x-order; this foreshadows monotone-chain variants.

Complexity

  • O(N log N) time, O(N) space; optimal because of the Ω(N log N) lower bound.

Common mistakes / danger points

  • Do not say “because there is a loop inside a loop it is quadratic.” The amortized push/pop argument is the proof.

Professor emphasis (from recordings)

  • He highlights the amortized logic behind the scan: backtracking can happen many times in a row, but each point is deleted at most once.
  • That is the reason the scan phase stays linear after sorting.

End-of-file summary

  • Why the scan phase is O(N) after sorting.
  • Upper hull / lower hull decomposition viewpoint.
  • Why the overall algorithm is optimal in 2D.
  • O(N log N) time, O(N) space; optimal because of the Ω(N log N) lower bound.
  • Do not say “because there is a loop inside a loop it is quadratic.” The amortized push/pop argument is the proof.
  • He highlights the amortized logic behind the scan: backtracking can happen many times in a row, but each point is deleted at most once.
