Jarvis march (gift wrapping) in 2D

Scope

  • Slides: pp. 220-224
  • Major topic folder: convex-hulls
  • Recording files touching this material: CS 564 - 02.25 10.1.txt, CS 564 - 02.27 11.1.txt
  • Goal of this file: You should be able to study this topic without reopening the slide deck.

Big picture

Jarvis march wraps the hull edge by edge instead of filtering vertices. It is conceptually simple and output-sensitive.

What you must know cold

  • Start from an extreme point.
  • At each step, choose the point that makes all other points lie to one side of the candidate edge.
  • Repeat until returning to the start.

Core ideas and reasoning

  • Given current hull vertex p, search all points for the next point q such that every other point lies to the same side of pq.
  • This is edge finding rather than vertex filtering.

Figures to actually look at

These are cropped from the main slide PDF. Do not skip them.

Figure from slide p. 220

Figure from slide p. 220

Figure from slide p. 223

Figure from slide p. 223

Slide-by-slide digestion

p. 220 - Jarvis’ march

  • Concept
  • Graham’s scan found the vertices of H(S).
  • Given a point p ∈ S, the algorithm would determine
  • whether p ∈ H(S), with some possible backtracking.
  • Conceptually, Jarvis’ march instead finds the edges of H(S).
  • Given two points p and q, it is possible to determine
  • if segment pq is an edge of H(S).

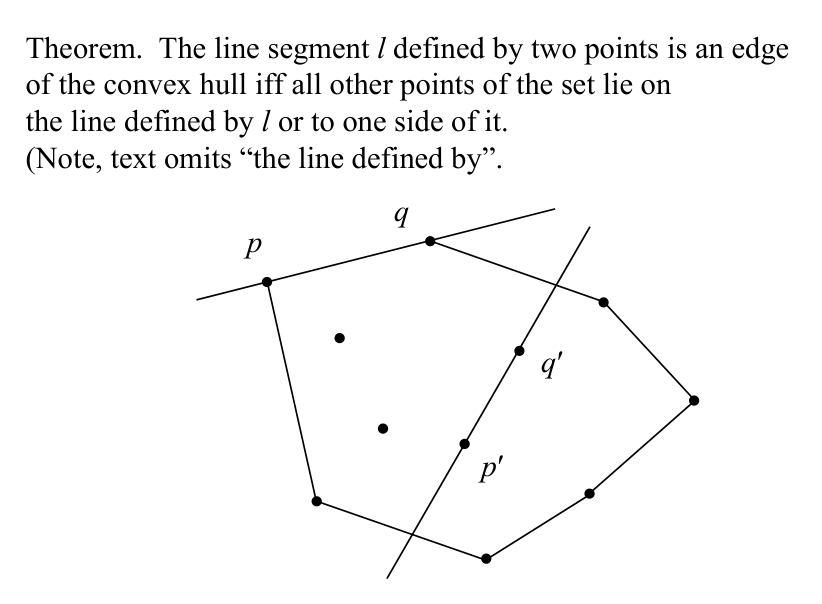

  • Theorem. The line segment l defined by two points is an edge
  • of the convex hull iff all other points of the set lie on
  • the line defined by l or to one side of it.

p. 221 - Jarvis’ march

  • Naïve approach
  • There are O(N2) lines determined by all pairs of points.
  • For each of those lines, it is possible to test all the remaining
  • N - 2 points (Point-line classification) and determine
  • if the line meets the criteria of the theorem as an edge of H(S).
  • This simple process requires O(N3) time to find the edges of H(S).
  • The edges must then be arranged in order in O(N) time.
  • Improving on the naïve approach
  • To improve on this, observe that once it is established that
  • some segment pq is a edge of H(S),

p. 222 - Jarvis’ march

  • Marching (up)
  • Assume that the rightmost smallest ordinate point p1 has been found.
  • Point p1 is certainly ∈H(S).
  • We wish to find the next vertex on H(S), call it p2.
  • Point p2 is the point ∈S with the smallest polar angle ≤0 w.r.t. p1.
  • Likewise, the next point p3 has the smallest polar angle ≤0 w.r.t. p2.
  • Each successive vertex of H(S) can be found in linear time O(N)
  • by checking each p ∈S to find the point with the least polar angle.
  • In this manner, H(S) can be constructed from the lowest point
  • to the highest point (p1 to p4 in the example).

p. 223 - Jarvis’ march

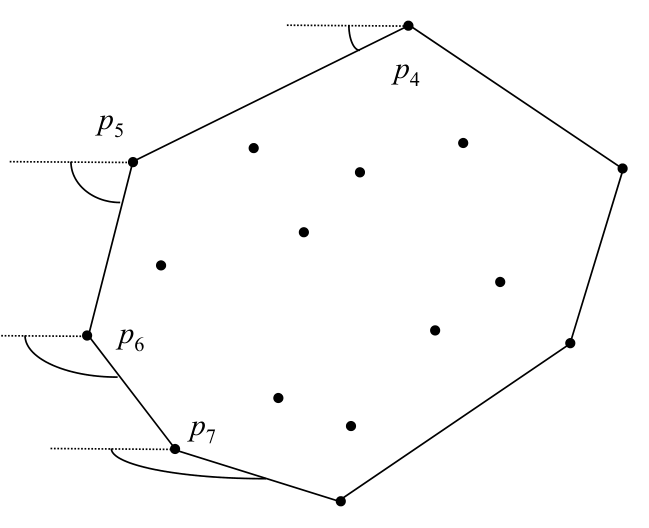

  • Marching (down)
  • When marching down, the least polar angle is found
  • w.r.t. to the point as usual, but relative to the negative x axis,
  • because relative to the x axis will give erroneous results.

p. 224 - Jarvis’ march

  • Analysis
  • Time: O(N2); O(N) points in hull, N comparisons at each
  • to find least polar angle.
  • Storage: O(N); for the points.
  • However, only the vertices of the hull H(S) are actually processed
  • (that is, if there are actually h points on the hull, hN left/right
  • comparisons are necessary)
  • to find the next vertex.
  • Let h be |H(S)|; of course h ∈O(N), but often h << N.
  • Expected time for Jarvis’ march algorithm is O(hN),

What you must be able to say or do in an exam

  • State the input, output, preprocessing, and query/update model precisely.
  • Explain the invariant or ordering that makes the method work.
  • Trace the method by hand on a small example.
  • Give the exact time and space bounds.
  • Mention one edge case, degeneracy, or limitation.

Complexity and performance facts

O(Nh) where h is the number of hull vertices; good when h is small, worst case O(N^2).

Common mistakes and danger points

  • Do not accidentally test against the segment only; the one-side condition is relative to the full supporting line.

Exam-style drills and answer skeletons

Existing drill reminders from the earlier pack: - Adapted from HW2-Q5: Given vertices of a non-convex simple polygon in clockwise order, find its convex hull in O(N).

Core exam drill

Question. State the problem solved by jarvis march (gift wrapping) in 2d, describe preprocessing/query/update steps if any, and give the time and space bounds.

How to answer. An excellent answer names the input, the output, the invariant or ordering exploited by the method, and the exact asymptotic costs.

Hand-trace drill

Question. Trace jarvis march (gift wrapping) in 2d on a small example by hand and explain each comparison or structural change.

How to answer. On this course, being able to run the method on a picture matters more than writing vague slogans.

Recap

What you must know cold

  • Start from an extreme point.
  • At each step, choose the point that makes all other points lie to one side of the candidate edge.
  • Repeat until returning to the start.

Core test / key idea

  • Given current hull vertex p, search all points for the next point q such that every other point lies to the same side of pq.
  • This is edge finding rather than vertex filtering.

Complexity

  • O(Nh) where h is the number of hull vertices; good when h is small, worst case O(N^2).

Common mistakes / danger points

  • Do not accidentally test against the segment only; the one-side condition is relative to the full supporting line.

End-of-file summary

  • Start from an extreme point.
  • At each step, choose the point that makes all other points lie to one side of the candidate edge.
  • Repeat until returning to the start.
  • O(Nh) where h is the number of hull vertices; good when h is small, worst case O(N^2).
  • Do not accidentally test against the segment only; the one-side condition is relative to the full supporting line.
