Scope

  • Slides: pp. 225-234
  • Major topic folder: convex-hulls
  • Recording files touching this material: CS 564 - 02.25 10.1.txt, CS 564 - 02.27 11.1.txt
  • Goal of this file: You should be able to study this topic without reopening the slide deck.

Big picture

Quickhull is the quicksort-flavored hull algorithm: choose extreme points, split the set by a line, recurse on the outside sets, and pray your partitions are kind. Mathematics remains unmoved by your optimism.

What you must know cold

  • Initial split using extreme x-points.
  • Find the farthest point from a hull edge / supporting line.
  • Partition remaining points into recursive subproblems.

Core ideas and reasoning

  • The farthest point from segment ab becomes a hull vertex.
  • Points inside the triangle formed by a, b, and the farthest point can be discarded from that recursive branch.
  • Recurse on the two outer subsets.

Figures to actually look at

These are cropped from the main slide PDF. Do not skip them.

Figure from slide p. 227

Figure from slide p. 227

Figure from slide p. 230

Figure from slide p. 230

Slide-by-slide digestion

p. 225 - Quickhull

  • Quicksort
  • The Quickhull algorithm is based on the Quicksort algorithm.
  • Recall how quicksort operates: at each level of recursion,
  • an array of numbers to be sorted is partitioned into two subarrays,
  • such that each term of the first (left) subarray is not larger
  • than each term of the second (right) subarray.
  • LEFT
  • RIGHT
  • Two pointers to the array cells (LEFT and RIGHT)
  • initially point to the opposite extreme ends of the array. We

p. 226 - Quickhull

  • Quickhull overview
  • Quickhull operates in a similar manner.
  • It recursively partitions the point set S,
  • so as to find the convex hull for each subset.
  • The hull at each level of the recursion is formed by
  • concatenating the hulls found at the next level down.

p. 227 - Quickhull

  • Initial partition

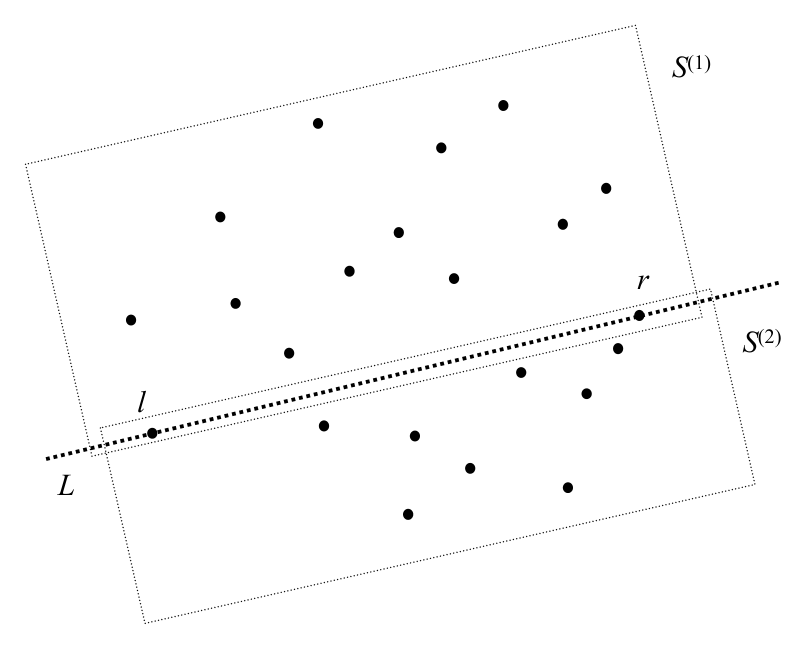

  • The initial partition of S is determined by a line L
  • through the points l, r ∈S with the smallest and largest abscissa.
  • S(1) ⊆S is the subset of S on or above L.
  • S(2) ⊆S is the subset of S on or below L.
  • Note that {S(1), S(2)} is not a partition of S,
  • as S(1) ∩S(2) ⊇{l,r}. This is not a difficulty.
  • The idea now is to construct hulls H(S(1)) and H(S(2)),
  • then concatenate them to get H(S).
  • The process is the same for S(1) and S(2), we consider S(1).

p. 228 - Quickhull

  • Finding the “apex”
  • Find the point h ∈S(1) such that
  • (1) triangle hlr has the maximum area of all triangles {plr : p ∈S(1)},
  • and if there are > 1 triangles with maximum area,
  • (2) the one where angle hlr is maximum.
  • This condition ensures that h ∈H(S). Why?
  • Construct a line parallel to line L through h, call it L′.
  • There will be no points of S(1) (or S) above L′, by condition (1).
  • There may be other points on L′, but h will be the leftmost,
  • by condition (2),

p. 229 - Quickhull

  • Partitioning the point set
  • Construct two directed lines, L1 from l to h, and L2 from h to r.
  • Each point of S(1) is classified relative to L1 and L2
  • (e.g., point-line classification).
  • No point can be to the left of both L1 and L2.
  • Points to the right of both are not in H(S),
  • as they are within triangle hlr,
  • and are eliminated from further consideration.
  • Points left of L1 are S(1,1).
  • Points left of L2 are S(1,2).

p. 230 - Quickhull

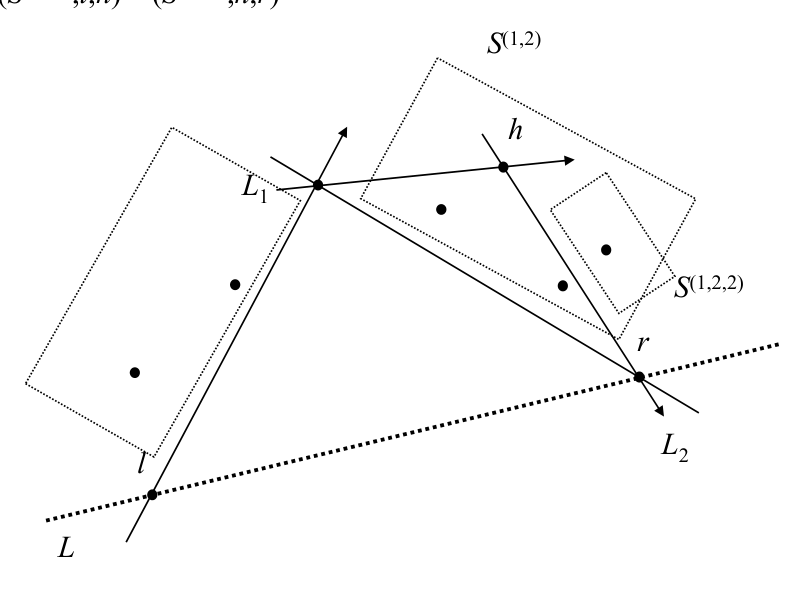

  • Recursion
  • The process recurses on S(1,1) and are S(1,2).
  • (set, left endpoint, right endpoint)
  • (S(…),l,r)
  • (S(…,1),l,h) (S(…,2),h,r)
  • The recursion continues until S(…) has 0 points,
  • i.e., all internal points have been eliminated,
  • which implies that segment lr is an edge of H(S).
  • S(1,2,2)

p. 231 - Quickhull

  • Geometric primitives
  • The geometric primitives used by this algorithm are:
    1. Point-line classification
    1. Area of a triangle
  • Both of these require O(1) time.

p. 232 - Quickhull

  • Initial partition, revisited
  • The preceding explanation, while intuitive and thus useful,
  • introduces an anomaly: l, r are in both S(1) and S(2).
  • This is a problem because l, r will end up in both hulls.
  • To the avoid this, base the initial partition on l0 = (x0, y0),
  • the point of S with smallest abscissa,
  • and r0 = (x0, y0 - ε), where ε is an arbitrarily small constant.

p. 233 - Quickhull

  • General function
  • S is assumed to have at least 2 elements
  • (the recursion ends otherwise).
  • FURTHEST(S, l, r) is a function, not given here,
  • that finds the apex point h as previously defined.
  • The operator || denotes list concatenation.
  • Procedure QUICKHULL returns an ordered list of points.
procedure QUICKHULL(S, l, r)
begin
  { S: points strictly on one side of oriented line lr; l, r are hull vertices }
  if S = {l, r} or every point of S lies on segment lr then
    return ordered list [l, r]
  h ← FURTHEST(S, l, r)          { farthest from line lr among points left of lr }
  S1 ← { points of S strictly left of directed line lh }
  S2 ← { points of S strictly left of directed line hr }
  return QUICKHULL(S1, l, h) || QUICKHULL(S2, h, r)   { || = list concatenation }
end

p. 234 - Quickhull

  • Analysis
  • Worst case time: O(N2)
  • Expected time: O(N log N)
  • Storage: O(N2)
  • At each level of the recursion, partitioning S into S(1) and S(2)
  • requires O(N) time. If S(1) and S(2) were guaranteed to have
  • a size equal to a fixed portion of S, and this held at each level,
  • the worst case time would be O(N log N).
  • However, those criteria do not apply;
  • S(1) and S(2) may have size in O(N) (they are not balanced).

What you must be able to say or do in an exam

  • State the input, output, preprocessing, and query/update model precisely.
  • Explain the invariant or ordering that makes the method work.
  • Trace the method by hand on a small example.
  • Give the exact time and space bounds.
  • Mention one edge case, degeneracy, or limitation.
