Divide-and-conquer convex hulls and hull union

Scope

  • Slides: pp. 235-241
  • Major topic folder: convex-hulls
  • Recording files touching this material: CS 564 - 02.27 11.1.txt
  • Goal of this file: You should be able to study this topic without reopening the slide deck.

Big picture

This is the clean divide-and-conquer hull algorithm the course wants you to contrast with Quickhull. The subproblems are balanced, and the merge is a hull-union computation.

What you must know cold

  • Split points into two roughly equal subsets, usually by x-order.
  • Recursively compute each hull.
  • Merge the two convex hulls by finding common tangents / supporting lines.

Core ideas and reasoning

  • The identity is H(S1 ∪ S2) = H(H(S1) ∪ H(S2)).
  • Once each subproblem returns a convex polygon, merging is a geometric tangent-finding problem rather than a point-set problem.

Figures to actually look at

These are cropped from the main slide PDF. Do not skip them.

Figure from slide p. 237

Figure from slide p. 237

Figure from slide p. 241

Figure from slide p. 241

Slide-by-slide digestion

p. 235 - Divide-and-conquer

  • Divide-and-conquer design goal
  • QUICKHULL recursively subdivides point set S,
  • and assembles the convex hull H(S) by “merging”
  • the subproblem results.
  • Advantages:
    1. Subdivision allows parallelization
    1. Merge process is very simple (concatenation)
  • Disadvantage:
    1. Inability to control or guarantee subproblem size
  • results in suboptimum worst case time performance.

p. 236 - Divide-and-conquer

  • Union of convex hulls, 1
  • Suppose we have S and want to compute H(S).
  • Further suppose S has been partitioned into S1 and S2,
  • each containing half the points of S.
  • If H(S1) and H(S2) are found separately (recursively),
  • how much additional work is required to compute H(S1 ∪S2),
  • i.e., H(S)?
  • In other words, is it easier to find H(S) = H(S1 ∪S2)
  • given H(S1) and H(S2) than to find H(S) directly?
  • To do so, we use the relation:

p. 237 - Divide-and-conquer

  • Union of convex hulls, 2

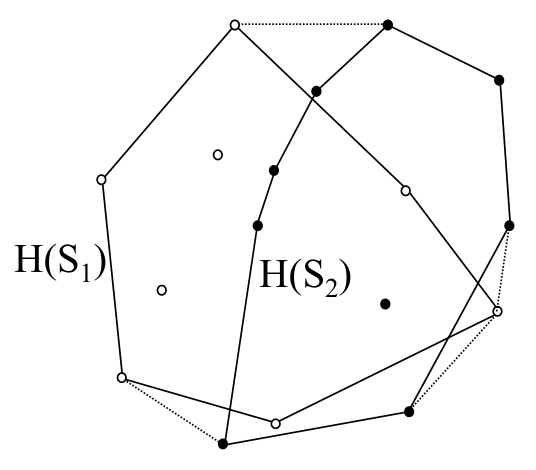

  • The relation is: H(S1 ∪S2) = H(H(S1) ∪H(S2))
  • Computing the convex hull of the union of convex hulls is
  • made simpler because H(S1) and H(S2) are convex polygons
  • and thus have an ordering on their vertices.
  • HULL OF UNION OF CONVEX POLYGONS
  • INSTANCE: Convex polygons P1 and P2.
  • QUESTION: Find the convex hull of their union.
  • This problem is the merge step of a divide-and-conquer
  • algorithm for convex hull construction.

p. 238 - Divide-and-conquer

  • Overview of divide-and-conquer algorithm
    1. If |S|  k0 (k0 is a small integer), construct the convex hull
  • directly by some method and stop, else go to step 2.
  • (For example, for k0 = 3 the hull is a triangle, O(1).)
    1. Partition the set S arbitrarily into two subsets S1 and S2
  • of approximately equal sizes.
    1. Recursively find the convex hulls H(S1) and H(S2).
    1. Merge the two hulls together to form H(S).
  • Let U(N) denote the time needed to find the hull of the union of
  • two convex polygons (convex hulls), each with N/2 vertices.

p. 239 - Divide-and-conquer

  • Merge algorithm, 1 (steps 1–3 below).
procedure MERGE_CONVEX_HULLS(P1, P2)
  { P1, P2 convex polygons; compute H(P1 ∪ P2) in O(m + n) }
begin
  1. Find a point p internal to P1 (e.g. centroid). Then p lies inside H(P1 ∪ P2).
  2. Test whether p is internal to P2 — O(N) convex inclusion.
     If p is not internal to P2, go to step 4.
  3. { p inside P2 } Vertices of P1 and P2 appear in sorted angular order about p.
     Merge these orders; continue at step 5 with that vertex list.

  4. { p not inside P2 } Relative to p, P2 lies in a wedge of apex angle ≤ π,
     bounded by vertices u, v of P2 (found in O(N) by one pass around P2).
     Partition P2 into two angle-monotone chains; discard the chain concave toward p
     (its vertices lie inside H(P1 ∪ P2)).

  5. Run Graham’s scan on the resulting vertex list in angular order about p
     to build H(P1 ∪ P2) in O(m + n) = O(N) time.
end

p. 240 - Divide-and-conquer

  • Merge algorithm, 2: corresponds to step 4 above (wedge from p, vertices u and v, discard the concave-toward-p chain).

p. 241 - Divide-and-conquer

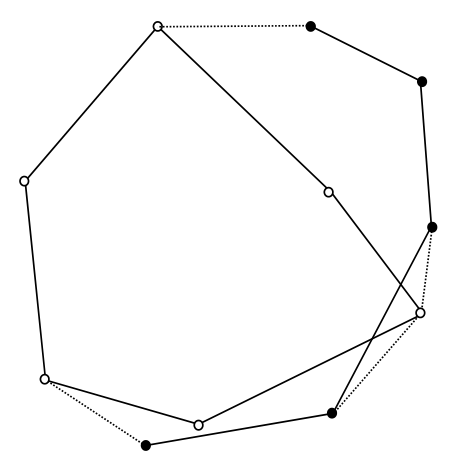

  • Merge algorithm, 3: step 5 — Graham scan on the merged list yields H(P1 ∪ P2) in O(m + n); with an O(N) merge, divide-and-conquer convex hull is O(N log N) overall.

What you must be able to say or do in an exam

  • State the input, output, preprocessing, and query/update model precisely.
  • Explain the invariant or ordering that makes the method work.
  • Trace the method by hand on a small example.
  • Give the exact time and space bounds.
  • Mention one edge case, degeneracy, or limitation.

Complexity and performance facts

Balanced divide and conquer gives O(N log N) overall when the merge is linear.

Common mistakes and danger points

  • Do not merge raw point sets; merge the two hulls.
  • The merge step must preserve cyclic order around the output hull.

Exam-style drills and answer skeletons

Existing drill reminders from the earlier pack: - Adapted from HW2-Q5: Given vertices of a non-convex simple polygon in clockwise order, find its convex hull in O(N).

Core exam drill

Question. State the problem solved by divide-and-conquer convex hulls and hull union, describe preprocessing/query/update steps if any, and give the time and space bounds.

How to answer. An excellent answer names the input, the output, the invariant or ordering exploited by the method, and the exact asymptotic costs.

Hand-trace drill

Question. Trace divide-and-conquer convex hulls and hull union on a small example by hand and explain each comparison or structural change.

How to answer. On this course, being able to run the method on a picture matters more than writing vague slogans.

Recap

What you must know cold

  • Split points into two roughly equal subsets, usually by x-order.
  • Recursively compute each hull.
  • Merge the two convex hulls by finding common tangents / supporting lines.

Core test / key idea

  • The identity is H(S1 ∪ S2) = H(H(S1) ∪ H(S2)).
  • Once each subproblem returns a convex polygon, merging is a geometric tangent-finding problem rather than a point-set problem.

Complexity

  • Balanced divide and conquer gives O(N log N) overall when the merge is linear.

Common mistakes / danger points

  • Do not merge raw point sets; merge the two hulls.
  • The merge step must preserve cyclic order around the output hull.

End-of-file summary

  • Split points into two roughly equal subsets, usually by x-order.
  • Recursively compute each hull.
  • Merge the two convex hulls by finding common tangents / supporting lines.
  • Balanced divide and conquer gives O(N log N) overall when the merge is linear.
  • Do not merge raw point sets; merge the two hulls.
  • The merge step must preserve cyclic order around the output hull.
