Supporting lines from hull union

Scope

  • Slides: pp. 242-244
  • Major topic folder: convex-hulls
  • Recording files touching this material: CS 564 - 02.27 11.1.txt, CS 564 - 02.27 11.2.txt
  • Goal of this file: You should be able to study this topic without reopening the slide deck.

Big picture

Supporting lines are both a geometric concept and a merge primitive. They are the tangent lines that touch hulls without cutting through them.

What you must know cold

  • Definition of a supporting line for a convex polygon or two convex polygons.
  • Upper and lower common tangents.
  • Why the hull of a union reveals these lines.

Core ideas and reasoning

  • A common supporting line touches both polygons and leaves each polygon entirely on the same side.
  • Finding upper/lower tangents is the key to linear-time hull merge.

Figures to actually look at

These are cropped from the main slide PDF. Do not skip them.

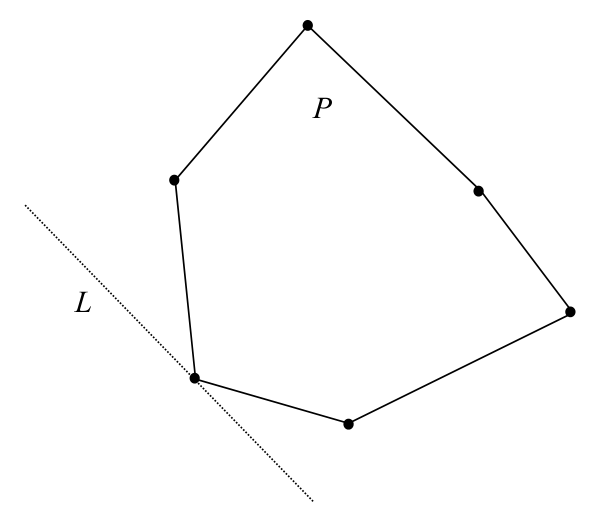

Figure from slide p. 242

Figure from slide p. 242

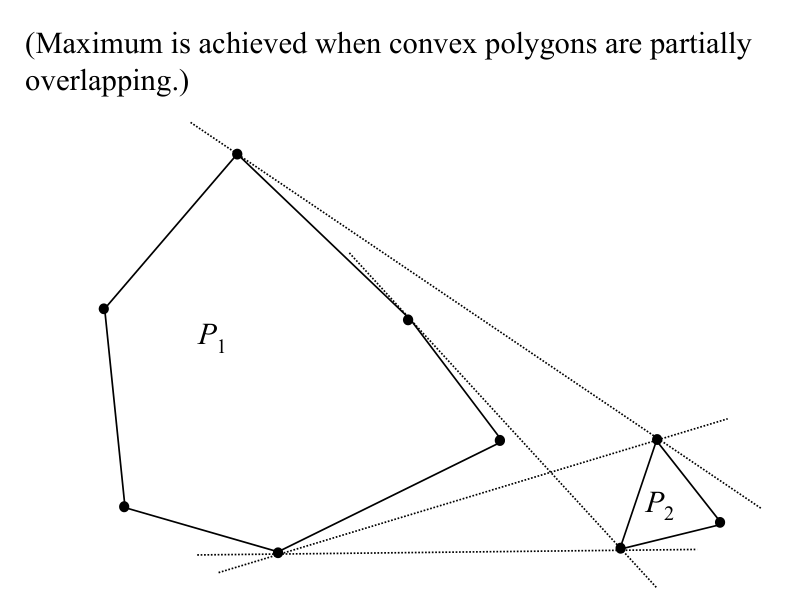

Figure from slide p. 243

Figure from slide p. 243

Slide-by-slide digestion

p. 242 - Divide-and-conquer

  • Supporting lines, 1
  • A by-product of the convex hull union algorithm is a method
  • of determining supporting lines of two convex hulls.
  • A supporting line of a convex polygon P is a straight line L
  • passing through a vertex of P such that the interior of P
  • lies entirely to one side of L.
  • The idea is analogous to the notion of tangent for circles.

p. 243 - Divide-and-conquer

  • Supporting lines, 2
  • Two convex polygons P1 and P2, with n and m vertices,
  • such that one is not entirely contained within the other,
  • have common supporting lines.
  • The number of common supporting lines is ≥2 and ≤2*min(n,m).
  • (Maximum is achieved when convex polygons are partially
  • overlapping.)

p. 244 - Divide-and-conquer

  • Supporting lines, 3
  • Once the convex hull of the union of P1 and P2 has been
  • constructed, common supporting lines can be found.
  • Scan the vertex list of H(P1 ∪P2);
  • any pair of consecutive vertices where one originated in P1
  • and the other in P2 defines a common supporting line.

What you must be able to say or do in an exam

  • Give the precise definitions.
  • Distinguish similar notions cleanly.
  • Use the right primitive test or formula on a concrete example.

Complexity and performance facts

Used as a linear-time merge primitive once hulls are already in cyclic order.

Common mistakes and danger points

  • Do not confuse supporting lines with arbitrary lines through hull vertices.

Exam-style drills and answer skeletons

Definition drill

Question. Give the precise definitions and the most important consequences from supporting lines from hull union.

How to answer. A strong answer distinguishes similar objects and uses the course terminology exactly.

Recap

What you must know cold

  • Definition of a supporting line for a convex polygon or two convex polygons.
  • Upper and lower common tangents.
  • Why the hull of a union reveals these lines.

Core test / key idea

  • A common supporting line touches both polygons and leaves each polygon entirely on the same side.
  • Finding upper/lower tangents is the key to linear-time hull merge.

Complexity

  • Used as a linear-time merge primitive once hulls are already in cyclic order.

Common mistakes / danger points

  • Do not confuse supporting lines with arbitrary lines through hull vertices.

End-of-file summary

  • Definition of a supporting line for a convex polygon or two convex polygons.
  • Upper and lower common tangents.
  • Why the hull of a union reveals these lines.
  • Used as a linear-time merge primitive once hulls are already in cyclic order.
  • Do not confuse supporting lines with arbitrary lines through hull vertices.
