Dynamic/on-line convex hull insertion: problem setting and core idea

Scope

  • Slides: pp. 245-253
  • Major topic folder: convex-hulls
  • Recording files touching this material: CS 564 - 02.27 11.2.txt, CS 564 - 03.04 12.1.txt
  • Goal of this file: You should be able to study this topic without reopening the slide deck.

Big picture

Now the hull is no longer static. The question becomes: if a new point arrives, how much of the current hull survives? The answer is “all of it except the visible chain between two support vertices.”

What you must know cold

  • Static vs dynamic / online hull problem.
  • Case distinction: inserted point inside current hull vs outside it.
  • Support lines from the new point to the current hull.

Core ideas and reasoning

  • If the new point lies inside the hull, nothing changes.
  • If it lies outside, exactly the chain of hull vertices visible from the new point is replaced by the new point together with two support edges.

Figures to actually look at

These are cropped from the main slide PDF. Do not skip them.

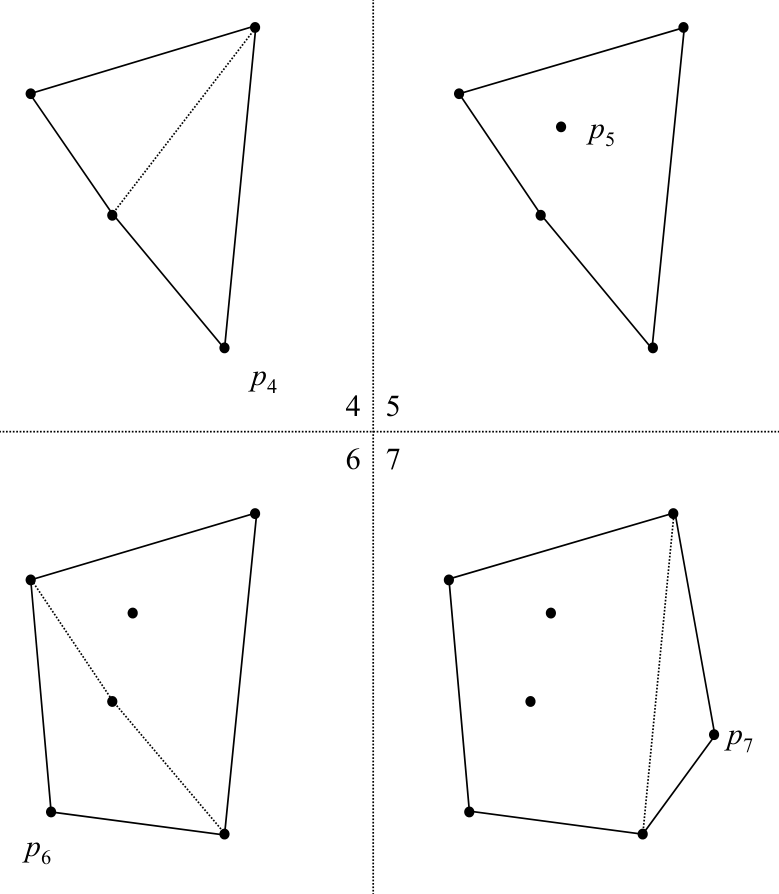

Figure from slide p. 246

Figure from slide p. 246

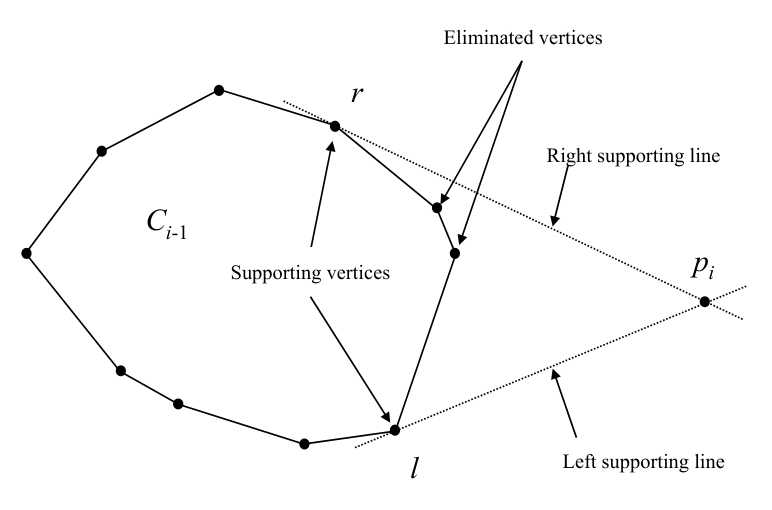

Figure from slide p. 251

Figure from slide p. 251

Slide-by-slide digestion

p. 245 - Dynamic hull (insertion)

  • Hull maintenance during insertion, 1
  • Maintain H(S) as points are added to S.

p. 246 - Dynamic hull (insertion)

  • Hull maintenance during insertion, 2
  • Maintain H(S) as points are added to S.

p. 247 - Dynamic hull (insertion)

  • Definitions
  • Preparata
  • static
  • Set of object remains fixed between operations
  • (e.g., between queries in repetitive mode).
  • dynamic
  • Set of objects can change between operations.
  • Insertions and deletions allowed in general,
  • but sometimes constrained.
  • Implies S must be in some updatable data structure.

p. 248 - Dynamic hull (insertion)

  • Problem definitions
  • ON-LINE CONVEX HULL
  • INSTANCE: Sequence of N points in the plane p1, p2, …, pN.
  • QUESTION: Find their convex hull in such a way that after
  • pi is processed we have H({p1, p2, …, pi}).
  • REAL-TIME CONVEX HULL
  • QUESTION: Find their convex hull on-line assuming constant
  • interarrival delay.
  • The algorithm must maintain some representation of the hull and
  • update it as points are inserted. Can this be done and still achieve

p. 249 - Dynamic hull (insertion)

  • Algorithms
  • Shamos (1978), mentioned in text p. 119, not covered.
  • Preparata (1979), presented in text pp. 119-124, covered.
  • Latter is real-time (hence is on-line).
  • Key idea, 1
  • Assume the points are inserted in sequence p1, p2, …, pN.
  • Let pi be the current point and Ci-1 = H({p1, p2, …, pi-1}).
  • Finding Ci requires finding the supporting lines from pi to Ci-1,
  • if they exist (i.e., pi is external to Ci-1).
  • (If pi is internal to Ci-1, then Ci = Ci-1.)

p. 250 - Dynamic hull (insertion)

  • Key idea, 2
  • Finding Ci requires finding the supporting lines from pi to Ci-1,
  • if they exist (i.e., pi is external to Ci-1).
  • (If pi is internal to Ci-1, then Ci = Ci-1.)
  • Another example:
  • Ci-1
  • Left supporting line
  • Right supporting line
  • Supporting vertices

p. 251 - Dynamic hull (insertion)

  • Algorithm overview
  • For each pi,
  • If pi is internal to Ci-1, then Ci = Ci-1, and pi is eliminated.
  • If pi is external to Ci-1, then we must
    1. Find the supporting lines from pi to Ci-1.
    1. Ci = pi || r … l
/* vertices of Ci-1 from r to l */
The problem reduces to finding the supporting lines,
i.e., finding the supporting vertices l and r.
The data structure for the vertices of Ci-1 will be given soon,

p. 252 - Dynamic hull (insertion)

  • Classifying a vertex
  • We need to classify any vertex v of Ci-1 w.r.t. pi
  • (or w.r.t. the segment piv).
  • v′
  • v′′
  • (b) Supporting;
  • the two vertices adjacent to v
  • lie on the same side of line pv
  • (c) Reflex;
  • segment pv does not intersect

p. 253 - Dynamic hull (insertion)

  • Searching for a supporting vertex
  • Suppose we have pi and v a vertex of Ci-1.
  • Assume we seek l, the left supporting vertex.
    1. Classify v w.r.t. to pi.
    1. If v is supporting, l = v, return.
    1. If v is concave, v = v′, repeat.
    1. If v is reflex, v = v′′, repeat.
  • This is advancing along Ci-1, searching for l.
  • Eventually the supporting vertex l will be found.
  • Finding r is analogous.

What you must be able to say or do in an exam

  • State the input, output, preprocessing, and query/update model precisely.
  • Explain the invariant or ordering that makes the method work.
  • Trace the method by hand on a small example.
  • Give the exact time and space bounds.
  • Mention one edge case, degeneracy, or limitation.

Complexity and performance facts

Core geometric task is locating left/right support vertices quickly.

Common mistakes and danger points

  • Do not recompute the full hull from scratch unless the question explicitly allows the naive method.

Professor emphasis from recordings

These points are distilled from the related recordings and focus on what the professor slowed down for, warned about, or connected to homework/exam reasoning.

  • For on-line hull insertion, the lecture separates the easy case from the real work: if the new point is inside the current hull, nothing changes.
  • When the point is outside, the whole problem becomes finding the two supporting lines/tangents that bracket the visible chain.
  • He also notes that a careful case analysis is required, because support/reflex combinations determine the update.

Exam-style drills and answer skeletons

Existing drill reminders from the earlier pack: - Adapted from HW2-Q6: Design an O(n + X/d) algorithm for a d-approximate convex hull, where X is x-span of the point set.

Dynamic hull insertion drill

Question. A new point arrives. Explain how to decide whether it changes the hull and what supporting-line information must be found before updating the vertex sequence.

How to answer. If the point is inside the current hull, ignore it. Otherwise locate left and right tangents, delete the obscured chain, and splice the new point in.

Core exam drill

Question. State the problem solved by dynamic/on-line convex hull insertion: problem setting and core idea, describe preprocessing/query/update steps if any, and give the time and space bounds.

How to answer. An excellent answer names the input, the output, the invariant or ordering exploited by the method, and the exact asymptotic costs.

Hand-trace drill

Question. Trace dynamic/on-line convex hull insertion: problem setting and core idea on a small example by hand and explain each comparison or structural change.

How to answer. On this course, being able to run the method on a picture matters more than writing vague slogans.
