Dynamic/on-line convex hull insertion: data structure, search, update, and analysis

Scope

  • Slides: pp. 254-263
  • Major topic folder: convex-hulls
  • Recording files touching this material: CS 564 - 02.27 11.2.txt, CS 564 - 03.04 12.1.txt
  • Goal of this file: You should be able to study this topic without reopening the slide deck.

Big picture

This section is about making dynamic hull updates fast by storing the hull in a searchable, concatenable structure rather than a raw cyclic list.

What you must know cold

  • Operations needed: search, split, splice/concatenate.
  • Balanced-tree or concatenable-queue representation of hull vertices.
  • Locate support vertices, remove visible chain, insert new point, restore cyclic order.

Core ideas and reasoning

  • The hull is maintained in cyclic order in a structure supporting logarithmic search and logarithmic local surgery.
  • Update = find support vertices + split at supports + discard visible chain + insert the new point + concatenate the remaining pieces.

Figures to actually look at

These are cropped from the main slide PDF. Do not skip them.

Figure from slide p. 257

Figure from slide p. 257

Figure from slide p. 258

Figure from slide p. 258

Slide-by-slide digestion

p. 254 - Dynamic hull (insertion)

  • Data structure for Ci-1
  • The data structure for Ci-1 must support certain operations:
    1. SEARCH an ordered string of items (the vertices of the hull)
  • to locate the supporting lines from pi.
    1. SPLIT a string of items into two substrings.
    1. CONCATENATE (or SPLICE) two strings of items.
    1. INSERT one item (e.g., the current pi) in its ordered location.
  • The concatenable queue data structure supports these operations,
  • all in O(log N) time, where N is the number of items stored.
  • (For more information, see [Aho,1974] or [Reingold,1977].)

p. 255 - Dynamic hull (insertion)

  • Search tree for Ci-1
  • A concatenable queue is a height balanced search tree, call it T.
  • It stores the vertices of Ci-1 in (counterclockwise) order.
  • In T, the cycle of vertices of Ci-1 appears as a chain, in order.
  • The first and last items are considered to be adjacent.
  • Vertex M is the vertex of the root of T.
  • Vertex m is the vertex of the leftmost (first) node of T.
  • Angle α is angle mpiM; α may be convex (≤π) or reflex (> π).
  • Each node of T corresponds
  • to a vertex of Ci-1.

p. 256 - Dynamic hull (insertion)

  • Search combinations
  • If we examine the classifications of m, M, and α,
  • there are 18 possible combinations.
  • Vertex m is concave, supporting, or reflex.
  • Vertex M is concave, supporting, or reflex.
  • Angle α is convex or reflex.
  • convex
  • concave
  • supporting
  • The action to take to find l and r depends on the combination.

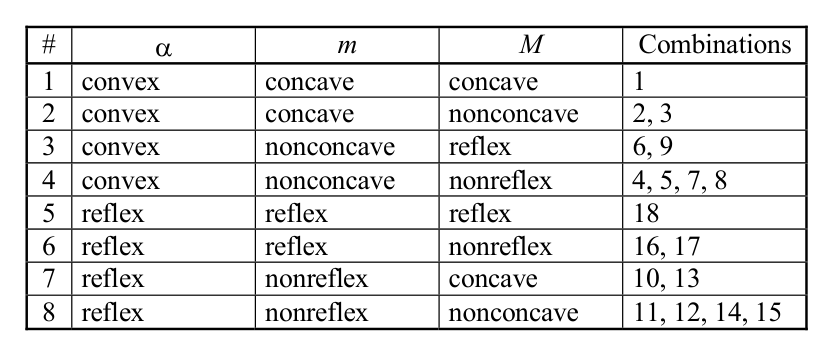

p. 257 - Dynamic hull (insertion)

  • Search cases
  • The 18 possible combinations reduce to 8 cases
  • where distinct actions are required.
  • Combinations
  • convex
  • concave
  • nonconcave
  • nonreflex

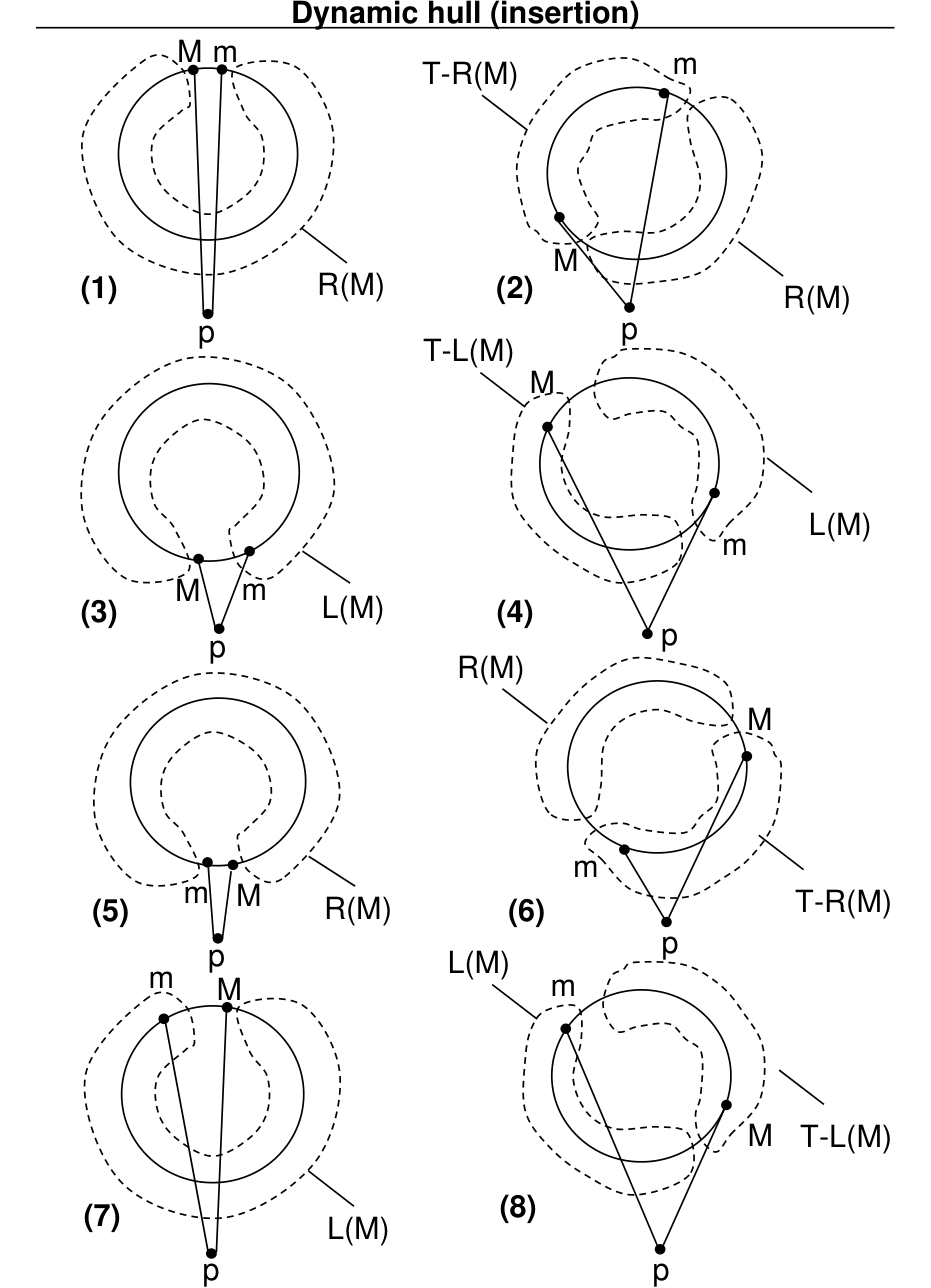

  • Figure 3.16, text p. 122, illustrates the cases.
  • In Figure 3.16:

p. 258 - Dynamic hull (insertion)

  • T-R(M)
  • T-L(M)

p. 259 - Dynamic hull (insertion)

  • Finding l and r, 1
  • A distinct action is required to locate l and r in each of the 8 cases.
  • Consider cases 2, 4, 6, and 8.
  • Vertices l and r are known to exist, because pi cannot be internal.
  • (Point pi can be internal only if m and M are both concave.)
  • In these cases, l and r are in separate subtrees of the root of T
  • (one of the subtrees is extended to include the root in each case).
  • Thus l and r can be found by analogous searches of the two subtrees.
  • For example, l is found by the following function:
procedure LEFTSEARCH(T)
begin
  { T: balanced tree on hull vertices of C_{i-1}; locate left supporting vertex l of p_i }
  v ← root(T)
  while true do
    classify v w.r.t. p_i (and edge p_i v): supporting / concave / reflex / internal
    if v is left supporting then
      return v
    else if v is concave toward p_i then
      v ← child on the subchain that may still contain l
    else if v is reflex or internal then
      v ← other child (per slide case analysis)
  end while
  { Symmetric RIGHTSEARCH(T) finds r. Together they trace O(log N) nodes per insertion. }
end

p. 260 - Dynamic hull (insertion)

  • Finding l and r, 2
  • A distinct action is required to locate l and r in each of the 8 cases.
  • Consider cases 1, 3, 5, and 7.
  • Vertices l and r may not exist,
  • because pi could be internal in cases 1 and 7.
  • In these cases, if they exist l and r are in the same subtree
  • of the root of T (the circled subtree in Figure 3.16).
  • Case
  • Subtree
  • The search calls itself recursively on that subtree until one of cases

p. 261 - Dynamic hull (insertion)

  • Finding l and r, 3
  • In general, finding l and r for pi involves tracing a single path in T
  • from the root to the node where l and r must be in separate subtrees,
  • and then following two paths to find l and r from there.
  • T contains O(N) nodes (actually it has < i when pi is added, i ≤N).
  • Since T is balanced and therefore has O(log N) levels,
  • and O(1) time is expended at each node on the two paths,
  • the entire search requires O(log N) time.

p. 262 - Dynamic hull (insertion)

  • Inserting pi into the hull
  • If pi is external to Ci-1, it must be added,
  • and possibly some other vertices removed, to produce Ci.
  • Put another way, the (possibly empty) chain of vertices between
  • l and r must be replaced with pi.
  • Vertex l may either precede or follow vertex r in the vertex
  • order of Ci-1. The “splicing in” step requires a different set of
  • operations for each case.
  • Vertex sequence
  • Split

p. 263 - Dynamic hull (insertion)

  • Analysis
  • Each insertion requires O(log N) time:
    1. O(log N) to find l and r
    1. O(log N) to splice in pi
  • For N insertions, the overall time is O(N log N).
  • The storage required is O(N) for T.

What you must be able to say or do in an exam

  • State the input, output, preprocessing, and query/update model precisely.
  • Explain the invariant or ordering that makes the method work.
  • Trace the method by hand on a small example.
  • Give the exact time and space bounds.
  • Mention one edge case, degeneracy, or limitation.

Complexity and performance facts

O(log N) per insertion in the course presentation; O(N log N) total for N insertions.

Common mistakes and danger points

  • The data structure is there to make the visible-chain replacement fast; explain that connection explicitly.

Professor emphasis from recordings

These points are distilled from the related recordings and focus on what the professor slowed down for, warned about, or connected to homework/exam reasoning.

  • The recording explicitly mentions that the many local cases can be reduced to a smaller set once equivalent support/reflex situations are merged.
  • This topic is procedural: if you cannot say how the search walks the structure and how the hull list is updated, you do not really know it.

Exam-style drills and answer skeletons

Core exam drill

Question. State the problem solved by dynamic/on-line convex hull insertion: data structure, search, update, and analysis, describe preprocessing/query/update steps if any, and give the time and space bounds.

How to answer. An excellent answer names the input, the output, the invariant or ordering exploited by the method, and the exact asymptotic costs.

Hand-trace drill

Question. Trace dynamic/on-line convex hull insertion: data structure, search, update, and analysis on a small example by hand and explain each comparison or structural change.

How to answer. On this course, being able to run the method on a picture matters more than writing vague slogans.

Recap

What you must know cold

  • Operations needed: search, split, splice/concatenate.
  • Balanced-tree or concatenable-queue representation of hull vertices.
  • Locate support vertices, remove visible chain, insert new point, restore cyclic order.

Core test / key idea

  • The hull is maintained in cyclic order in a structure supporting logarithmic search and logarithmic local surgery.
  • Update = find support vertices + split at supports + discard visible chain + insert the new point + concatenate the remaining pieces.

Complexity

  • O(log N) per insertion in the course presentation; O(N log N) total for N insertions.

Common mistakes / danger points

  • The data structure is there to make the visible-chain replacement fast; explain that connection explicitly.

Professor emphasis (from recordings)

  • The recording explicitly mentions that the many local cases can be reduced to a smaller set once equivalent support/reflex situations are merged.
  • This topic is procedural: if you cannot say how the search walks the structure and how the hull list is updated, you do not really know it.

End-of-file summary

  • Operations needed: search, split, splice/concatenate.
  • Balanced-tree or concatenable-queue representation of hull vertices.
  • Locate support vertices, remove visible chain, insert new point, restore cyclic order.
  • O(log N) per insertion in the course presentation; O(N log N) total for N insertions.
  • The data structure is there to make the visible-chain replacement fast; explain that connection explicitly.
  • The recording explicitly mentions that the many local cases can be reduced to a smaller set once equivalent support/reflex situations are merged.
