Gift wrapping in higher dimensions: algorithm and adjacent facets

Scope

  • Slides: pp. 272-279
  • Major topic folder: convex-hulls
  • Recording files touching this material: CS 564 - 03.06 13.1.txt
  • Goal of this file: You should be able to study this topic without reopening the slide deck.

Big picture

This is Jarvis/gift wrapping generalized to facets. Instead of walking from one hull edge to the next, you walk from one hull facet to adjacent facets across shared subfacets.

What you must know cold

  • Facet adjacency via shared (d-2)-dimensional subfacets.
  • How to find the next facet adjacent to a known facet.
  • Queue/frontier view of the search over unprocessed boundary pieces.

Core ideas and reasoning

  • Starting from one known hull facet, examine its frontier subfacets.
  • For each frontier subfacet, find the adjacent supporting facet that keeps all points on the correct side.
  • Continue until all frontier subfacets are resolved.

Figures to actually look at

These are cropped from the main slide PDF. Do not skip them.

Figure from slide p. 275

Figure from slide p. 275

Figure from slide p. 277

Figure from slide p. 277

Slide-by-slide digestion

p. 272 - Gift wrapping, d > 2

  • Gift wrapping
  • Proposed by Chand and Kapur (1970).
  • Analyzed by Bhattacharya (1982).
  • Specialized for d = 2 by Jarvis (1973), Jarvis’ march.
  • Key idea: Given one facet (a (d-1)-face) of the convex hull,
  • find a neighboring facet of the hull by “wrapping”
  • a (d-1)-dimensional affine set around the point set.
  • Continue from each facet to its neighbors until all facets are found.
  • For example, in d = 3, imagine wrapping a sheet of 2-dimensional
  • wrapping paper around a 3-dimensional gift box.

p. 273 - Gift wrapping, d > 2

  • Simplicial assumption
  • As presented (here and in the text), the algorithm assumes that
  • the resulting polytope (the convex hull) is simplicial.
  • Recall that in a simplicial d-polytope, each facet is a (d-1)-simplex,
  • and is determined by exactly d vertices.
  • There will be no points in S coplanar with the d vertices that
  • determine each facet of the convex hull.
  • Theorem. In a simplicial d-polytope, a subfacet is shared by exactly
  • two facets, and two facets F1 and F2 share a subfacet e
  • iff e is determined by a common subset, with d - 1 vertices,

p. 274 - Gift wrapping, d > 2

  • Finding an adjacent facet, in general
  • Let S = { p1, p2, … pN} be a finite set of points in d-space (Ed).
  • Assume a facet F1 of H(S) is known, with all its subfacets.
  • The mechanism to advance from F to an adjacent facet F′,
  • which shares subfacet e with F,
  • is to select from among all the points of S not vertices of F
  • the point p′ such that all other points of S
  • are beneath the hyperplane aff(e ∪p′).
  • In other words, from among all the hyperplanes determined by e
  • and a point p′ ∈S but not in F,

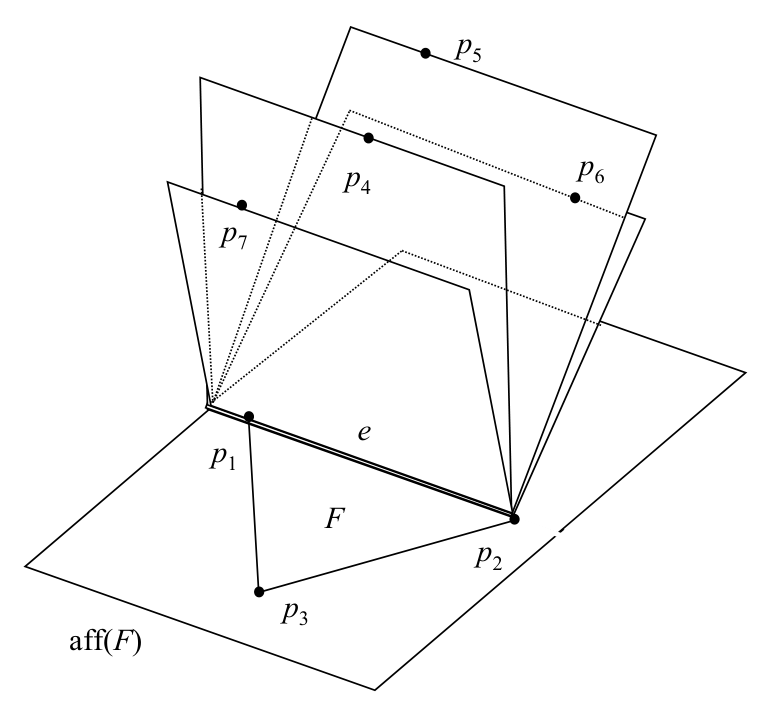

p. 275 - Gift wrapping, d > 2

  • Finding an adjacent facet, for d = 3
  • Facet F is known. Consider the set of planes determined by edge e
  • and the points of S and select the one which forms the largest
  • angle < π (convex angle) with aff(F).
  • Points p1, p2, p3 determine F, which determines aff(F).
  • Compare the planes determined by e and p4, p5, p6, and p7.
  • aff(F)

p. 276 - Gift wrapping, d > 2

  • Finding the largest angle
  • The angle comparison is carried out by comparing cotangents
  • for each point pk ∈S not part of F.
  • The details are in the next slide.
  • The time required for one advance is O(d3 + Nd).
  • O(d3) to compute a vector needed for the angle comparisons,
  • done once per advance (gift wrapping step).
  • O(Nd) computing and comparing cotangents for O(N) points.
  • aff(F)

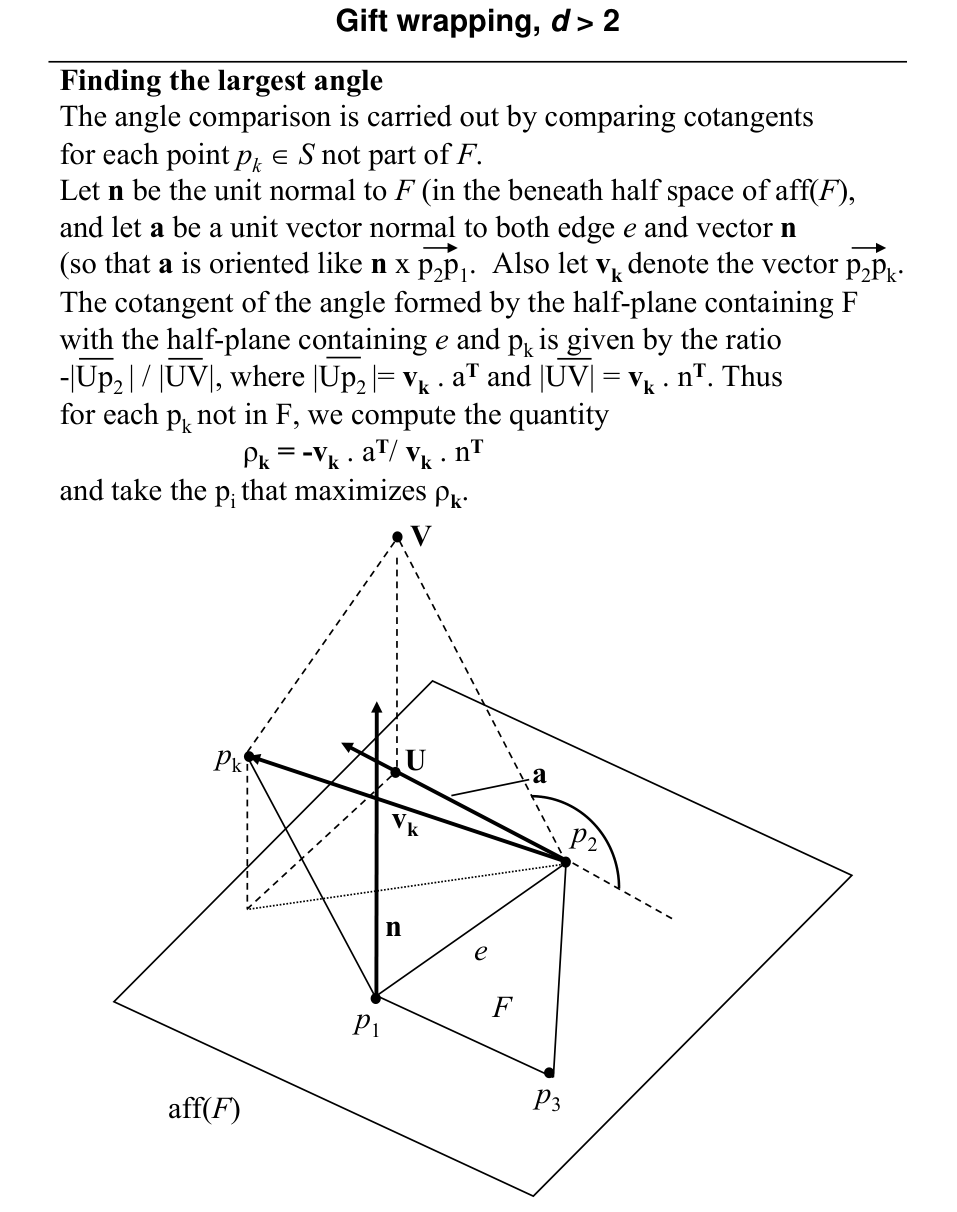

p. 277 - Gift wrapping, d > 2

  • Finding the largest angle
  • The angle comparison is carried out by comparing cotangents
  • for each point pk ∈S not part of F.
  • Let n be the unit normal to F (in the beneath half space of aff(F),
  • and let a be a unit vector normal to both edge e and vector n
  • (so that a is oriented like n x p2p1. Also let vk denote the vector p2pk.
  • The cotangent of the angle formed by the half-plane containing F
  • with the half-plane containing e and pk is given by the ratio
  • -|Up2 | / |UV|, where |Up2 |= vk . aT and |UV| = vk . nT. Thus
  • for each pk not in F, we compute the quantity

p. 278 - Gift wrapping, d > 2

  • Overview of the algorithm
  • The algorithm starts from an initial facet.
  • For each subfacet of it, construct the adjacent facets.
  • Move to one of the new facets and continue until all facets
  • have been constructed.
  • A pool of subfacets which are candidates for being used is kept.
  • A subfacet e, shared by facets F and F′, is a candidate to be used
  • iff F or F′ but not both have been constructed.

p. 279 - Gift wrapping, d > 2

  • Algorithm
  • Queue Q stores facets. File ℑstores the “pool” of subfacets.
procedure GiftWrapping(S)
begin
  Q ← ∅
  ℑ ← ∅
  F ← find an initial convex hull facet of S
  insert all subfacets of F into pool ℑ
  enqueue F on Q
  while Q ≠ ∅ do
    F ← dequeue(Q)
    for each subfacet e of F that is a candidate in ℑ do
      wrap: construct the adjacent facet F′ sharing e (supporting hyperplane)
      insert new subfacets of F′ into ℑ per adjacency rules
      if F′ is new then enqueue F′ on Q
    end for
    update ℑ after processing F  { e.g. remove subfacets whose two incident facets are both built }
  end while
end

What you must be able to say or do in an exam

  • State the input, output, preprocessing, and query/update model precisely.
  • Explain the invariant or ordering that makes the method work.
  • Trace the method by hand on a small example.
  • Give the exact time and space bounds.
  • Mention one edge case, degeneracy, or limitation.

Complexity and performance facts

Depends on dimension and number of produced facets/subfacets.

Common mistakes and danger points

  • Facet adjacency is more subtle than edge adjacency in 2D; be clear what object is shared.

Exam-style drills and answer skeletons

Core exam drill

Question. State the problem solved by gift wrapping in higher dimensions: algorithm and adjacent facets, describe preprocessing/query/update steps if any, and give the time and space bounds.

How to answer. An excellent answer names the input, the output, the invariant or ordering exploited by the method, and the exact asymptotic costs.

Hand-trace drill

Question. Trace gift wrapping in higher dimensions: algorithm and adjacent facets on a small example by hand and explain each comparison or structural change.

How to answer. On this course, being able to run the method on a picture matters more than writing vague slogans.

Recap

What you must know cold

  • Facet adjacency via shared (d-2)-dimensional subfacets.
  • How to find the next facet adjacent to a known facet.
  • Queue/frontier view of the search over unprocessed boundary pieces.

Core test / key idea

  • Starting from one known hull facet, examine its frontier subfacets.
  • For each frontier subfacet, find the adjacent supporting facet that keeps all points on the correct side.
  • Continue until all frontier subfacets are resolved.

Complexity

  • Depends on dimension and number of produced facets/subfacets.

Common mistakes / danger points

  • Facet adjacency is more subtle than edge adjacency in 2D; be clear what object is shared.

End-of-file summary

  • Facet adjacency via shared (d-2)-dimensional subfacets.
  • How to find the next facet adjacent to a known facet.
  • Queue/frontier view of the search over unprocessed boundary pieces.
  • Depends on dimension and number of produced facets/subfacets.
  • Facet adjacency is more subtle than edge adjacency in 2D; be clear what object is shared.
