Proximity lower bounds and transformations

Scope

  • Slides: pp. 300-307
  • Major topic folder: proximity
  • Recording files touching this material: CS 564 - 03.11 14.1.txt, CS 564 - 03.13 15.1a.txt, CS 564 - 03.13 15.1b.txt, CS 564 - 03.25 16.1.txt, Mar 13, 1.47 PM​.txt
  • Goal of this file: You should be able to study this topic without reopening the slide deck.

Big picture

This section extends the reduction logic from convex hull to proximity problems. It is extremely exam-friendly because it tests understanding of transformations, not memorization of geometry.

What you must know cold

  • How reductions transfer lower bounds among element uniqueness, closest pair, all nearest neighbors, EMST, and triangulation.
  • Input transformation vs output extraction.
  • Why transformation direction matters.

Core ideas and reasoning

  • For example, element uniqueness reduces to closest pair by mapping x_i to points (x_i,0). Duplicate numbers produce zero-distance pairs.
  • Closest pair can reduce to all-nearest-neighbors by scanning the nearest-neighbor pairs for the minimum distance.
  • The transformation cost must not dominate the lower bound you want to transfer.

Figures to actually look at

These are cropped from the main slide PDF. Do not skip them.

Figure from slide p. 300

Figure from slide p. 300

Figure from slide p. 307

Figure from slide p. 307

Slide-by-slide digestion

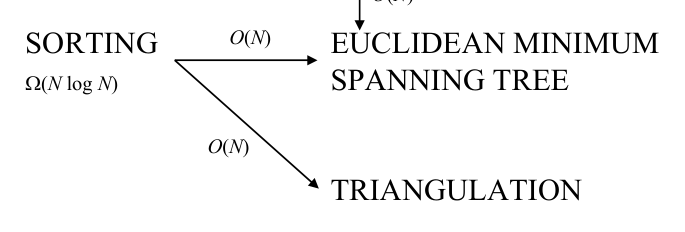

p. 300 - Lower bounds

  • The proximity problems we have defined can be transformed
  • into each other as follows:
  • ELEMENT
  • CLOSEST
  • ALL NEAREST
  • UNIQUENESS
  • PAIR
  • NEIGHBORS
  • Ω(N log N)
  • SORTING

p. 301 - Search problems

  • BINARY SEARCH ∝O(1) NEAREST NEIGHBOR SEARCH
  • BINARY SEARCH ∝O(1) k-NEAREST NEIGHBORS
  • Preparata defines BINARY SEARCH in a slightly unusual way,
  • apparently to simplify the lower bounds proof.
  • BINARY SEARCH
  • INSTANCE: Set S = {x1, x2, ..., xN} of N real numbers and
  • query real number q.
  • Assume that for 1≤i, j ≤N, i < j ⇔xi < xj (preprocessing).
  • QUESTION (Usual): Find xi such that xi ≤q < xi+1.
  • QUESTION (Preparata): Find xi closest to q.

p. 302 - BINARY SEARCH has lower bound in Ω(log N).

  • Transform BINARY SEARCH
  • to NEAREST NEIGHBOR SEARCH as follows:
    1. Transform instance of BINARY SEARCH:
  • S = {x1, x2, ..., xN} and q
  • to an instance of NEAREST NEIGHBOR SEARCH:
  • S′ = {(x1,0), (x2,0), ..., (xN,0)} and q′ = (q,0). O(N) time.
    1. Solve NEAREST NEIGHBOR SEARCH for S′ and q′;
  • let (xi,0) be the solution.
    1. Transform solution point (xi,0) to real number xi,
  • which is the solution to BINARY SEARCH. O(1) time.

p. 303 - But, there seems to be a problem with this proof,

  • as given in Preparata, p. 193:
  • The O(N) transformation dominates the Ω(log N) lower bound,
  • voiding the result.
  • We can get around that by considering the 1-dimensional version
  • of NEAREST NEIGHBOR SEARCH, which has an instance
  • identical to the instance of BINARY SEARCH.
  • This resolution still has two difficulties:
    1. It assumes that 2-dimensional NEAREST NEIGHBOR
  • SEARCH has the same lower bound as the 1-dimensional
  • version (this is probably easily proven).

p. 304 - ELEMENT UNIQUENESS has lower bound in Ω(N log N).

  • Transform ELEMENT UNIQUENESS
  • to CLOSEST PAIR as follows:
    1. Transform instance of ELEMENT UNIQUENESS:
  • S = {x1, x2, ..., xN}
  • to an instance of CLOSEST PAIR:
  • S′ = {(x1,0), (x2,0), ..., (xN,0)}. O(N) time.
    1. Solve CLOSEST PAIR for S′;
  • let (xi,0) and (xj,0) be the solution (the two closest points).
    1. Transform this into a solution to ELEMENT UNIQUENESS:
  • If xi = xj, return FALSE, else return TRUE.

p. 305 - All nearest neighbors

  • CLOSEST PAIR has lower bound in Ω(N log N).
  • Transform CLOSEST PAIR
  • to ALL NEAREST NEIGHBORS as follows:
    1. An instance of CLOSEST PAIR:
  • S = {p1, p2, ..., pN}
  • is an instance of ALL NEAREST NEIGHBORS:
  • S = {p1, p2, ..., pN}. O(0) time.
    1. Solve ALL NEAREST NEIGHBORS for S;
  • let A = {(p1,q1), (p2,q2), …, (pN,qN)} be the solution
  • (qi ∈S, a nearest neighbor for each point in S).

p. 306 - Euclidean minimum spanning tree

  • SORTING has lower bound in Ω(N log N).
  • Transform SORTING
  • to EUCLIDEAN MINIMUM SPANNING TREE (EMST) as follows:
    1. An instance of SORTING:
  • S = {x1, x2, ..., xN}
  • to an instance of EMST:
  • S′ = {(x1,0), (x2,0), ..., (xN,0)}. O(N) time.
    1. Solve EMST for S′.
  • A set of points along the x axis has a unique EMST,
  • where there is an edge ((xi,0),(xj,0))

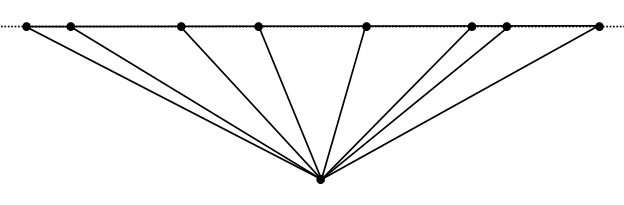

p. 307 - Triangulation

  • SORTING has lower bound in Ω(N log N).
  • Transform SORTING to TRIANGULATION as follows:
    1. An instance of SORTING:
  • S = {x1, x2, ..., xN}
  • to an instance of TRIANGULATION:
  • S′ = {(x1,0), (x2,0), ..., (xN,0)} ∪{(0,-1)}. O(N) time.
    1. Solve TRIANGULATION for S′.
  • Set of points S′ has a unique triangulation,
  • shown in the figure.
  • Let T = {(xi1,xj1), (xi2,xj2), …, (xiN,xjN)} be the solution

What you must be able to say or do in an exam

  • State the claim precisely before giving the argument.
  • Identify the known lower bound / recurrence / invariant you are using.
  • Keep the direction of the argument correct.
  • End with the exact asymptotic conclusion.

Complexity and performance facts

Course claim: these proximity problems inherit Ω(N log N) lower bounds in the standard model.

Common mistakes and danger points

  • Students often reverse the reduction direction or produce an algorithm instead of a reduction proof.
  • Output extraction must actually reconstruct the original problem answer.

Professor emphasis from recordings

These points are distilled from the related recordings and focus on what the professor slowed down for, warned about, or connected to homework/exam reasoning.

  • Again the professor returns to transformation direction: to transfer a lower bound, you need a fast transformation from the known-hard problem to the target problem.
  • A classic trap mentioned in lecture is proposing a transformation whose conversion step is already too expensive, which destroys the claimed lower bound.

Exam-style drills and answer skeletons

Existing drill reminders from the earlier pack: - Show element uniqueness ≤ closest pair using an explicit input and output transformation. - Show closest pair ≤ all nearest neighbors and conclude a lower bound. - Explain why a failed reverse transformation does not disprove the correct reduction direction.

Lower-bound drill

Question. Use a problem transformation to transfer a known Ω(N log N) lower bound to another proximity problem.

How to answer. You must name the source problem, the target problem, the transformation cost, and the contradiction that would arise if the target were asymptotically faster.

Proof drill

Question. Explain the main argument in proximity lower bounds and transformations in a logically correct order.

How to answer. Do not jump from intuition to conclusion. State the reduction/invariant/recurrence first, then derive the claimed bound.

Recap

What you must know cold

  • How reductions transfer lower bounds among element uniqueness, closest pair, all nearest neighbors, EMST, and triangulation.
  • Input transformation vs output extraction.
  • Why transformation direction matters.

Core test / key idea

  • For example, element uniqueness reduces to closest pair by mapping x_i to points (x_i,0). Duplicate numbers produce zero-distance pairs.
  • Closest pair can reduce to all-nearest-neighbors by scanning the nearest-neighbor pairs for the minimum distance.
  • The transformation cost must not dominate the lower bound you want to transfer.

Complexity

  • Course claim: these proximity problems inherit Ω(N log N) lower bounds in the standard model.

Common mistakes / danger points

  • Students often reverse the reduction direction or produce an algorithm instead of a reduction proof.
  • Output extraction must actually reconstruct the original problem answer.

Professor emphasis (from recordings)

  • Again the professor returns to transformation direction: to transfer a lower bound, you need a fast transformation from the known-hard problem to the target problem.
  • A classic trap mentioned in lecture is proposing a transformation whose conversion step is already too expensive, which destroys the claimed lower bound.

End-of-file summary

  • How reductions transfer lower bounds among element uniqueness, closest pair, all nearest neighbors, EMST, and triangulation.
  • Input transformation vs output extraction.
  • Why transformation direction matters.
  • Course claim: these proximity problems inherit Ω(N log N) lower bounds in the standard model.
  • Students often reverse the reduction direction or produce an algorithm instead of a reduction proof.
  • Output extraction must actually reconstruct the original problem answer.
