Closest pair: problem setup and 1D version

Scope

  • Slides: pp. 308-313
  • Major topic folder: proximity
  • Recording files touching this material: CS 564 - 03.13 15.2.txt, CS 564 - 03.25 16.1.txt, Mar 13, 2.34 PM​.txt
  • Goal of this file: You should be able to study this topic without reopening the slide deck.

Big picture

This file sets up the closest-pair algorithm by solving the easy 1D case first and then using divide and conquer as the template for 2D.

What you must know cold

  • Closest pair problem statement.
  • 1D closest pair after sorting: adjacent points only need to be checked.
  • How divide and conquer splits the 2D set by median x-coordinate.

Core ideas and reasoning

  • In 1D, once points are sorted, the closest pair must be adjacent in sorted order.
  • This suggests that order structure can drastically reduce comparisons.
  • In 2D, divide into left and right halves, solve recursively, then handle cross-border pairs in the merge step.

Figures to actually look at

These are cropped from the main slide PDF. Do not skip them.

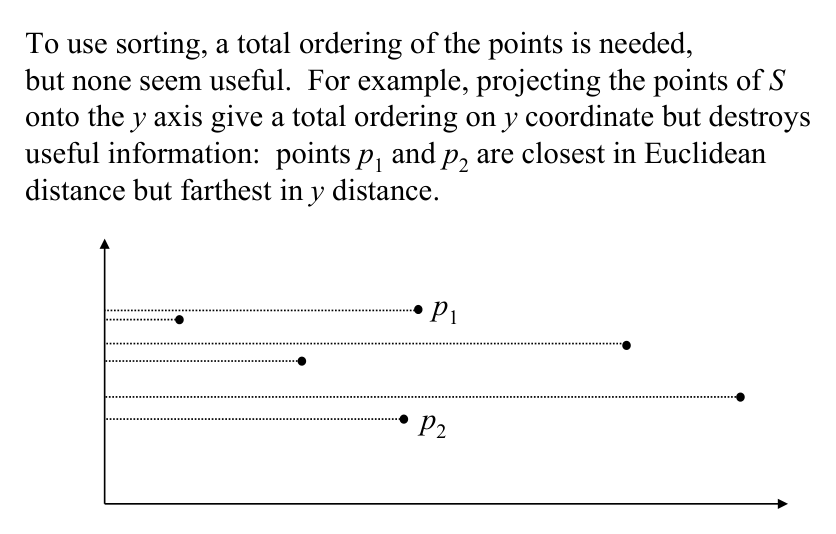

Figure from slide p. 308

Figure from slide p. 308

Slide-by-slide digestion

p. 308 - CLOSEST PAIR

  • INSTANCE: Set S = {p1, p2, ..., pN} of N points in the plane.
  • QUESTION: Determine the two points of S whose mutual
  • distance is smallest.
  • We’ve seen a proof that CLOSEST PAIR has a lower bound for
  • time ∈Ω(N log N).
  • We seek an algorithm with upper bound ∈O(N log N).
  • If found, these together imply that CLOSEST PAIR ∈θ(N log N).
  • Two algorithm paradigms come to mind for O(N log N):
    1. Sorting
    1. Divide-and-conquer

p. 309 - Using the divide-and-conquer paradigm,

  • time in O(N log N) can be achieved by:
    1. Dividing the problem into two equal-sized subproblems
    1. Solving those subproblems recursively
    1. Merging the subproblem solutions into an overall solution
  • in linear O(N) time.
  • Unfortunately, it is not immediately obvious how
  • to perform the merge in linear time.
  • Suppose the problem has been solved for subproblem sets S1 and S2,
  • where S1 ∪S2 = S, S1 ∩S2 = ∅, |S1| ≈|S2| ≈N/2;
  • giving a closest pair of points for S1 and another for S2.

p. 310 - We consider a divide-and-conquer algorithm for CLOSEST PAIR

  • in 1 dimension (d = 1).
  • Partition S, a set of points on a line, into two sets S1 and S2
  • at some point m such that for every point p ∈S1 and q ∈S2, p < q.
  • Solving CLOSEST PAIR recursively on S1 and S2
  • separately produces {p1, p2}, the closest pair in S1,
  • and {q1, q2}, the closest pair in S2.
  • Let δ be the smallest distance found so far:
  • δ = min(|p2 - p1|, |q2 - q1|)
  • The closest pair in S is either {p1, p2} or {q1, q2}
  • or some {p3, q3} with p3 ∈S1 and q3 ∈S2.

p. 311 - Divide-and-conquer for d = 1, 2

  • To check for such a point {p3, q3}, is it necessary to test
  • every possible pair of points in S1 and S2?
  • Note that if {p3, q3} is to be closer than δ (i.e., |q3 - p3| < δ),
  • then both p3 and q3 must be within δ of m.
  • How many points of S1 can lie within δ of m,
  • i.e., within the interval (m - δ, m]?
  • Because δ is the distance between the closest pair in either S1 or S2,
  • a semi-closed interval of length δ can contain at most 1 point.
  • For the same reason, there can be at most 1 point of S2
  • within δ of m, i.e., in the interval [m, m + δ).

p. 312 - procedure CPAIR1(S)

  • Input: X[1:N], N points of S in one dimension.
  • Output: δ, the distance between the two closest points.
procedure CPAIR1(S)
  { X[1:N]: points of S sorted along the line; |S| = N }
begin
  if |S| = 1 then
    return δ ← ∞
  if |S| = 2 then
    return δ ← |X[2] - X[1]|
  Construct(S1, S2)   { split at median m: S1 = {p : p ≤ m}, S2 = {p : p > m} }
  δ1 ← CPAIR1(S1)
  δ2 ← CPAIR1(S2)
  δ ← min(δ1, δ2)
  { Combine: only points within δ of split m can improve δ; in 1D at most one per side }
  return δ
end

p. 313 - Generalizing to d = 2

  • Partition two dimensional set S into subsets S1 and S2
  • such that every point of S1 lies to the left of every point of S2.
  • To do so, cut S by vertical line l at the median x coordinate of S.
  • Solve the problem recursively on S1 and S2.
  • Let {p1, p2} be the closest pair in S1 and {q1, q2} in S2.
  • δ1 = distance(p1,p2) and δ2 = distance(q1,q2)
  • are the minimum separations in S1 and S2 respectively.
  • δ = min(δ1, δ2)
  • Proximity
  • Closest pair, divide-and-conquer

What you must be able to say or do in an exam

  • State the input, output, preprocessing, and query/update model precisely.
  • Explain the invariant or ordering that makes the method work.
  • Trace the method by hand on a small example.
  • Give the exact time and space bounds.
  • Mention one edge case, degeneracy, or limitation.

Complexity and performance facts

1D: O(N log N) by sorting then linear scan, or O(N) after presorted input.

Common mistakes and danger points

  • Do not assume sorting by one coordinate alone solves the 2D problem. The merge step is the real content.

Professor emphasis from recordings

These points are distilled from the related recordings and focus on what the professor slowed down for, warned about, or connected to homework/exam reasoning.

  • The 1D closest-pair version is used in lecture as the warm-up that makes the divide-and-conquer recurrence feel obvious before the 2D merge complication appears.

Exam-style drills and answer skeletons

Existing drill reminders from the earlier pack: - For points on a line, prove why only predecessor and successor can be closest candidates. - Describe how an ordered structure can answer nearest-neighbor-on-a-line queries. - Adapted from HW2-Q2: For points on one axis stored in a range tree, find the closest neighbor in O(log N), then augment the structure to answer in O(1).

Closest-pair setup drill

Question. State the divide-and-conquer recurrence for closest pair and explain the easy 1D version completely.

How to answer. In 1D the closest pair is adjacent after sorting; in higher dimensions the merge is the hard part.

Core exam drill

Question. State the problem solved by closest pair: problem setup and 1d version, describe preprocessing/query/update steps if any, and give the time and space bounds.

How to answer. An excellent answer names the input, the output, the invariant or ordering exploited by the method, and the exact asymptotic costs.

Hand-trace drill

Question. Trace closest pair: problem setup and 1d version on a small example by hand and explain each comparison or structural change.

How to answer. On this course, being able to run the method on a picture matters more than writing vague slogans.

Recap

What you must know cold

  • Closest pair problem statement.
  • 1D closest pair after sorting: adjacent points only need to be checked.
  • How divide and conquer splits the 2D set by median x-coordinate.

Core test / key idea

  • In 1D, once points are sorted, the closest pair must be adjacent in sorted order.
  • This suggests that order structure can drastically reduce comparisons.
  • In 2D, divide into left and right halves, solve recursively, then handle cross-border pairs in the merge step.

Complexity

  • 1D: O(N log N) by sorting then linear scan, or O(N) after presorted input.

Common mistakes / danger points

  • Do not assume sorting by one coordinate alone solves the 2D problem. The merge step is the real content.

Professor emphasis (from recordings)

  • The 1D closest-pair version is used in lecture as the warm-up that makes the divide-and-conquer recurrence feel obvious before the 2D merge complication appears.

End-of-file summary

  • Closest pair problem statement.
  • 1D closest pair after sorting: adjacent points only need to be checked.
  • How divide and conquer splits the 2D set by median x-coordinate.
  • 1D: O(N log N) by sorting then linear scan, or O(N) after presorted input.
  • Do not assume sorting by one coordinate alone solves the 2D problem. The merge step is the real content.
  • The 1D closest-pair version is used in lecture as the warm-up that makes the divide-and-conquer recurrence feel obvious before the 2D merge complication appears.
  • Previous file in reading order: Proximity lower bounds and transformations
  • Next file in reading order: Closest pair: 2D merge step
  • Source slide range: pp. 308-313 of comp_geometry_slides_new.pdf
  • Related recordings: CS 564 - 03.13 15.2.txt, CS 564 - 03.25 16.1.txt, Mar 13, 2.34 PM​.txt
  • Related homework-derived exam prompts included here: Closest-pair setup drill
