Closest pair: 2D merge step

Scope

  • Slides: pp. 314-319
  • Major topic folder: proximity
  • Recording files touching this material: CS 564 - 03.13 15.2.txt, CS 564 - 03.25 16.1.txt, Mar 13, 2.34 PM​.txt
  • Goal of this file: You should be able to study this topic without reopening the slide deck.

Big picture

This is the heart of the closest-pair algorithm. The recursive halves are easy. The strip argument is where the theorem lives.

What you must know cold

  • After recursive calls return δ, only points within distance δ of the dividing line can form a cross pair.
  • Sort or maintain strip points by y-coordinate.
  • Each strip point needs to be compared with only a constant number of following points.

Core ideas and reasoning

  • Let δ = min(δ_L, δ_R). Any cross pair closer than δ must lie in the vertical strip of width 2δ around the divide.
  • Within that strip, geometric packing shows each point needs comparison with only a bounded number of later points in y-order.
  • That bounded-neighbor fact turns the merge from quadratic into linear.

Figures to actually look at

These are cropped from the main slide PDF. Do not skip them.

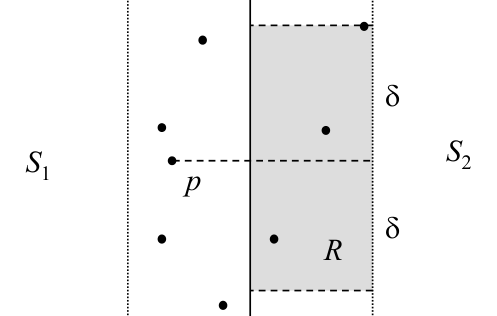

Figure from slide p. 315

Figure from slide p. 315

Figure from slide p. 317

Figure from slide p. 317

Slide-by-slide digestion

p. 314 - Where is the closest pair?

  • To perform the merge, it must be determined if there is a pair
  • of points {p, q} such that p ∈ S1 and q ∈ S2 and distance(p, q) < δ.
  • If such a pair exists, then p and q must both be within δ of l.
  • Let P1 and P2 be vertical strips (regions) of the plane of width δ
  • on either side of l.
  • If {p, q} exists, p must be within P1 and q within P2.
  • For d = 1, there was at most one candidate point for p and one for q.
  • For d = 2, every point in S1 and S2 may be a candidate,
  • as long as each is within δ of l.
  • This seems to imply that O(N/2) ⋅ O(N/2) ∈ O(N2)

p. 315 - Closing in on the closest pair

  • But is it really necessary for some p ∈S1 and within P1,
  • to determine the distance to every point q ∈S2 and within P2?
  • No. We really only need to do so for those points
  • that are within δ of p.
  • Thus we can bound the portion of P2 to consider by that distance.
  • The points to consider for a point p must lie within
  • the δ × 2δ rectangle R.
  • Proximity
  • Closest pair, divide-and-conquer

p. 316 - Distance computations required

  • How many points can there be in rectangle R?
  • Recall that no two points in P2 are closer than δ.
  • Because rectangle R has size δ × 2δ,
  • there can be at most 6 points within it;
  • any more and they would be closer than δ, a contradiction.
  • This means that for each of the O(N/2) points p ∈S1 within P1,
  • only 6 points must be checked, not O(N/2) for each,
  • so 6 ⋅O(N/2) = O(3N) ∈O(N) distance comparisons are needed
  • in the merge step, not O(N2).
  • ⇒An O(N log N) algorithm for CLOSEST PAIR is possible.

p. 317 - Proximity

  • Closest pair, divide-and-conquer
  • Which points much be checked?
  • Though an O(N log N) algorithm is possible, we do not have it yet.
  • Though we know that for a point p, only 6 points within P2
  • must be checked, we do not yet know which six.
  • Project p and all the points of S2 within P2 onto l.
  • Only the points within δ of p in that projection (y coordinate)
  • need be considered; as seen, there will be ≤ 6.
  • By sorting the points of S in order on y coordinate,
  • the nearest neighbor candidates for a point p can be found

p. 318 - Algorithm from Preparata, p. 198:

    1. Partition S into two subsets, S1 and S2,
  • about the vertical median line l.
    1. Find the closest pair separations δ1 and δ2 recursively.
    1. δ = min(δ1, δ2)
    1. Let P1 be the set of points of S1 that are within δ of the
  • dividing line l and let P2 be the corresponding subset of S2.
  • Project P1 and P2 onto l and sort by y coordinate.
  • Let P1
    • and P2
    • be the two sorted sequences, respectively.

p. 319 - Merge process algorithm

  • Preparata p. 199 says: “… when executing Step 4, extract the
  • points from the list in sorted order in only O(N) time.”
  • One way to assemble P1
  • *, for example, follows.
  • Let Y be the presorted points of S, i.e., an array of size N
  • storing the points of S in order by ascending y coordinate;
  • each entry has three fields: x, y, and active.
  • Let P1
    • be an array of size N with two fields: index and y.
{ Preparata p.199: build P1* — strip of S1 points within δ of line l, in y-order — in O(N) }
for i ← 1 to N do
  initialize P1*[i] (inactive / sentinel)
for i ← 1 to N scanning presorted array Y by increasing y do
  if point Y[i] lies in S1 and horizontal distance from Y[i] to dividing line l ≤ δ then
    Y[i].active ← true
    append (index, y) of Y[i] to the merge list backing P1*
{ Symmetric pass builds P2* for S2. Merge step: for each active point in y-order,
  compare only to O(1) neighbors in the δ×2δ strip (packing lemma: ≤ 6 candidates). }

What you must be able to say or do in an exam

  • State the input, output, preprocessing, and query/update model precisely.
  • Explain the invariant or ordering that makes the method work.
  • Trace the method by hand on a small example.
  • Give the exact time and space bounds.
  • Mention one edge case, degeneracy, or limitation.

Complexity and performance facts

Merge O(N) after maintaining the needed coordinate order; full recurrence gives O(N log N).

Common mistakes and danger points

  • Do not compare every strip point with every other strip point.
  • The constant-neighbor argument depends on the recursive δ guarantee inside each half.

Professor emphasis from recordings

These points are distilled from the related recordings and focus on what the professor slowed down for, warned about, or connected to homework/exam reasoning.

  • The whole lecture pressure point is the merge step: without a linear merge, divide-and-conquer gives you an ugly algorithm instead of an optimal one.
  • He emphasizes the packing argument in the strip. You are not allowed to just say 'check a few points'; you need the geometric reason that only a constant number matter.
  • The sorted-by-y view is not an implementation detail. It is what lets the merge remain linear.
  • Closest-pair merge pitfall: when extracting the 'active' points for the merge, mark only points in the strip (within the delta neighborhood of the dividing line), not every point from one recursive half.

Exam-style drills and answer skeletons

Existing drill reminders from the earlier pack: - State and justify the strip lemma used in the closest-pair merge step. - Trace the merge step on a small point set and show which comparisons are actually made. - Adapted from HW2-Q2: For points on one axis stored in a range tree, find the closest neighbor in O(log N), then augment the structure to answer in O(1).

Closest-pair merge drill

Question. In the 2D closest-pair algorithm, explain why only a constant number of candidates per point need to be checked in the strip.

How to answer. Use the δ-by-2δ strip geometry and the packing argument. The proof is not optional on an exam.

Core exam drill

Question. State the problem solved by closest pair: 2d merge step, describe preprocessing/query/update steps if any, and give the time and space bounds.

How to answer. An excellent answer names the input, the output, the invariant or ordering exploited by the method, and the exact asymptotic costs.

Hand-trace drill

Question. Trace closest pair: 2d merge step on a small example by hand and explain each comparison or structural change.

How to answer. On this course, being able to run the method on a picture matters more than writing vague slogans.

Recap

What you must know cold

  • After recursive calls return δ, only points within distance δ of the dividing line can form a cross pair.
  • Sort or maintain strip points by y-coordinate.
  • Each strip point needs to be compared with only a constant number of following points.

Core test / key idea

  • Let δ = min(δ_L, δ_R). Any cross pair closer than δ must lie in the vertical strip of width 2δ around the divide.
  • Within that strip, geometric packing shows each point needs comparison with only a bounded number of later points in y-order.
  • That bounded-neighbor fact turns the merge from quadratic into linear.

Complexity

  • Merge O(N) after maintaining the needed coordinate order; full recurrence gives O(N log N).

Common mistakes / danger points

  • Do not compare every strip point with every other strip point.
  • The constant-neighbor argument depends on the recursive δ guarantee inside each half.

Professor emphasis (from recordings)

  • The whole lecture pressure point is the merge step: without a linear merge, divide-and-conquer gives you an ugly algorithm instead of an optimal one.
  • He emphasizes the packing argument in the strip. You are not allowed to just say 'check a few points'; you need the geometric reason that only a constant number matter.
  • The sorted-by-y view is not an implementation detail. It is what lets the merge remain linear.
  • Closest-pair merge pitfall: when extracting the 'active' points for the merge, mark only points in the strip (within the delta neighborhood of the dividing line), not every point from one recursive half.

End-of-file summary

  • After recursive calls return δ, only points within distance δ of the dividing line can form a cross pair.
  • Sort or maintain strip points by y-coordinate.
  • Each strip point needs to be compared with only a constant number of following points.
  • Merge O(N) after maintaining the needed coordinate order; full recurrence gives O(N log N).
  • Do not compare every strip point with every other strip point.
  • The constant-neighbor argument depends on the recursive δ guarantee inside each half.
